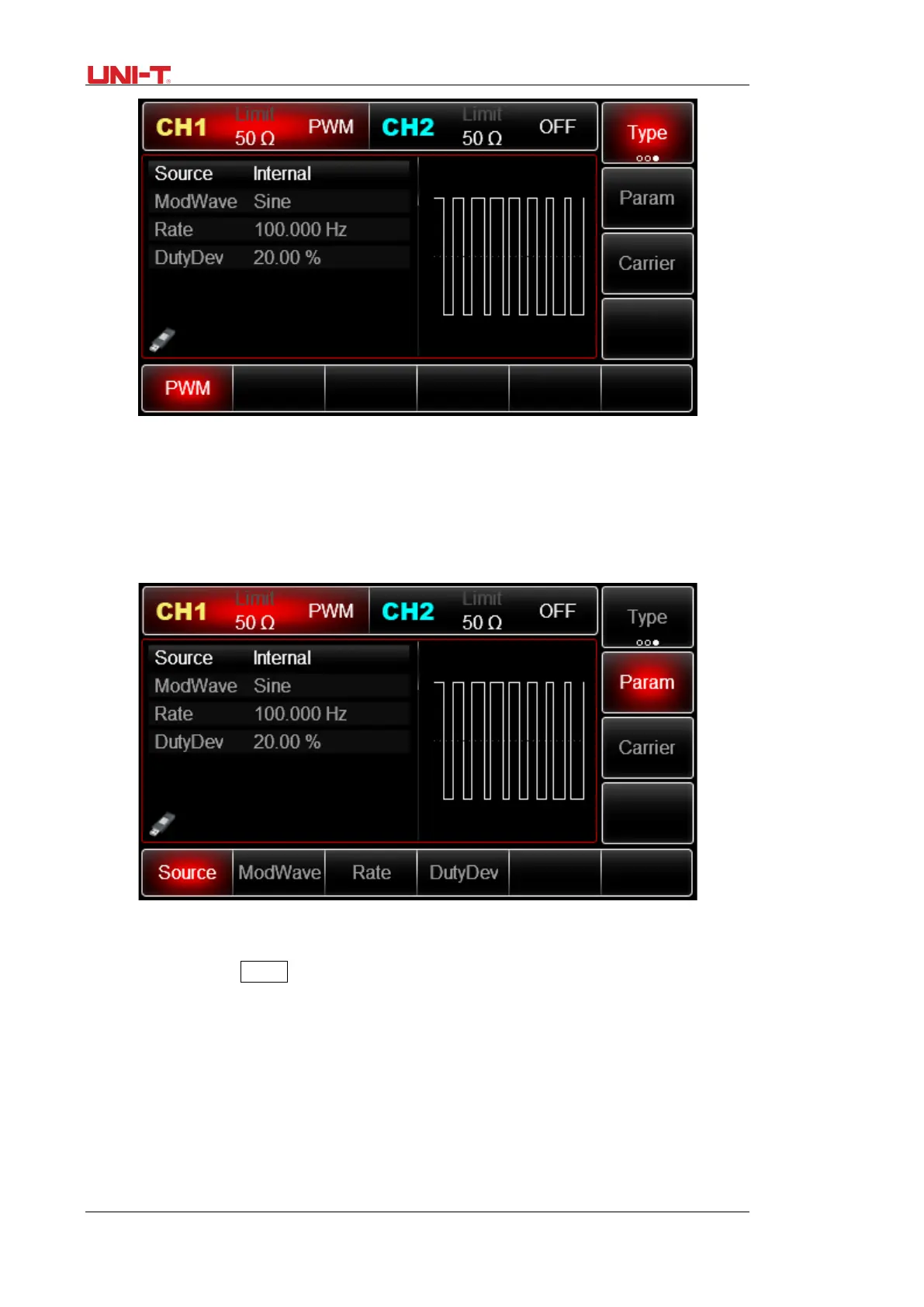

Figure 3 -23 Select PWM function
2) Set modulation signal parameters
Set with multi-functional knob and direction key after using PWM function. You can also press
corresponding soft keys of function on the above interface for using PWM function, when the
interface below will pop up. To set some parameter, press corresponding soft key, input the
required value and select the unit.
Figure 3 -24 Set modulation parameters
3) Set carrier signal parameters
Press soft function key Carrier to enter the interface for setting carrier parameters in the interface
for using PWM function.
