UTG2000B Series 97
Figure 3 -39 Select SWEEP function
1) Select frequency sweep waveform
After linear frequency sweep function is used, press Carrier → Type →
Square to select
frequency sweep waveform, when the interface below will pop up:

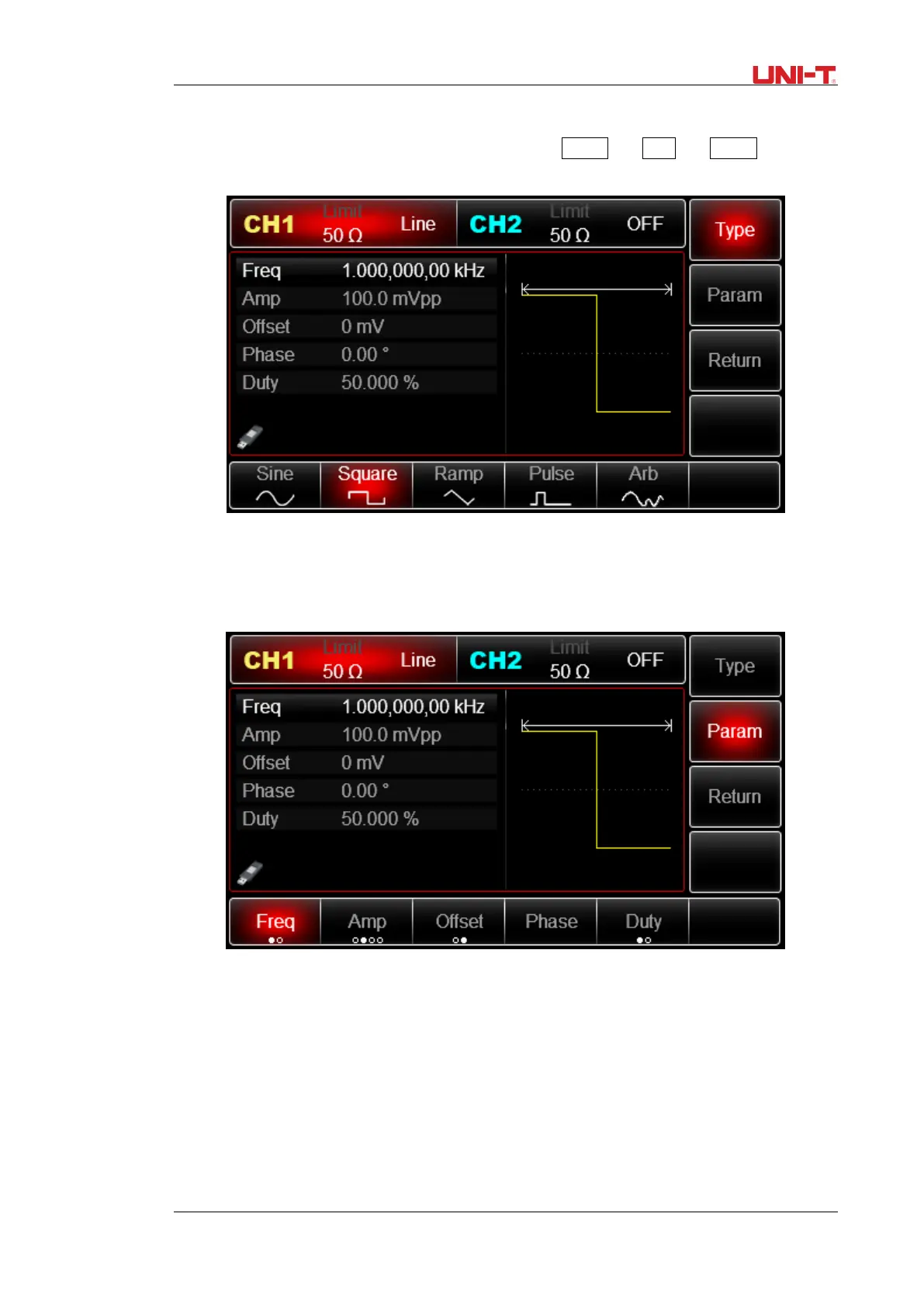

Figure 3 - 40 Select frequency sweep waveform
2) You can set amplitude with multi-functional knob and direction key. You can also press
corresponding soft function keys again, when the interface below will pop up. To set some
parameter, press corresponding soft key, input the required value and select the unit.
Figure 3 -41 Set waveform amplitude
3) Set starting/stop frequency, frequency sweep time, trigger source and edge
Press Return to return to the interface below after selecting frequency sweep waveform and
relevant parameters:
