Programable DC Electronic Load User Manual
36
interface.
2. Move the cursor to the needed setting position by pulse knob, and press the Enter
button to change the parameter (the parameter changes from yellow to white)
by keyboard or pulse knob. Press the Enter button again to confirm. At this time,
the set value changes from white to yellow.
3. Other parameters can be modified in a similar way.
4. Press the ON button, the electronic load starts to load, and the indicator light below
the button lights up. If users need to stop the load, press the ON button again, and the
running indicator light goes out.
5. Press [Curve] to view the curve of battery discharge when the test is over. (Note:
Users can’t view the curve during the test.)
4.2.7 Load Effect
The load effect mode can carry out loading under 3 different load conditions (10%, 50%,
and 100%), and continue the load for a preset time (5s), and then record the voltage
under different loads. Finally, calculate the load regulation rate, △V and other values
according to the formula.

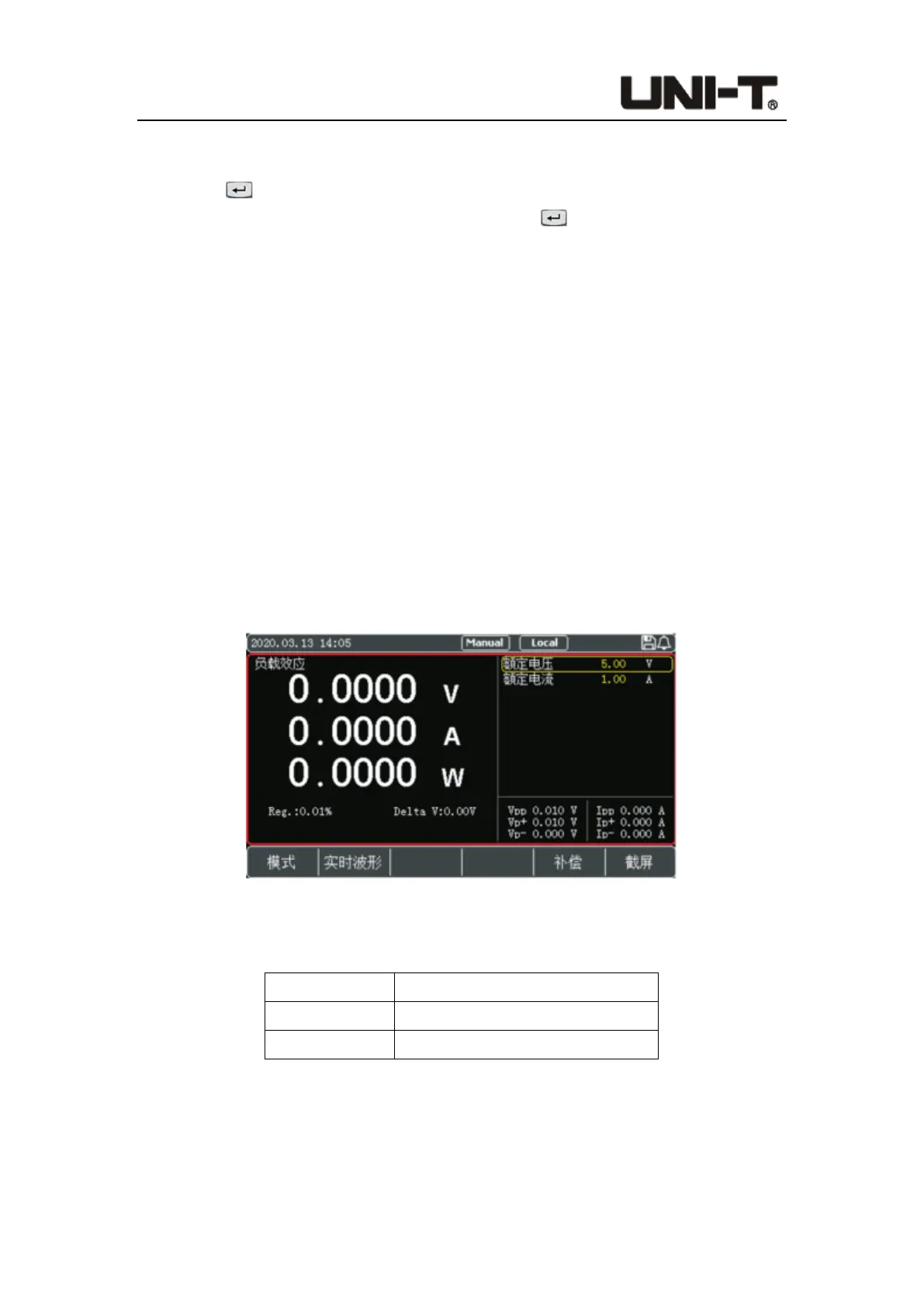

Figure 4-2-7-1 Interface of Load Effect Mode
Parameter setting in load effect mode:
Parameter Description
Rate voltage Set the rated voltage of the load
Rate current Set the rated current of the load
Formula: Vmax=Vdc@Imin, Vmin=Vdc@Imax, △V=Vmax-Vmin, Regulation=△V/Vset
Before the load effect test, input the rated voltage and rated current, and then press ON to
enter the test. At this time, the load will be loaded according to 3 different loads in turn,
