Programable DC Electronic Load User Manual
47
5-1-2, it is the 7.500V load success interface (the maximum value of Vset in the left box
should be slightly less than 9V to load successfully).
5. In the test operating interface, users can see the operating process and result data,
such as Time, Vpp, etc.
6. After pressing the ON button on the panel, press the [EXIT] button to exit the fast
charge mode and return to the main measurement interface.
5.2 QC3.0 Test
Steps to enter the QC3.0 test interface:
1. Press the power button to turn on the electronic load. In the main measurement
interface (the default main measurement interface is CC mode when the instrument is
turned on), press the soft key [QC3.0] at the bottom of the screen to enter the <QC3.0>
display interface. If it is not on the main measurement interface , users can press the
button [Mode], then select the soft key [Fast Charge] to enter the fast charge
horizontal bar selection interface, and finally enter the <QC3.0> display interface by
pressing the soft key [QC3.0].
2. After entering the QC3.0 mode interface, the electronic load will automatically have a
handshake with the measured object:
During the handshake/operating process, the indicator at the top right of the screen is
red, otherwise it is white.
If the handshake is successful, the status will be displayed as [OK], as shown in the
upper right corner of Figure 5-2, otherwise it will be displayed as [Err].

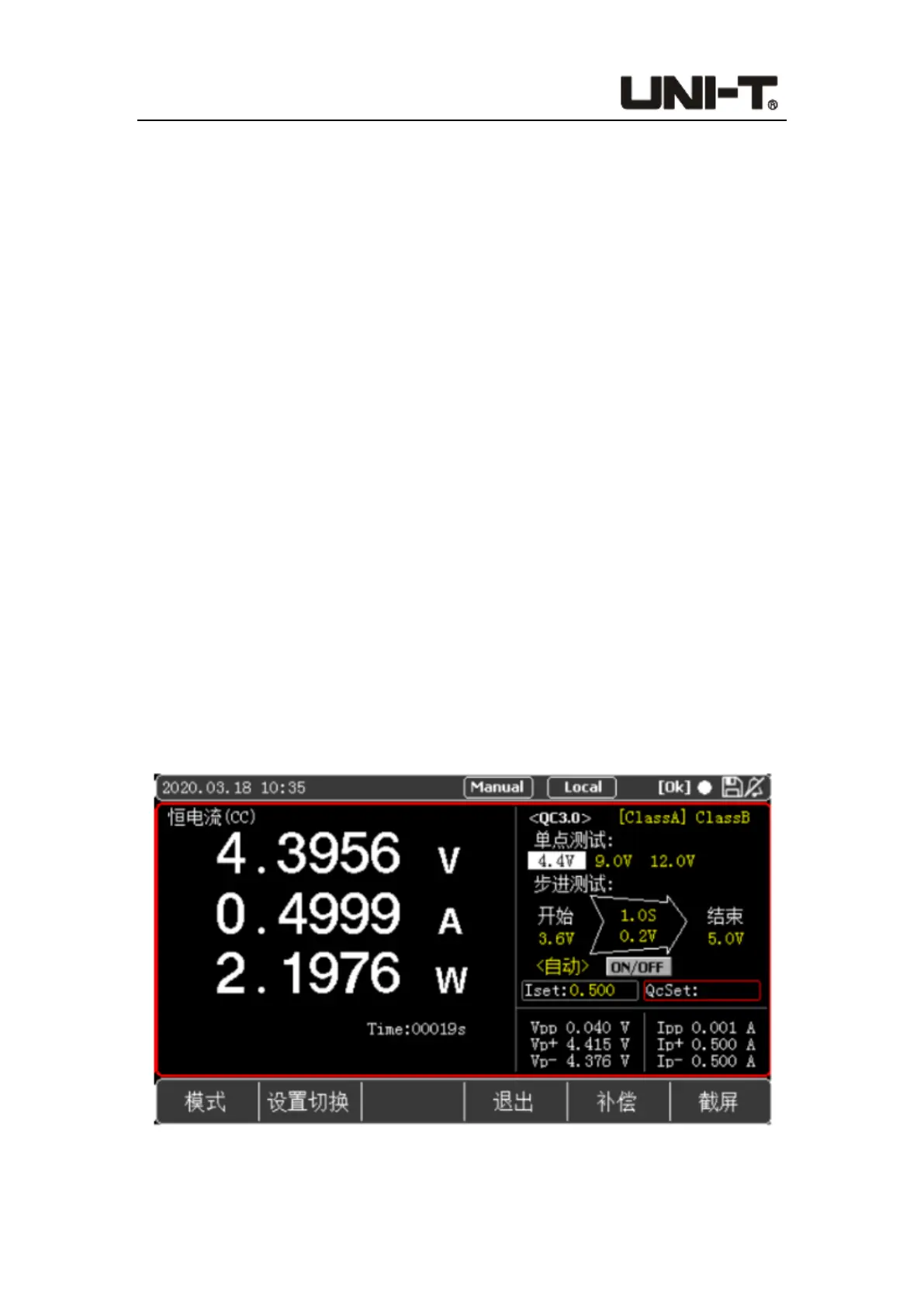

Figure 5-2 <QC3.0> Setting and Display Interface
