5.4 PD2.0/3.0 Test
Steps to enter the PD2.0/3.0 test interface:
1. Press the power button to turn on the electronic load. In the main measurement
interface (the default main measurement interface is CC mode when the instrument is
turned on), press the soft key [PD3.0] at the bottom of the screen to enter the
<PD2.0/3.0> display interface. If it is not on the main measurement interface , users
can press the button [Mode], then select the soft key [Fast Charge] to enter the fast
charge horizontal bar selection interface, and finally enter the < PD2.0/3.0> display
interface by pressing the soft key [PD3.0].
2. After entering the PD2.0/3.0 mode interface, the electronic load will automatically
have a handshake with the measured object:
During the handshake/operating process, the indicator at the top right of the screen is
red, otherwise it is white.
If the handshake is successful, the status will be displayed as [OK], as shown in the
upper right corner of Figure 5-4-1, otherwise it will be displayed as [Err].

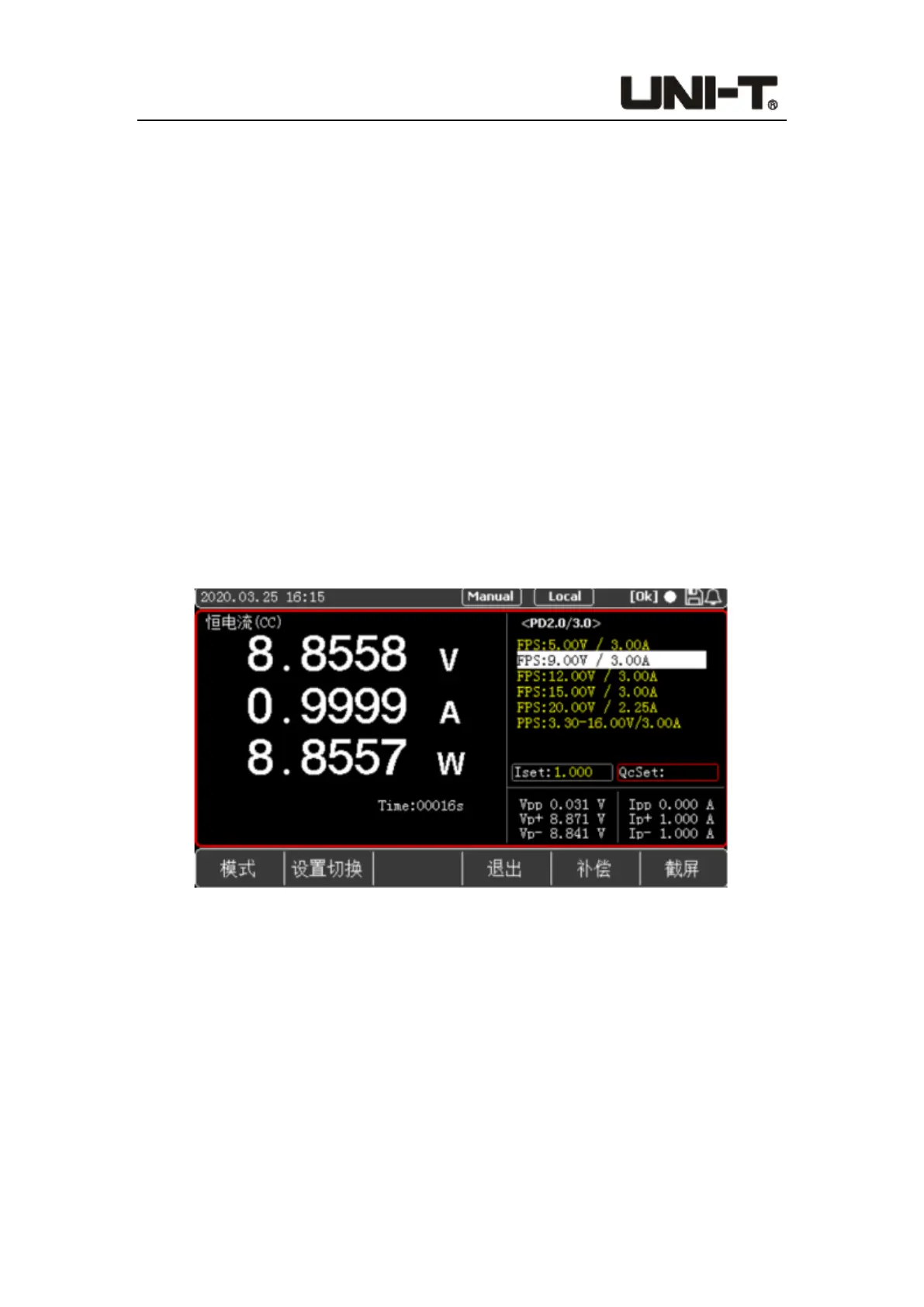

Figure 5-4-1 < PD2.0/3.0> Setting and Display Interface
