UniCarriers 1F1 - Hydraulic Oil Level; Refilling Hydraulic Oil; Steering Wheel Play

98

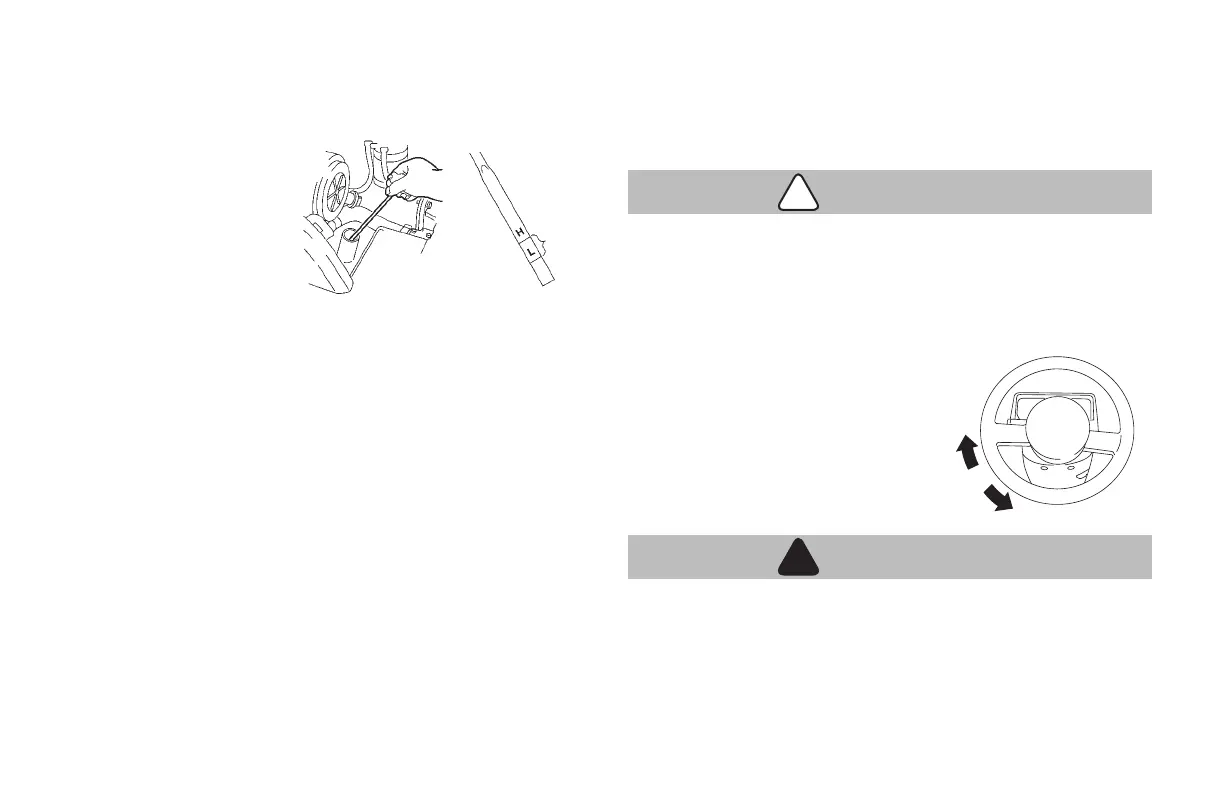

HYDRAULIC OIL LEVEL
1. Check the oil level in the hydraulic oil tank.
NOTE:
For correctly checking
the hydraulic oil level,
park the lift truck on level
ground and stand the mast
vertically with the forks
lowered to their lowest limit
beforehand.
2. Visually check for oil leakage.
3. Remove the hydraulic oil ller cap located on the right side of the
operator's seat.
4. Wipe down the level gauge with a clean cloth and reinsert the level
gauge into the hydraulic oil ller and pull it out again.
5. Make sure that the uid level is within the proper range.
6. If uid is insufcient, rell with the specied uid so that the level
gauge reads the proper range.
REFILLING HYDRAULIC OIL
Remove the hydraulic oil ller cap. While checking the hydraulic oil level
with the level gauge, pour the specied hydraulic oil into the oil ller until
the oil level is in the proper area (refer to page 128).
CAUTION
!
• Do not use any hydraulic oil other than those specied by
the OEM, otherwise it may cause not only deterioration in the
performance of the lift truck but could result in an accident.
• Carefully add the hydraulic oil so as not to mix dust and
foreign substances in the oil.
STEERING WHEEL PLAY
Turn the steering wheel to the left and
right. A play in the circumference of less
than 30 mm (1.18 in) at idling is normal.
WARNING
!
• If there is excessive play or looseness, have the steering
wheel adjusted by your Local Authorized Dealer.
Proper
area
Free play
