UniCarriers 1F1 - Lubrication Chart

127
Hydraulic Oil Tank
Suction Filter
Wheel Bearing
Air Cleaner
Torque Converter (AT)
Micron Filter
1
5
8
4
4
Tie Rod Pin
King Pin
Gasoline Engine
(500 hours)
AT Fluid Filter
Wheel Bearing
Reservoir
Differential Case
7
6
8
8
3
9
5
8
10
4
4
5
5
5
Engine Oil Filter
(500 hours)
Fuel Strainer
Tilt Cylinder Pin
Universal Coupling
Mast Support Bushing
Liner
Thrust Liner
Lift Chain
Every 12 Months
(2,400 hours)
Every 6 Months
(1,200 hours)
Every 4 Months
(500 hours)
Every 3 Months
(600 hours)
8
2
Diesel Engine
(500 hours)

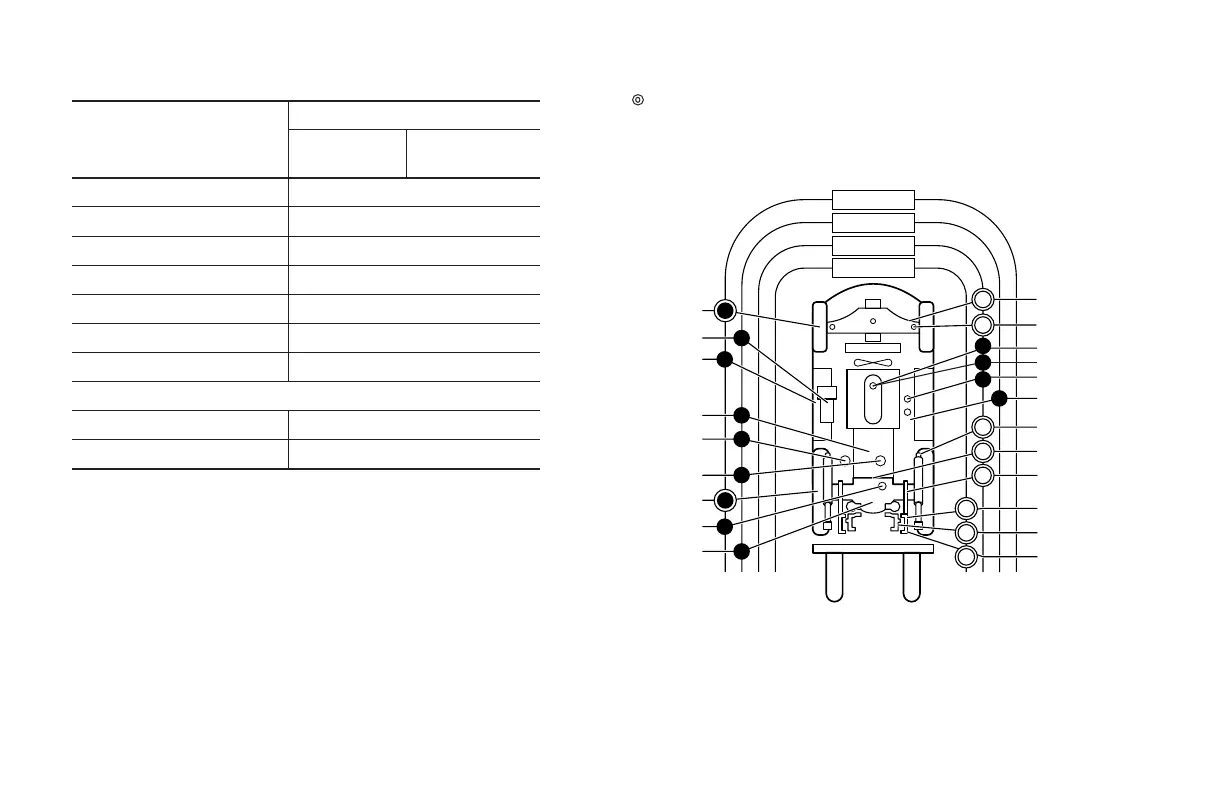

LUBRICATION CHART
Item
Suitable Oil
Below
16°C (60°F)
Above
16°C (60°F)
 Gasoline Engine Oil
Refer to Page 128
 Diesel Engine Oil
Refer to Page 128
 Gear Oil
Refer to Page 128
 W.B. Grease
NLGI No. 2
 Chassis Grease
NLGI No. 1
 A/T Fluid
Dexron 3 or M2C-33E-F
 Hydraulic Oil
I.S.O. VG32
 Replace or Clean Element
 Brake Fluid
Dot 3 (F.M.V.S.S. No. 116)
 Lift Chain
Refer to Page 128
 Lubricate/Inspect
(
stands for "Lubricate at symmetrical positions)
 Change
( stands for "Change at symmetrical positions)
