Handset Description
Display Icons and Text
The Calls menu contains call lists and call services. Call services
4
is configured
in the WinPDM/WSG DM.
The Shortcuts menu contains shortcuts for the soft keys, hot keys, navigation
keys, and the multifunction button.
The menu contains pre-programmed functions.
The Settings menu contains personal handset settings such as changing the ring
volume, selecting language, etc.
The Profiles menu allows up to four different profiles to be added .
The Contacts menu contains all names/numbers in the contact list. In addition, a
company phonebook with up to 1000 entries can be downloaded to the handset
via the WinPDM/WSG DM. A central phonebook can also be accessed from the
Contacts menu.
Display Icons and Text
Functions and settings available to the user are shown as icons and text on the display. This
section describes the status and system icons and their functions.

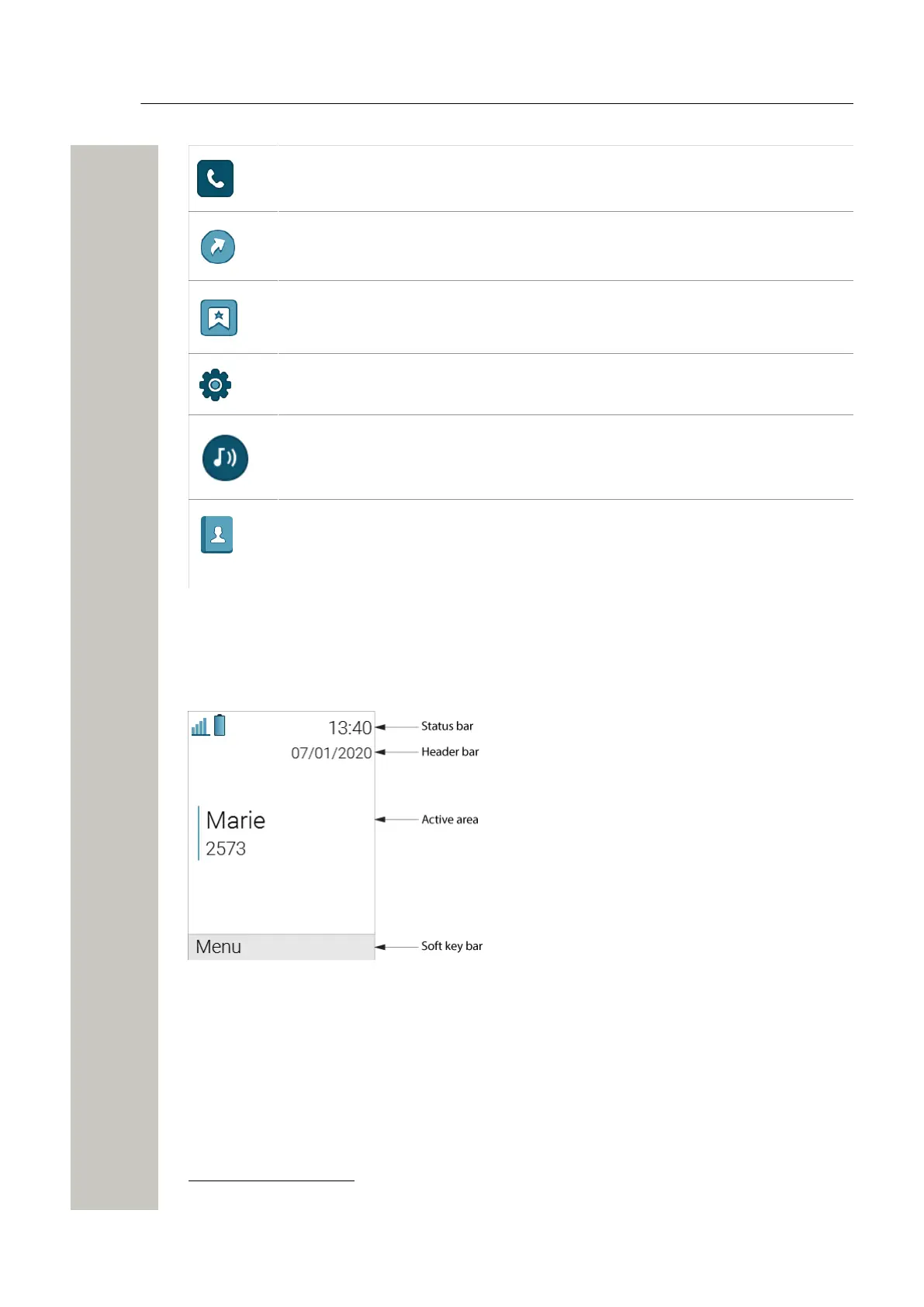

Figure 2: Example of the screen in Idle mode
Status bar shows icons that give the user information about signal strength, battery status,
sound off, missed calls, new messages/voice mail, key lock, phone lock, and time. This row is al-
ways visible on all screens.
Header bar displays headset connection, Bluetooth connection/Bluetooth headset connection,
man-down and no-movement functions, and the current date.
Active area is used for information such as the name of the system to which the handset is con-
nected to. A user identity provided by the system and/or an Owner ID can also be displayed if
4
Access to call services is system-dependent.
A31003-M2000-U109-01-7619, 29/04/2020
OpenScape WLAN Phone WL4, User Manual 11
