Installing / Replacing your iColor coater - UV Lamp
1. Turn the Main Power disconnect to the OFF position.
2. Remove Control Panel mount and unplug control panel (OP Side).
3. Remove both side covers using a 3mm Allen key.
4. Take care to unplug the Coating Pump (OP Side).
5. Lift the rear UV chamber safety cover to access the UV reector & bulb.
6. It is recommended that you also remove the black heat sink for additional access to the UV bulb.
7. Disconnect the bulb wires from the terminal block, on each side, using a Flat Head screwdriver.
8. Using a 4mm Allen key, remove UV bulb access cover on both OP & NOP side.

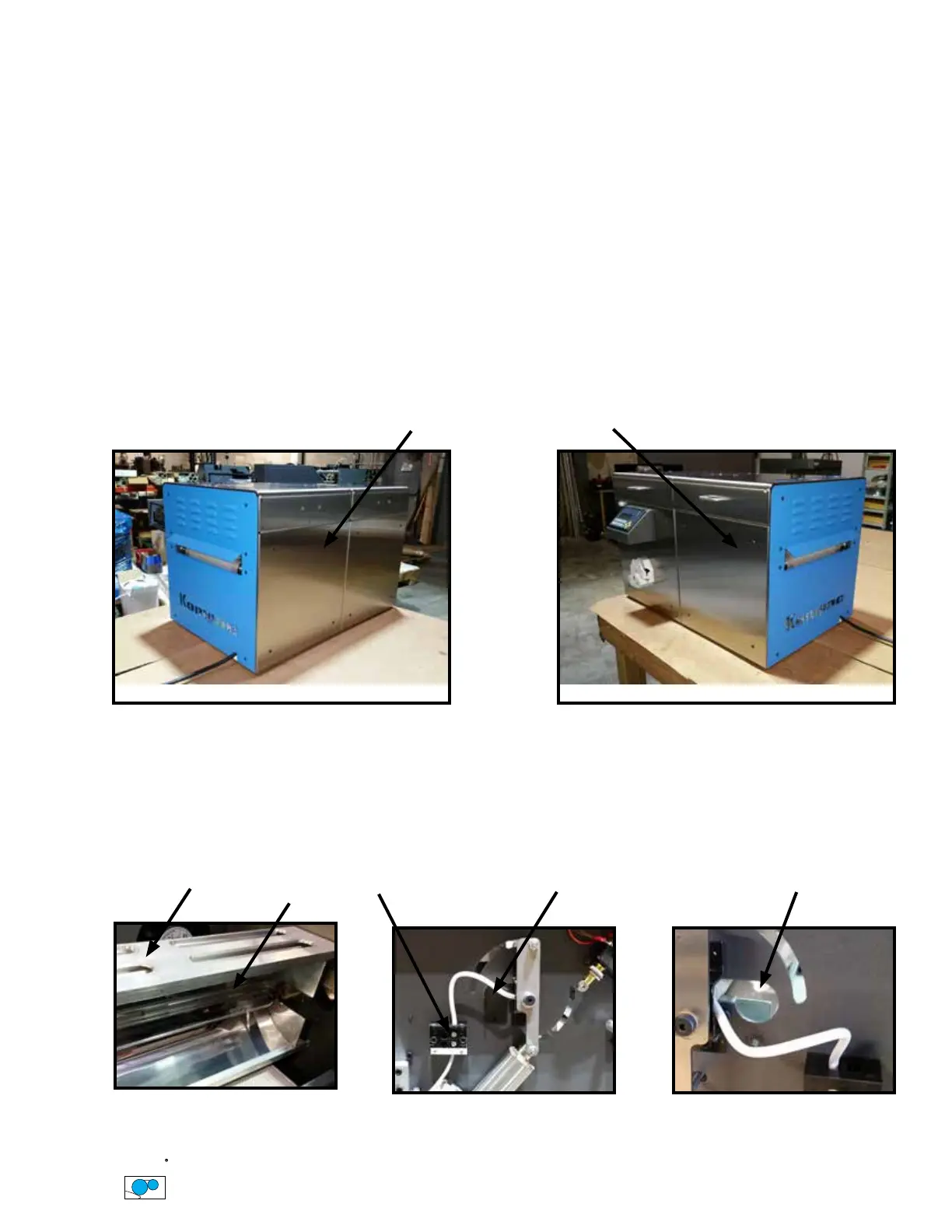

Figure - Remove OP Side CoverFigure - Remove NOP Side Cover
Side Cover
Side Cover
Figure - Bulb Disconnect
(UV bulb access cover)
Figure - Bulb Disconnect
(UV bulb access cover removed
Bulb Disconnect
Figure - Rotated UV Reector /
UV Bulb
Rotated UV Reector
Bulb Access Cover
UV Bulb Access Hole
UV Bulb
