Universal Robots E Series Service Manual

All rights reserved 197 Service Manual e-Series (EN) 1.1.8
Service tool set – 109011

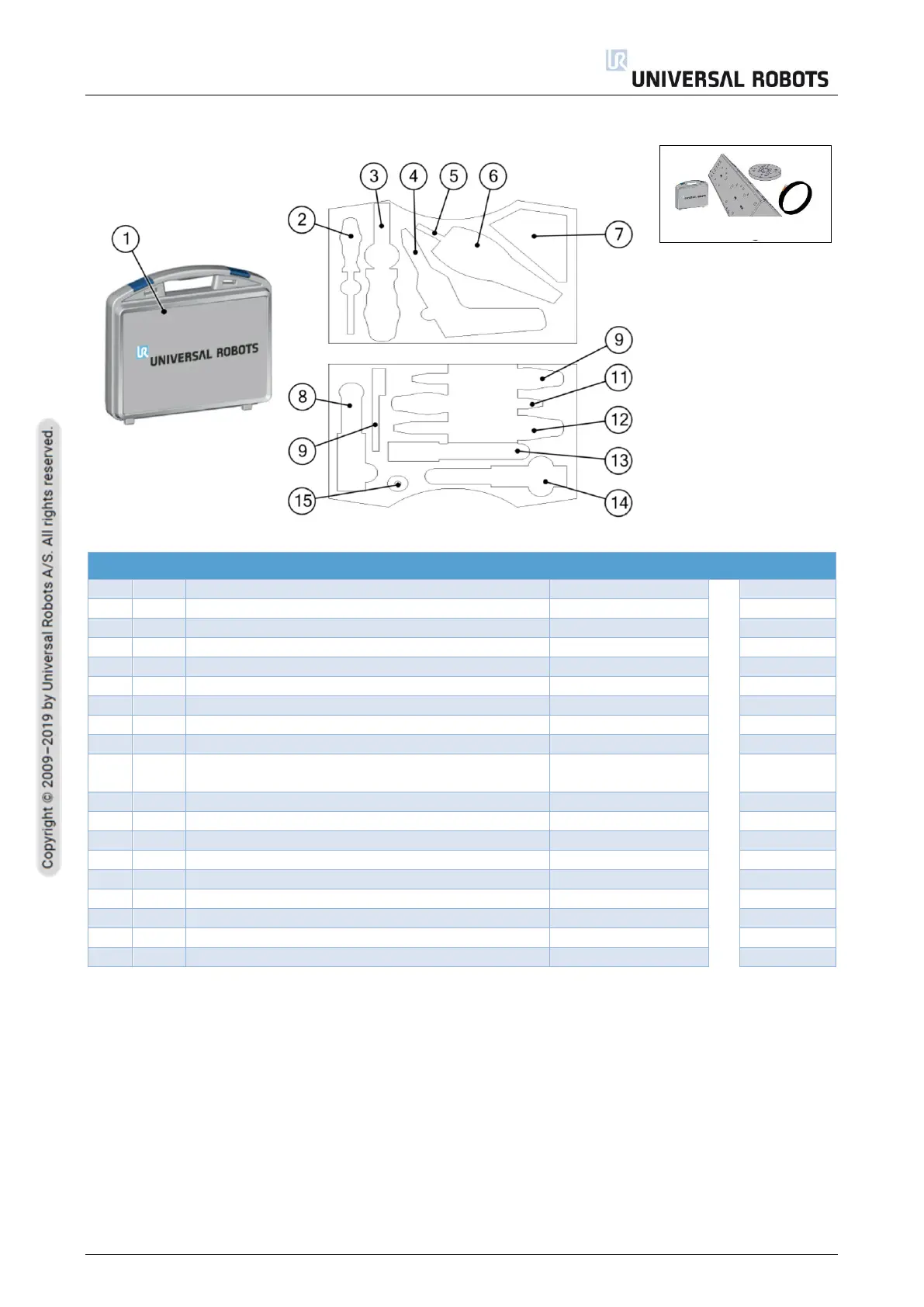

Service Tool set - 109011
NO.
QTY.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
1
Service tool set
109011
197
2
1
Screwdriver Flat 2.5
N/A
N/A
3
1
Multi-bit tool incl. bits
109117
N/A
4
1
Screwdriver hex key 4mm. – 5.0Nm for e-Series
109113
N/A
5
1
Socket bit 10mm. for Control Box
109118
N/A
6
1
Needle nose pliers ESD
109122
N/A
7
1
ESD Wrist band
109180
N/A
7
1
By-pass cable
N/A
N/A
8
1
Torque wrench hex 10.0mm. – 8.0Nm for CB-
Series
109107
N/A
9
1
Spanner 5.5mm.
109101
N/A
9
1
Spanner 7.0mm.
109102
N/A
9
1
Spanner 10.0mm.
109110
N/A
10
1
Torque screwdriver ESD TX8 – 0.4Nm
109114
N/A
11
1
Torque screwdriver ESD TX10 – 1.3Nm
109115
N/A
12
1
Torque screwdriver ESD TX20 – 3.0Nm
109116
N/A
13
1
Torque wrench hex 5.5mm. – 1.3Nm for CB-Series
109105
N/A
14
1
Torque wrench hex 7.0mm. – 2.6Nm for CB-Series
109106
N/A
15
1
Torx TX10 bit for 109114
109120
N/A
