Radial 8 & 88 Operation Reference Manual 49379902 Rev. G
This Document Supports IM-UPS 5.0 and Higher
• Tooling: Select the tooling mounted on the machine.
Tip: To configure the machine for 3.5 mm lead span components,
select 2.5/3.5/5.0MM (13.0 MM).
• Clinch: Select the type of clinch mounted on the machine.
• Sequencer Setup:
From the Number of Sequencer Modules list box, select the total
number of sequencer modules mounted on the machine.
NOTE

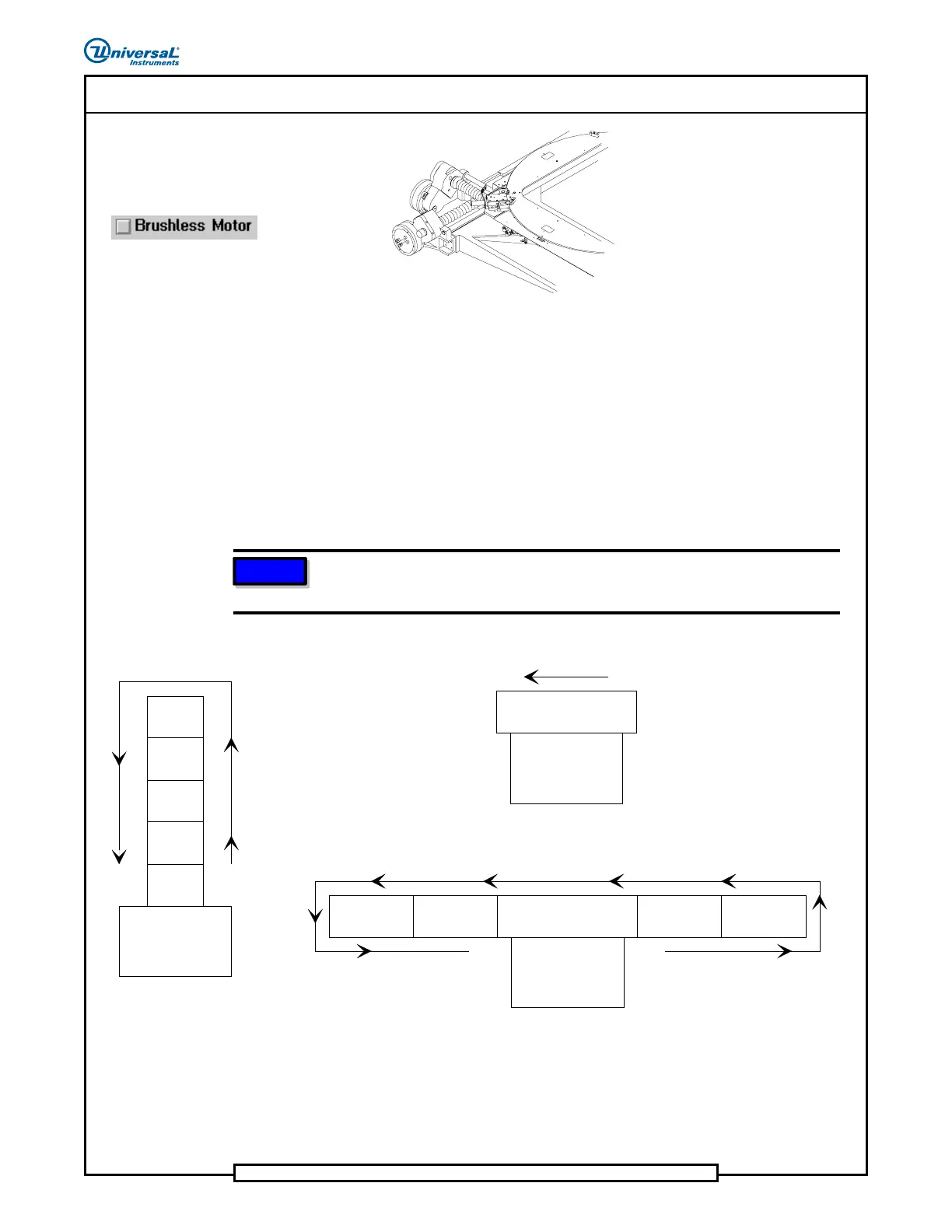

For detailed sequencer module and dispense head location information,
refer to the illustrations.
20 Station
Inserter
20 1
Inline
20 Station
20 Station
Inserter
1
X
Inline
Greater Than 20 Station
80
Station
60
Station
100
Station
X = Number of Dispense Heads
40
Station
Inserter
1
X
Straightback
Up To 100 Stations
20
Station
X = Number of
Dispense Heads
40
Station
60
Station
80
Station
100
Station
