Page 25
Radial 8, 88, HT Feeders (Dispensing Heads) 49668501 Rev. D
This document supports Dual, Triple, and Quad Span Feeder Assemblies (Dispensing Heads)

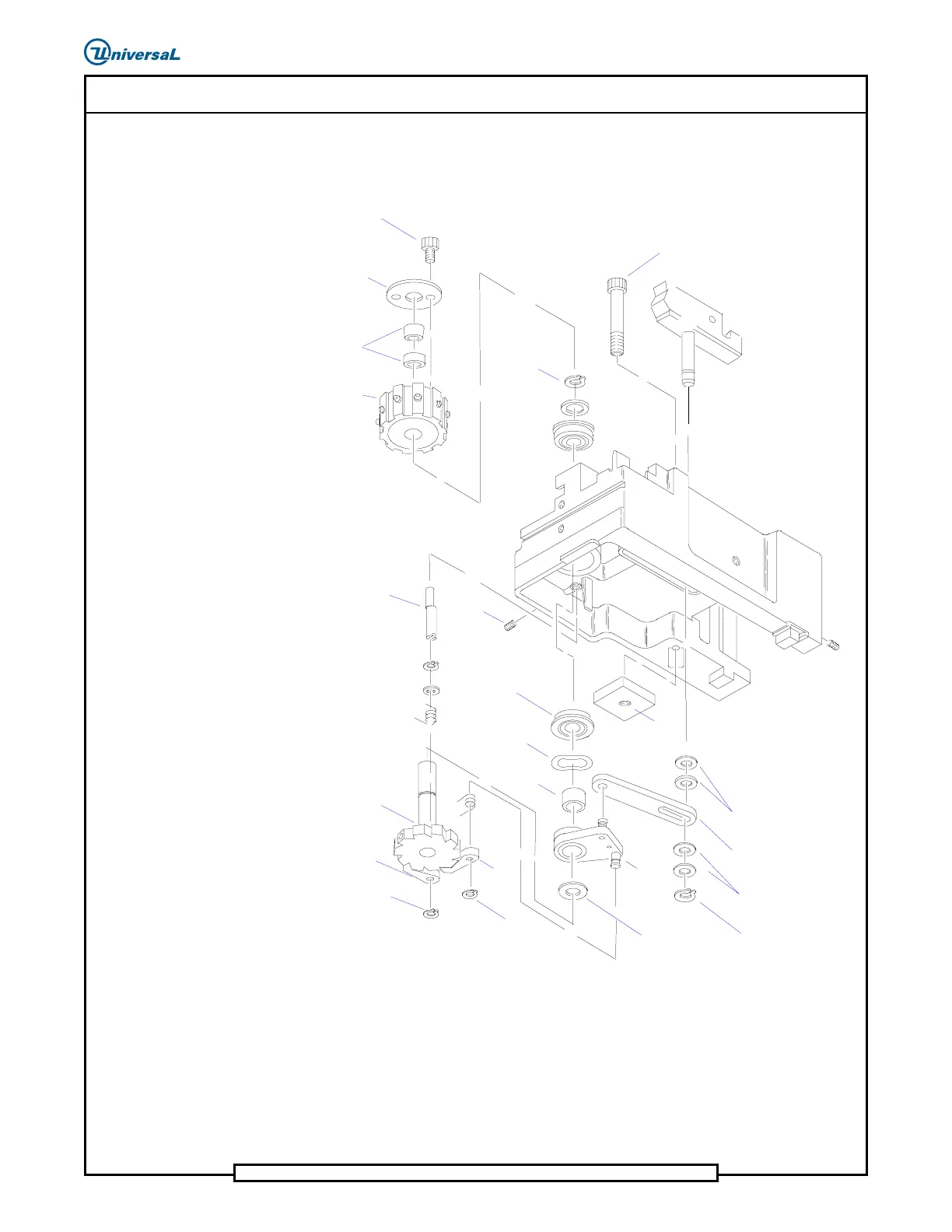

5. Remove the cap screws (23) that secure the clamp plate (24), locking
element (25) and feed wheel (26). Remove these parts from the ratchet
assembly shaft (29).
19
28
23
25
26
34
24
29
33
35
32
31
37
30
21
41
22
41
20
36
38
40
39
6. Remove the retainer ring (28) on the ratchet assembly shaft. This
allows the ratchet assembly (29), cam unit (30), link (22) and
associated parts to be removed from the bottom of the housing (5).
7. The ratchet assembly (29), cam unit (30), pawl (31) and link (22) can
all be disassembled by removing the retainer ring (32) that secure these
parts. The dog (33) and eccentric (34) can be disassembled from the
housing by removing the retainer ring (35) and socket set screw (36)
that secures them.
