5.8 Register relay module M-161
3 s
21
3
4 5
6
7
3 s
NOTE!
Registration of at least one thermostat must
be done before registering a system device.
NOTE!
Make sure all components are connected to
the relay module before registering.
Caution!
Make sure the controller is in run mode.
For information about how to exit to run
mode, see section 10.4 Run mode > Exit to
run mode.

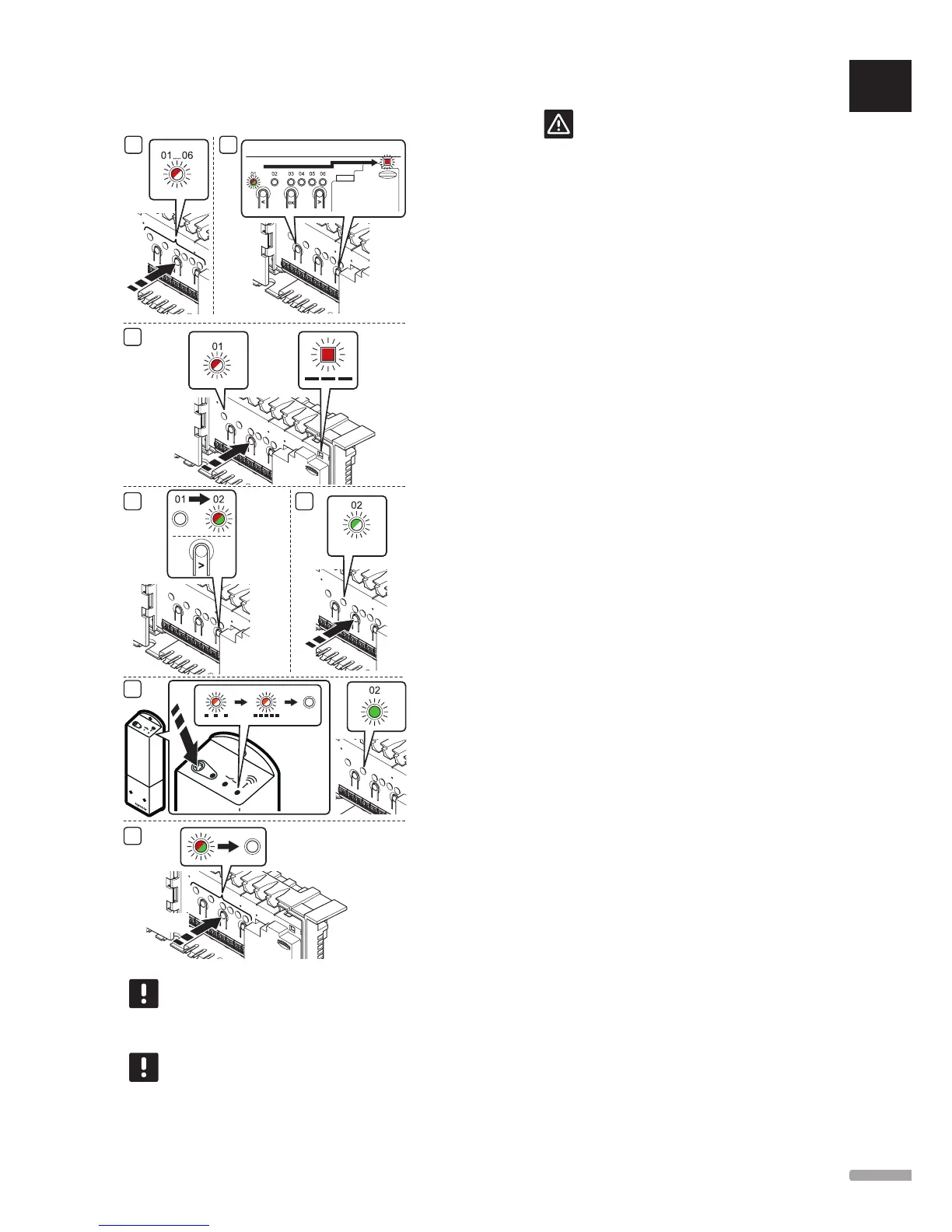

To register the relay module to a controller:
1. Press and hold the OK button on the controller
until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer to the
power LED (LED flashes red).
3. Press the OK button to select system device
registration (power LED). The power LED starts
flashing according to the pattern long blink, short
pause, long blink. Channel 1 starts flashing red.
4. Press the > button to move the pointer (LED flashes
red) to channel 2.
5. Press the OK button to select system device
channel 2 (relay module). Channel 2 LED starts
flashing green.
6. Press and hold the register button on the relay
module until the LEDs on the module start flashing
slowly.
The selected channel LED in the controller turns
fixed green and the LEDS on the relay module start
flashing fast again, to turn off a few seconds later.
7. Press and hold the OK button until the green LEDs
turn off to end registration and return to run mode.
To unregister an already registered relay module, see
section 10.6 Unregister channels in controller.
