Uponor Smatrix Wave User Manual

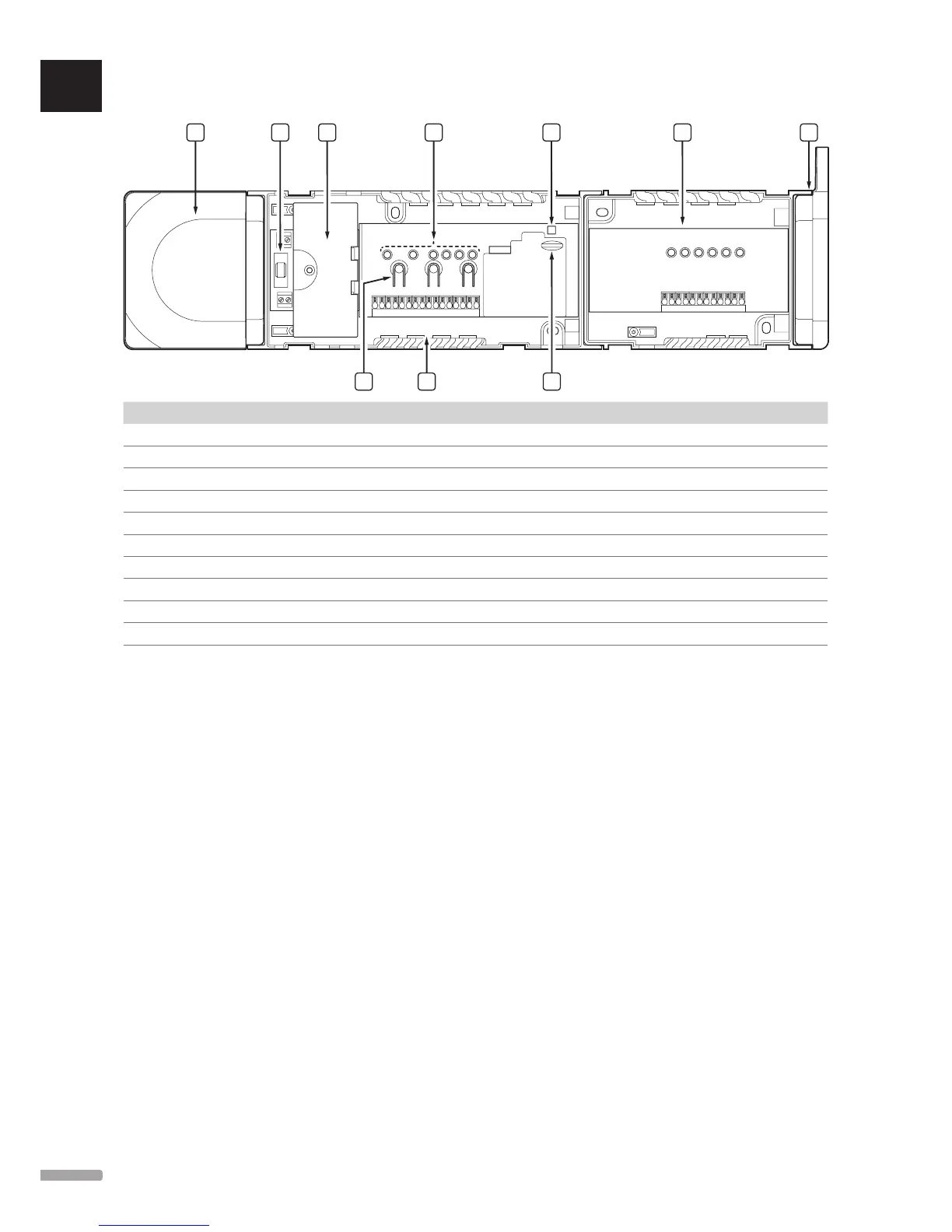

17.3 Controller layout
E H I
FD G
CB JA
Item Description
A Transformer, 230 V AC 50 Hz power module
B Fuse (T5 F3.15AL 250 V)
C Optional inputs and outputs (pump and boiler management, and heat pump connection)
D Channel registration buttons
E LEDs for channels 01 – 06
F Quick connectors for actuators
G MicroSD card (Wave PLUS only)
H Power LED
I Uponor Smatrix Wave Slave Module M-160 (optional)
J Uponor Smatrix Wave Antenna A-165, RJ-45 connector
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
92
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL

Uponor Smatrix Wave Specifications

General

Control	Wireless
Communication	RF 868 MHz
User Interface	Touchscreen
Range	Up to 30m in open space
Battery Life	Thermostat battery life up to 2 years
Operating Temperature	0°C to +40°C
