Uponor Smatrix Wave User Manual

6.10 Register system devices
In addition to room thermostats, the controller can also
be connected to system devices.
Available system devices:
• Touch screen interface (Wave PLUS only), see
section 8 Install Uponor Smatrix Wave PLUS
interface for installation procedure
• Timer (Wave only), see section 7 Install Uponor
Smatrix Wave timer for installation procedure
• Relay module
• Public thermostat with various functions

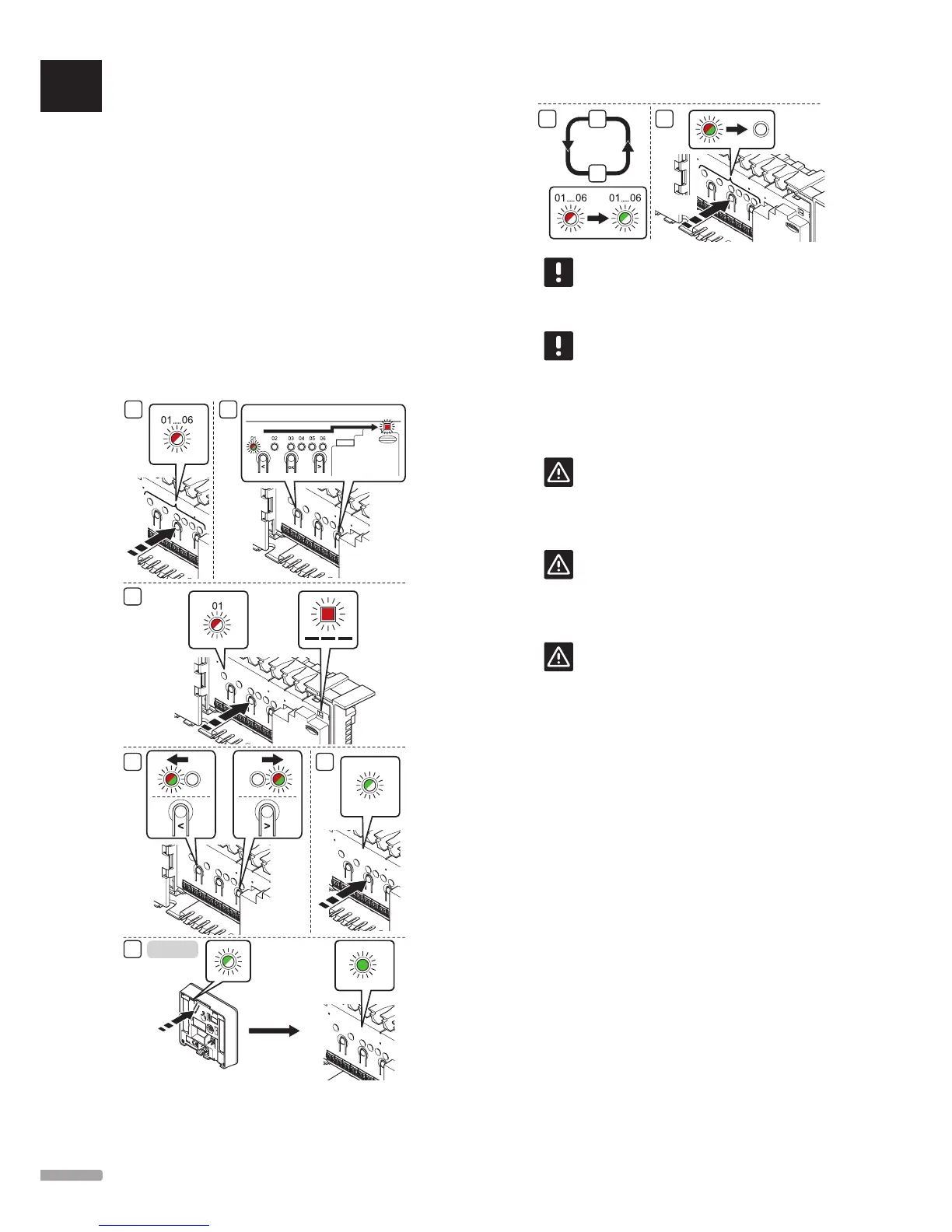

The illustration below shows how to register system
devices to the controller.
3 s
21
3
4 5
T-163
5 s
6
8
4
6
7
3 s
NOTE!
Registration of at least one thermostat must
be done before registering a system device.
NOTE!
If registering a public thermostat T-163 as
a system device with various functions, the
thermostat only acts as a remote unit. It does
not control the room temperature in the room
where it is placed.
Caution!
If more than one controller is available in the
system, register the thermostat as a system
device to the master controller.
Caution!
The DIP switches in public thermostat
T-163 must be set before the thermostat is
registered.
Caution!
Make sure the controller is in run mode.
For information about how to exit to run
mode, see section 10.4 Run mode > Exit to
run mode.
To register system devices in the controller:
1. Press and hold the OK button on the controller
until one of the channel LEDs starts flashing.
2. Use buttons < or > to move the pointer to the
power LED (LED flashes red).
3. Press the OK button to select system device
registration (power LED). The power LED starts
flashing according to the pattern long blink, short
pause, long blink. Channel 1 starts flashing red.
4. Use buttons < or > to move the pointer to the
preferred system channel, see list below.
1 = Touch screen interface (Wave PLUS only)
See section 8 Install Uponor Smatrix Wave PLUS
interface for more information.
1 = Timer (Wave only)
See section 7 Install Uponor Smatrix Wave timer for
more information.
