Uponor Smatrix Wave User Manual

Pos. Uponor designation Description
A
Uponor Smatrix
Transformer A-1XX
(transformer A-1XX)
Transformer module
B
Uponor Smatrix Wave
PLUS Controller X-165
Uponor Smatrix Wave
Controller X-163
Controller
C
Uponor Smatrix Wave
Slave Module M-160
(slave module M-160)
Slave module
D
Uponor Smatrix Wave
Antenna A-165 (antenna
A-165)
Antenna
E
Uponor Smatrix Wave
PLUS Interface I-167
Interface
F
Uponor Smatrix Wave
Thermostat Prog.+RH
T-168
Programmable digital
thermostat with
relative humidity sensor
G
Uponor Smatrix Wave
PLUS Thermostat D+RH
T-167 (digital thermostat
T-167)
Digital thermostat with
relative humidity sensor
H
Uponor Smatrix Wave
Thermostat Dig T-166
Digital thermostat
I
Uponor Smatrix Wave
Timer I-163 (timer I-163)
Timer
J
Uponor Smatrix Wave
Thermostat Standard
T-165/T-165 POD
Standard thermostat
with or without print
on dial
K
Uponor Smatrix Wave
Thermostat Public T-163
Public thermostat
L
Uponor Smatrix Wave
Relay Module M-161
(relay module M-161)
Relay module
Controller
The controller operates the actuators, which in turn
affect the flow of the supply water, to change the
indoor temperature using information transmitted from
registered thermostats and system parameters.
Up to six channels and eight actuators can be operated
by the controller, which is typically located near the
hydraulic system manifolds.
The illustration below shows the controller with the
transformer module, antenna and actuators.
24 V
24 V
24 V
Caution!
Only 24 V Uponor actuators are compatible
with the controller.
Uponor Smatrix Wave PLUS Controller X-165
Main characteristics:
• Integrated Dynamic Energy Management functions
such as autobalancing, comfort setting, room
bypass, and supply temperature monitoring
(requires an interface).
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room
thermostats.
• Heating/cooling function (advanced), and/or
Comfort/ECO mode switched by dry contact, public
thermostat or touch panel interface.
• Separate relays for control of pump and boiler.
• Integrated heat pump module (only available in
selected countries, contact a local Uponor office for
more information).

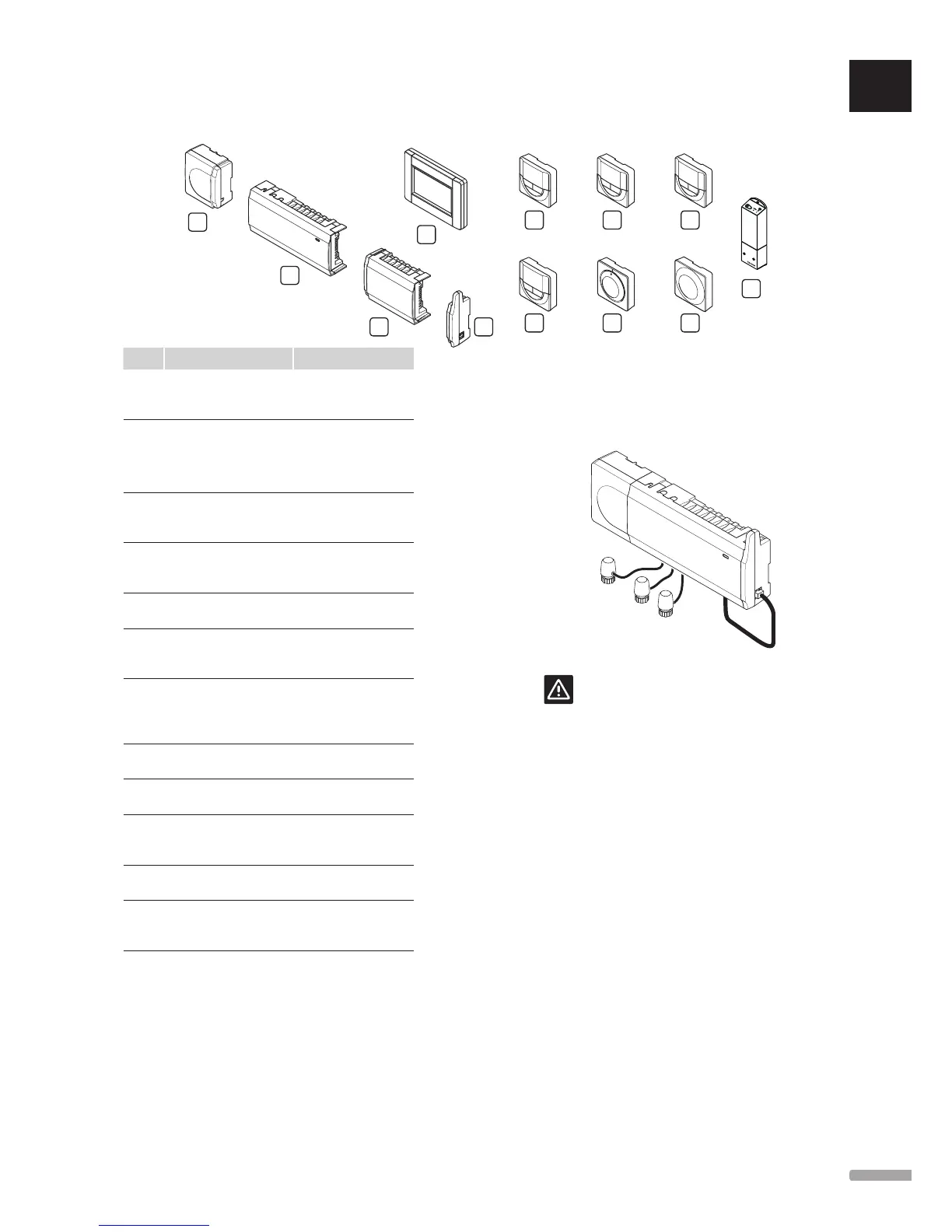

3.3 Uponor Smatrix Wave/Wave PLUS components
