Uponor Smatrix Wave User Manual

• U@home connectivity via touch screen.
See separate documentation.
• Valve and pump exercise.
• Logging, back up and updates via microSD card.
• Relative humidity control (requires an interface).
• Control of combined underfloor heating/cooling
and ceiling cooling (requires an interface).
• Lower indoor temperature with night set back (for
all rooms using an interface, for a single room using
the digital thermostat T-168).
Options:
• The controller can be expanded with a slave module
which adds an extra six channels and six actuator
outputs.
• Connect up to four controllers into one system
(requires an interface).
• Modular placement (detachable transformer and
antenna).
• Cabinet or wall mounted (DIN rail or supplied
screws).
• Free placement and orientation when installing
the controller (except the antenna which must be
installed vertically).
Uponor Smatrix Wave Controller X-163
Main characteristics:
• Integrated Dynamic Energy Management functions
such as autobalancing.
• Electronic control of actuators.
• Connection of maximum eight actuators (24 V).
• 2-way communication with up to six room
thermostats (channels).
• Heating/cooling function (basic) switched by dry
contact or public thermostat.
• Separate relays for control of pump and boiler.
• Valve and pump exercise.
• Basic relative humidity control.
• Lower indoor temperature with night set back (for
all rooms using a timer, public thermostat T-163, or
standard thermostat T-165, for a single room using
the digital thermostat T-168).
Options:
• The controller can be expanded with a slave module
which adds an extra six channels and six actuator
outputs.
• Modular placement (detachable transformer and
antenna).
• Cabinet or wall mounted (DIN rail or supplied
screws).
• Free placement and orientation when installing
the controller (except the antenna which must be
installed vertically).
Components of the controller

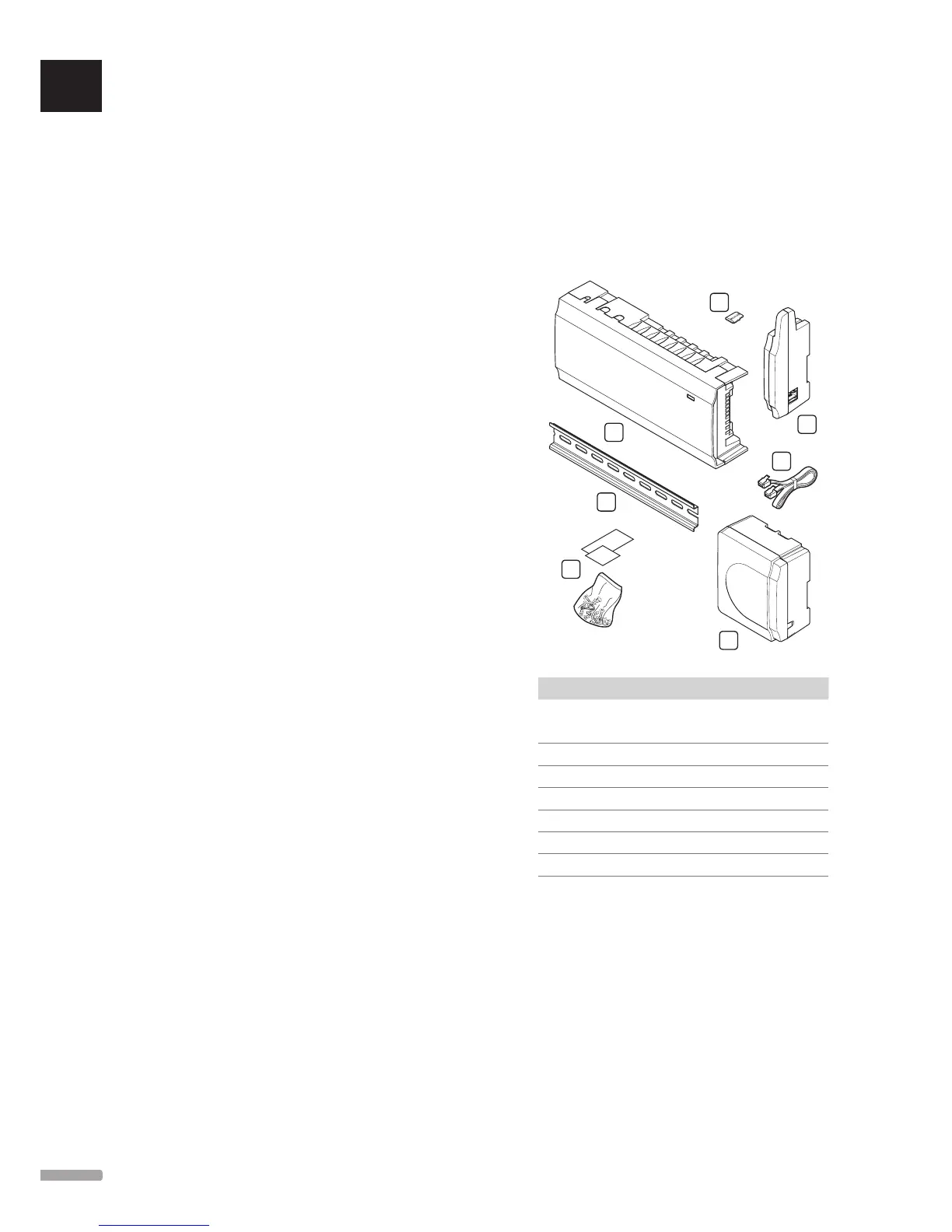

The illustration below shows the controller and its
components.
A
C
E
B
D
G
F
Item Description
A Uponor Smatrix Wave PLUS Controller X-165
Uponor Smatrix Wave Controller X-163
B Antenna
C Transformer
D Antenna connection cable
E MicroSD card
F DIN rail
G Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
8
UPONOR SMATRIX WAVE/WAVE PLUS · INSTALLATION AND OPERATION MANUAL
