Interface (Wave PLUS only)
Uponor Smatrix Wave PLUS Interface I-167 is a touch
screen interface that can be connected through radio
transmission to controller X-165.
The interface acts as a link between the user and
the controller(s) running in the system, displaying
information and enabling simplified programming of
all relevant system settings. It can also be detached
from the wall for easy use on other locations more
comfortable (e.g. couch).
The Uponor Smatrix Wave PLUS system can be operated
without the interface, but with reduced functionality (in
example: many of the main characteristics listed below
cannot be used).
NOTE!
Uponor Smatrix Wave PLUS systems without
an interface can only operate with reduced
functionality.
Uponor Smatrix Wave PLUS Interface I-167
Main characteristics:
• Touch screen interface.
• Display information and change settings of up to
four controllers running within one system.
• Adjust temperature setpoints of registered
thermostats within the system.
• Installation setup wizard when installed for the first
time or after a factory reset.
• User friendly menu system available in several
different languages.
• Backlit display.
• Temperature setback programs for each connected
thermostat.
• Limitations of maximum/minimum temperature.
• Schedule temporary lowering of temperature during
holiday.
• Automatic change between summer- and winter
time.
• Diagnostic function detecting if a room thermostat
is installed in the right room (room check).
• Possibility to automatically open up to two rooms
per controller when other rooms are closed to
maintain a minimum flow (room bypass).
• System diagnostic (alarms etc).
• Visualize trends by e.g. comparing setpoint with
room temperature etc.
• Advanced cooling settings.
• Change language and/or update the software with
microSD card.
• U@home connectivity (requires a remote module).
• Control of accessories (outputs etc).

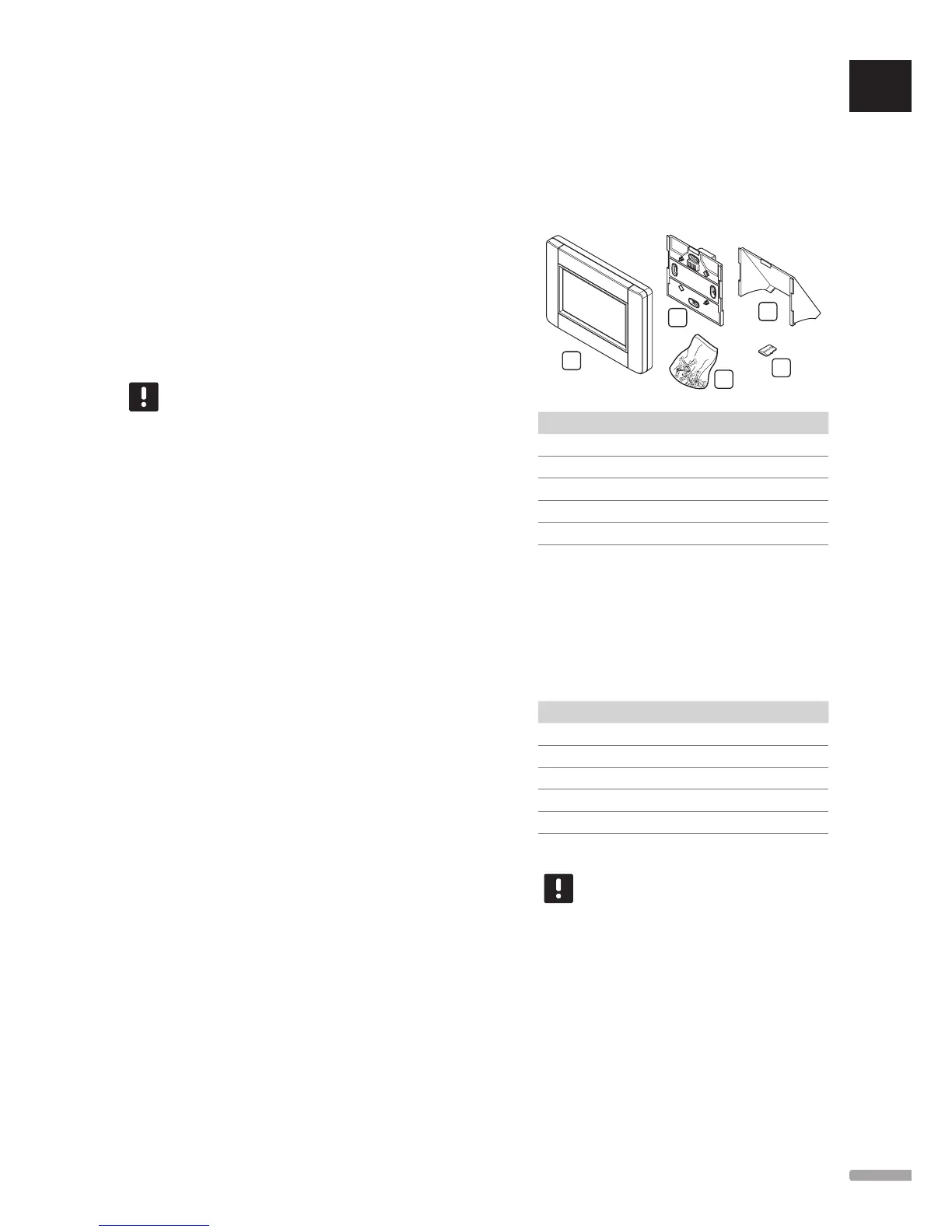

Components of the interface
The illustration below shows the interface and its
components.
A
C
B
D
E
Item Description
A Uponor Smatrix Wave PLUS Interface I-167
B Wall bracket with power supply
C Table stand
D Mounting material
E MicroSD card
Thermostats
The thermostats communicate with the controller
through radio transmissions and are used either
individually or in combination with each other. They all
use the same type of battery.
The following Uponor Smatrix thermostats can be used
in the system:
Thermostat Wave PLUS Wave
Standard T-165 X X
Digital T-166 X* X*
D+RH T-167 X* X*
Prog.+RH T-168 X* X*
Public T-163 X X
* With reduced functionality
NOTE!
The thermostat is affected by the
temperature of the surrounding surfaces as
well as the ambient air temperature.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
9
UPONOR SMATRIX WAVE/WAVE PLUS
· INSTALLATION AND OPERATION MANUAL
