Uponor SmatrixMove User Manual

Access terminal blocks

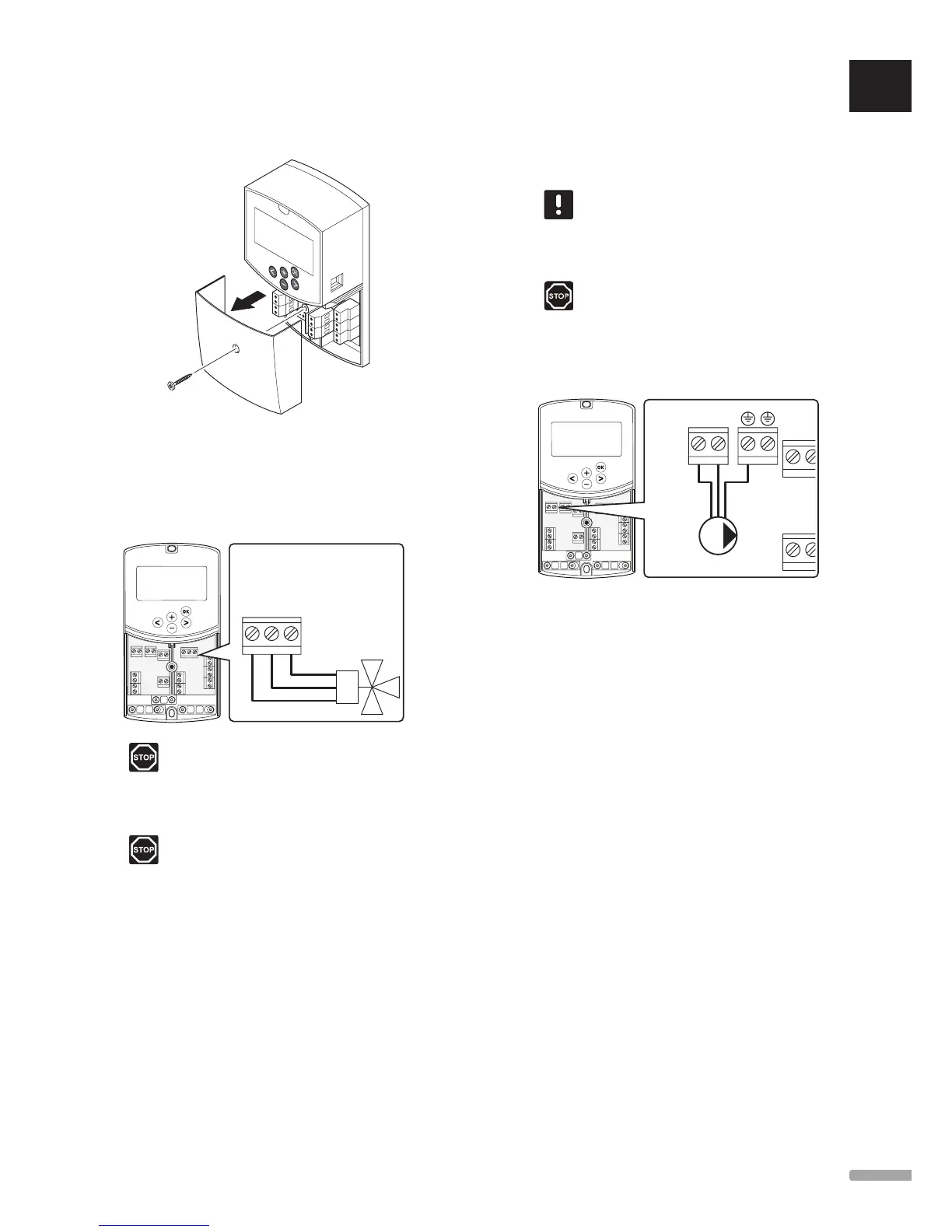

To get access to the terminal blocks on the controller,
remove the cover, secured by a single screw.
Connect actuator to controller
The controller can operate a mixer valve to control the
supply temperature.
The illustration below shows the mixer valve actuator
connected to the controller.
Open Common Close
Warning!
There is 230 V (5 A) power in the controller
to supply the actuator when the controller is
connected to the mains.
Warning!
Electrical installation and service behind
secured 230 V AC covers must be carried
out under the supervision of a qualified
electrician.
1. Ensure that the power is disconnected from both
the controller and the actuator.
2. Connect the CLOSE, COMMON, and OPEN wires
from the actuator to the corresponding labelled
terminal block connections at position ACTUATOR
in the controller.
3. Secure the wires with a cable clamp in the
controller.
Connect circulation pump 1
to controller
The controller can operate a circulation pump, which
stops when there is no demand for heating or cooling.
NOTE!
See the documentation from the circulation
pump supplier as well as relevant Uponor
wiring diagrams before connecting the pump.
Warning!
There is 230 V (5 A) power in the controller to
supply circulation pump 1 when the controller
is connected to the mains.
The illustration below shows the circulation pump
connected to the controller.
LN
1. Ensure that the power is disconnected from both
the controller and the circulation pump.
2. Connect the L, N, and Earth wires from the
circulation pump to the corresponding labelled
terminal block connections at position P1 in the
controller.
3. Secure the wires with a cable clamp in the
controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
21
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
