Connect heating/cooling switch to
controller (optional)
A heating/cooling switch can be connected to one of
the two wired input terminals on the controller
Use an external heating/cooling switch to switch the
system between heating and cooling mode.
NOTE!
This function can only be used in systems
without a digital thermostat registered to the
controller.
See section 8.5 System parameter settings > 11 Wired
Input 1 selection or 12 Wired Input 2 selection for more
information.
Connection to input 1

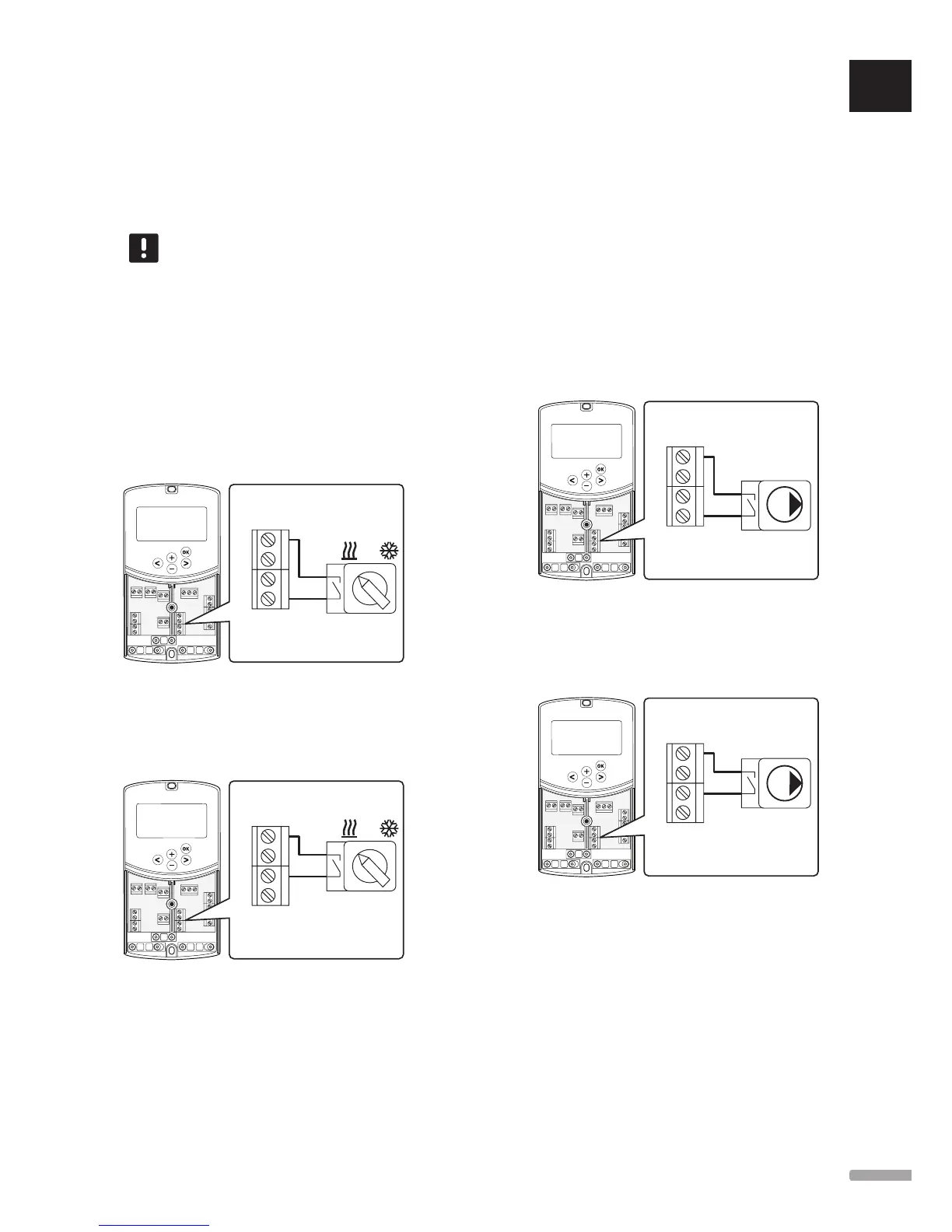

The illustration below shows the connection of a
heating/cooling switch to terminal In1 and 2 on the
controller. A heating/cooling signal is connected to
terminal ln1 only.
4
2
In1
In2
Connection to input 2
The illustration below shows the connection of a
heating/cooling switch to terminal In2 and 2 on the
controller. A heating/cooling signal is connected to
terminal ln2 only.
4
2
In1
In2
To connect the heating/cooling switch:
1. Ensure that the power is disconnected from the
controller.
2. Connect the heating/cooling switch to a unused
terminal block connection at position ROOMSTAT
in the controller.
3. Secure the wires with a cable clamp in the
controller.
Connect circulation pump start signal
to controller (optional)
A circulation pump start signal can be connected to one
of the two wired input terminals on the controller.
Use an external circulation pump start signal to switch
on and off the circulation pump in the system.
See section 8.5 System parameter settings > 11 Wired
Input 1 selection or 12 Wired Input 2 selection for more
information.
Connection to input 1
The illustration below shows the connection of an
external circulation pump start signal to terminal In1
and 2 on the controller. A circulation pump demand
signal is connected to terminal ln1 only.
4
2
In1
In2
Connection to input 2
The illustration below shows the connection of an
external circulation pump start signal to terminal In2
and 2 on the controller. A circulation pump demand
signal is connected to terminal ln2 only.
4
2
In1
In2
To connect the external circulation pump start
signal:
1. Ensure that the power is disconnected from the
controller.
2. Connect the heating/cooling switch to a unused
terminal block connection at position ROOMSTAT
in the controller.
3. Secure the wires with a cable clamp in the
controller.
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
25
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
