Uponor SmatrixMove User Manual

6.10 Register a wireless outdoor sensor
to the controller
0h
13
1
2
3
10 s
13 13
54
15
15
6 7
T-166
T-167
T-168
T-166
T-167
T-168
15
15
8
5 s
5 s
5 s
T-163
1 2 3 4
ON DIP
24
15
9 10
24
0h 2101214161820
C
P
C
AUTO
22 24468
11
Caution!
The DIP switches in public thermostat
T-163 must be set before the thermostat is
registered.
NOTE!
If the outdoor sensor is placed to far
away from the reference room, a separate
thermostat can be used to register the
outdoor sensor.
NOTE!
Repeating the registration process will replace
the old registration data.
NOTE!
If no button on the controller is pressed for
about 4 minutes, the software exits to run
mode.

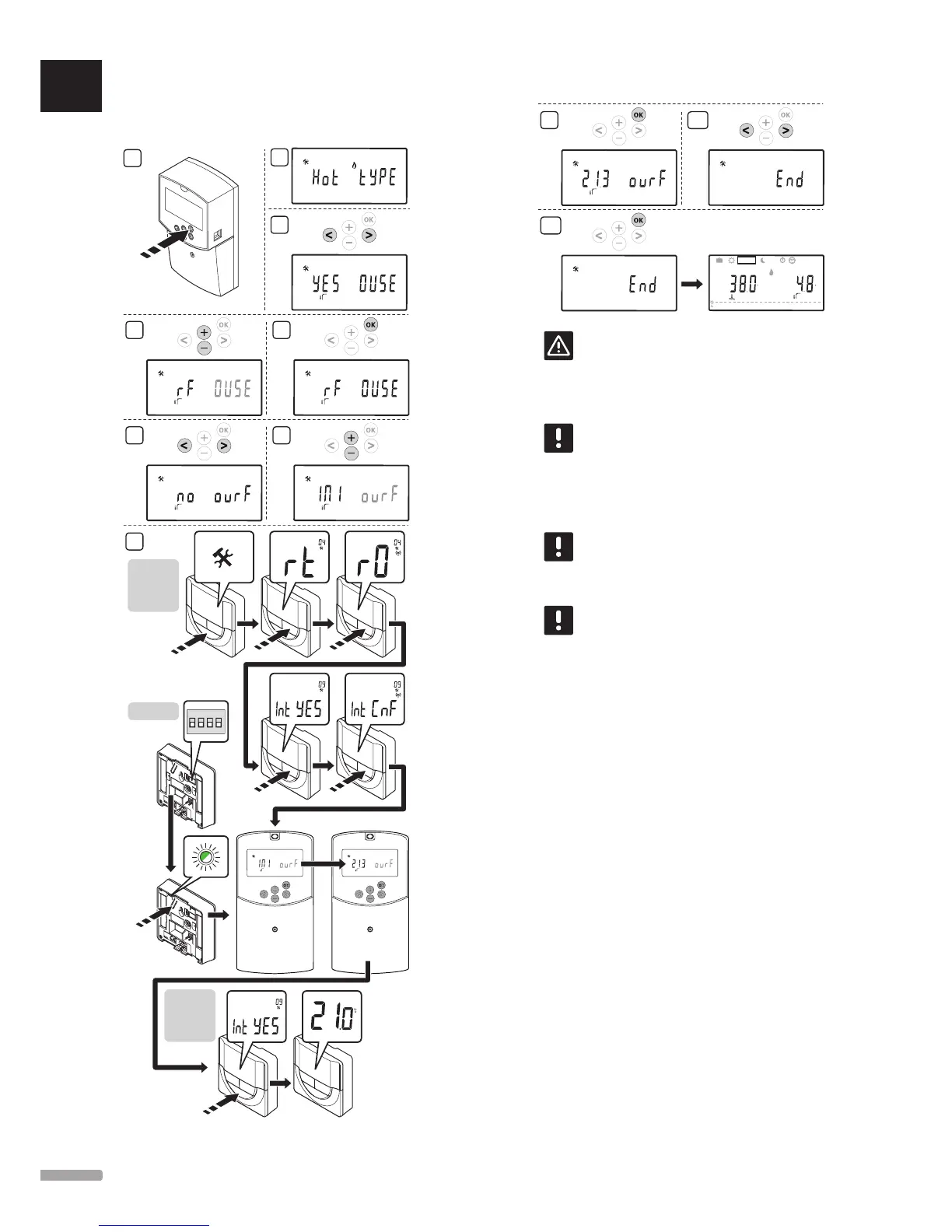

To register a wireless outdoor sensor to the controller:
1. Press and hold the OK button on the controller for
about 10 seconds to enter the system parameters
menu.
2. The settings icon is displayed in the top left hand
corner of the display, and the text Hot type, Cld
type, or rEv type (depending of current operating
mode) is displayed.
3. Use buttons < or > to locate parameter 13 (OUSE)
– Outdoor sensor selection.
4. Use buttons - or + to change parameter settings to
rf.
5. Press the OK button on the controller to confirm
the change and return to the system parameter
settings.
6. Use buttons < or > to locate parameter 15 (ourF)
– Wireless outdoor sensor configuration.
7. Use buttons - or + to change parameter settings to
INI.
