Uponor SmatrixMove User Manual

Controller
The controller operates the 3-way valve actuator and
circulation pump, which in turn affect the flow of the
supply water, to change both the supply and indoor
temperatures.
Caution!
Only 230 V valve actuators are compatible
with the controller.
Uponor Smatrix Move Controller H X-157
The Uponor Smatrix Move Controller H X-157 uses
an outdoor temperature sensor, a supply temperature
sensor, an optional return temperature sensor, and
system parameters to regulate the system.
Main characteristics:
• Control of supply temperature to heating systems.
• Heating curve for outdoor compensation.
• 3-way valve control with status in display.
• 2-way valve control, special actuator, withstatus in
display.
• Circulation pump control with status in display.
• Scheduling, pre-programmed and customizable
schedules.
• Outdoor temperature sensor, wired.
• Start/stop of heating source (boiler etc).
• Lower indoor temperature with night set back (ECO
mode).
Options:
• Wall mounted (screws supplied).
Uponor Smatrix Move PLUS Controller H/C X-158
The Uponor Smatrix Move PLUS Controller H/C X-158
Radio uses an outdoor temperature sensor, a supply
temperature sensor, an optional return temperature
sensor, information transmitted from registered wireless
thermostats, and system parameters to regulate the
system.
Main characteristics:
• Control of supply temperature to heating and/or
cooling systems with relative humidity control.
• Heating and cooling curve.
• External antenna, which must be installed vertically.
• 3-way valve control with status in display.
• 2-way valve control, special actuator, with status in
display.
• Heating/cooling outputs for switchover valves.
• Circulation pump control with status in display.
• Scheduling, pre-programmed and customizable
schedules.
• 1-way communication with a room thermostat
(receive information from the thermostat).
• Outdoor temperature sensor, wireless (via a
thermostat) or wired (to the controller).
• Start/stop of heating and/or cooling source (boiler,
chiller etc).
• Lower indoor temperature with night set back (ECO
mode).
• System integration with an Uponor Smatrix Wave/
Wave PLUS/Space/Space PLUS system.
Options:
• Wall mounted (screws supplied).

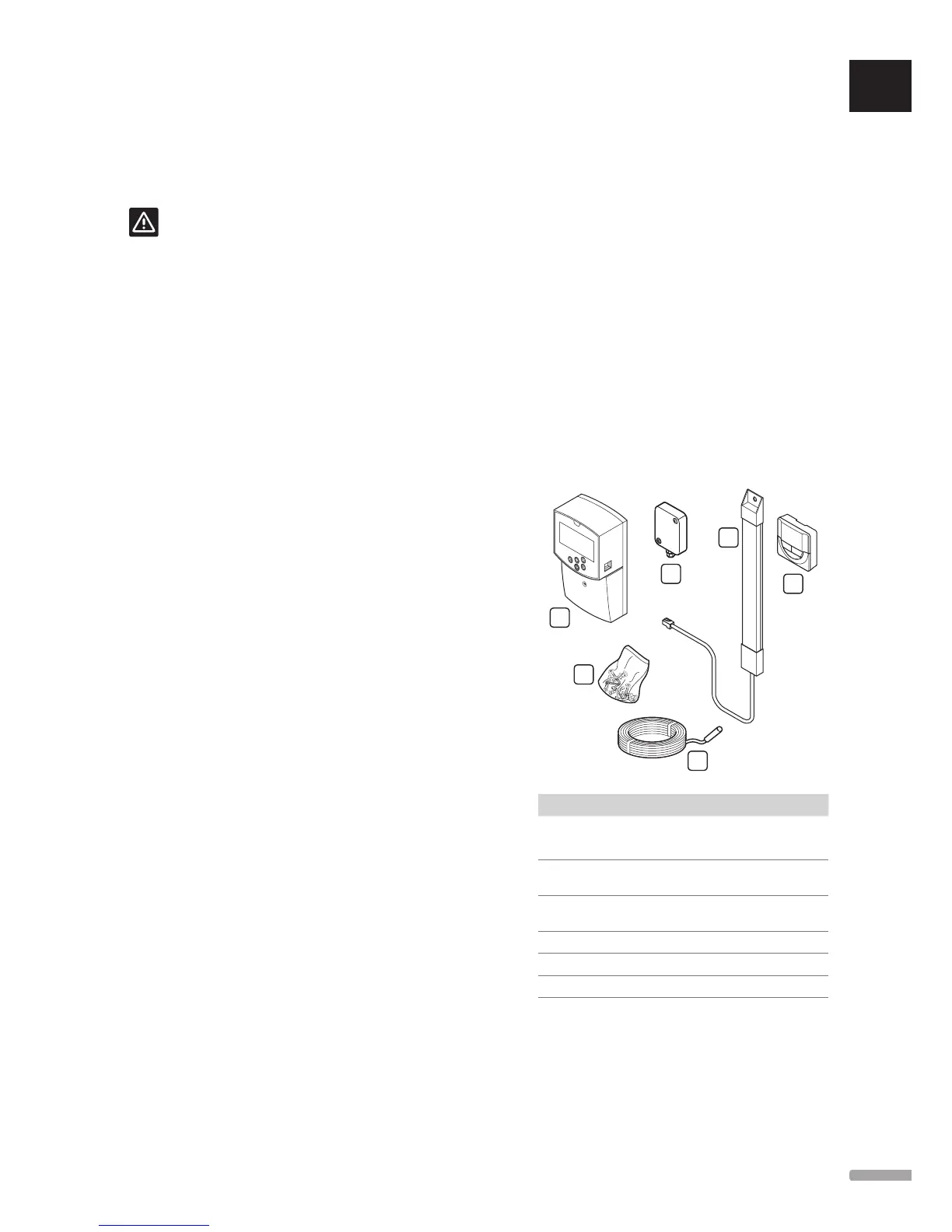

Components of the controller
The illustration below shows the controller and its
components.
F
C
E
A
B
D
Item Description
A Uponor Smatrix Move Controller H X-157
Uponor Smatrix Move PLUS Controller H/C X-158
B Uponor SPI Smatrix Move PLUS Antenna A-155
Radio (Move PLUS only)
C Uponor Smatrix Wave Thermostat Prog.+RH T-168
(Move PLUS only)
D Uponor Smatrix Sensor Outdoor S-1XX
E Uponor Smatrix Move Sensor Supply/Return S-152
F Mounting material
UK
CZ
DE
DK
EE
ES
FI
FR
HR
HU
IT
LT
LV
NL
NO
PL
PT
RO
RU
SE
SK
7
UPONOR SMATRIX MOVE/MOVE PLUS · INSTALLATION AND OPERATION MANUAL
