Thermostats (Move PLUS only)
The thermostats communicate with the Move PLUS
controller through radio transmissions. It is possible
to mix a maximum of two different types of Uponor
Smatrix Wave thermostats in the same installation. One
of these thermostats can only function as a wireless
connection point for the outdoor temperature sensor.
The following Uponor Smatrix thermostats can be used
in the system:
• Uponor Smatrix Wave Thermostat Public T-163
• Uponor Smatrix Wave Thermostat Digital T-166
• Uponor Smatrix Wave PLUS Thermostat D+RH
T-167
• Uponor Smatrix Wave Thermostat Prog.+RH T-168
Caution!
Do not attempt to connect Uponor Smatrix
Base thermostats to the controller. They are
not suited for each other, and they may get
damaged.
NOTE!
The thermostat is affected by the
temperature of the surrounding surfaces as
well as the ambient air temperature.
Uponor Smatrix Wave Thermostat Dig T-166
The thermostat shows the ambient or set temperature
on the display. Temperature settings are adjusted using
the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Can be placed up to 30 meters away from the
controller.
Components of the thermostat:

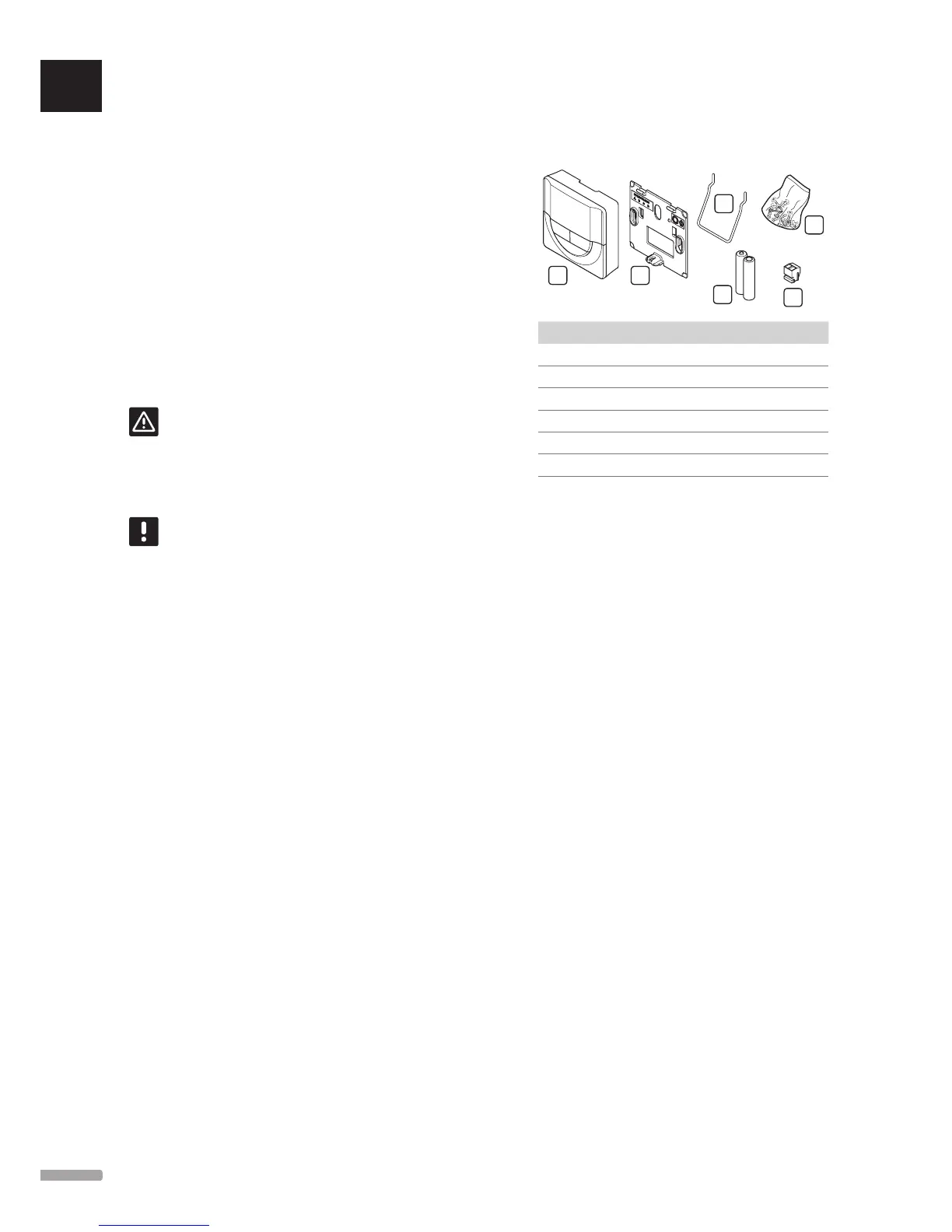

The illustration below shows the thermostat and its
components.
A
E
C
B
D
F
Item Description
A Uponor Smatrix Wave Thermostat Dig T-166
B Wall bracket
C Stand
D Batteries (AAA 1.5 V)
E Mounting material
F Connection terminal
Uponor Smatrix Wave PLUS Thermostat D+RH
T-167
The thermostat shows the ambient, set temperature or
relative humidity on the display. Temperature settings
are adjusted using the +/- buttons on the front.
Main characteristics:
• Backlit display, dims after 10 seconds of inactivity.
• Displays Celsius or Fahrenheit.
• Heating/cooling demand as well as low battery
indication in display.
• Displays software version during power up
sequence.
• Setpoint range is 5 – 35 °C (maximum and
minimum setting may be limited by other system
settings).
• Room temperature regulation with use of optional
external temperature sensors.
• Displays optional temperature sensor values
if sensors are connected and relevant room
temperature regulation is activated.
• Relative humidity limit indicated in display (requires
integration with a Wave/Wave PLUS/Space/Space
PLUS system).
• Can be placed up to 30 meters away from the
controller.
