Introduction & Specifications
1-2
Section
AB46 Work Platform
1.2
1.2 Specifications
Table 1-1: Specifications

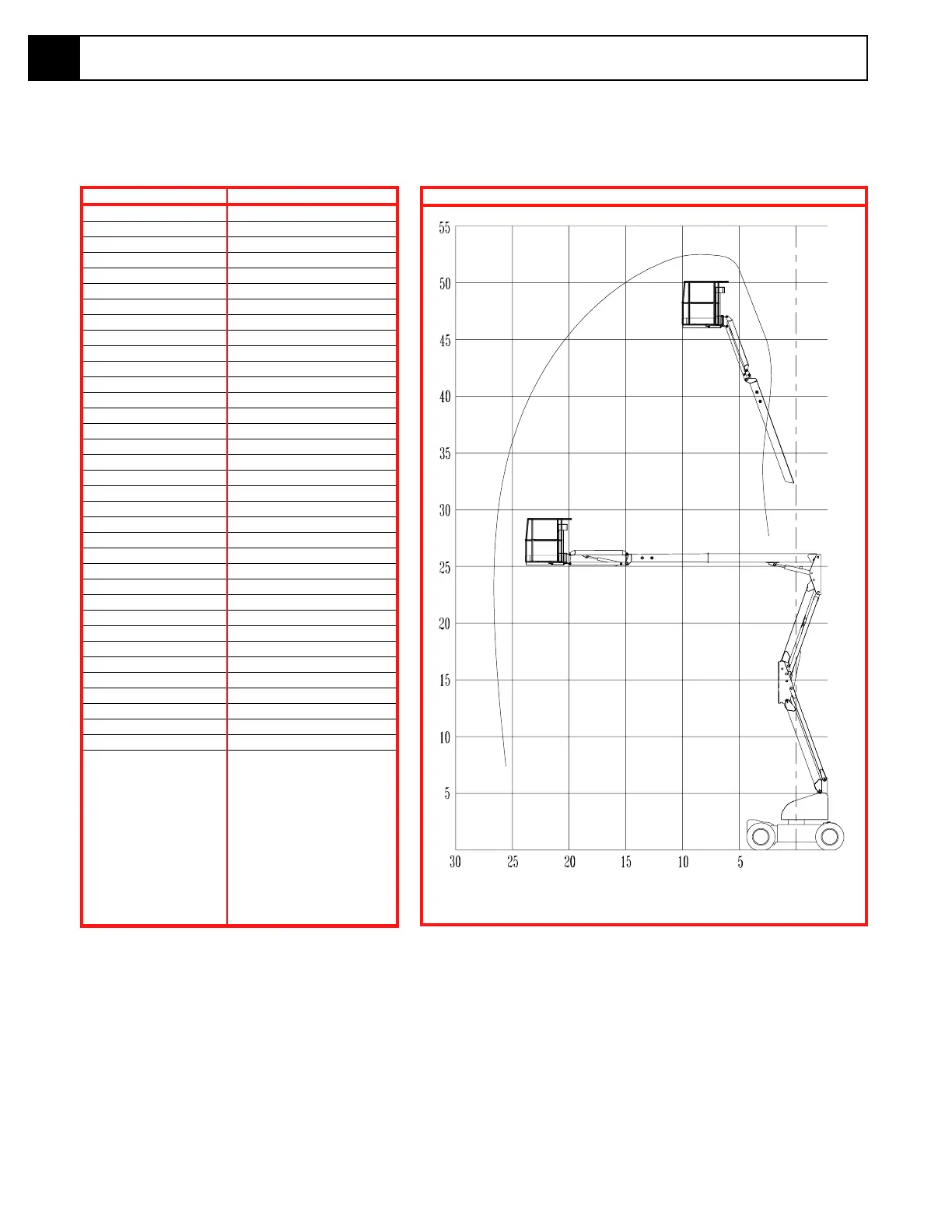

REACH ENVELOPE DIAGRAM
DIMENSIONS IN FEET
* Specifications subject to change without notice.
Meets or exceeds all applicable requirements of OSHA and ANSI A92.5-1992
ITEM SPECIFICATION
Height
Working height maximum 52 ft.
Platform height maximum 46 ft.
Platform step in height 9 in.
Up and over height 25 ft.
Drivable height 46 ft.
Horizontal outreach 24 ft. 6 in.
Turret rotation 360 deg. noncontinuous
Platform rotation 160 deg.
Tail swing None
Jib length 5 ft.
Jib arc 140 deg.
Inside turning radius 2 ft.
Outside turning radius 9 ft. 10 in.
Drive speed (lowered) 3.5 mph
Drive speed (elevated) .34 mph
Gradability 30% - 16.7 Degrees
Dimensions (boom stowed)
Platform Size 69 in. x 39 in.
Guardrail height 43
1
/
2
in.
Toeboards 6 in.
Maximum platform capacity 500 lbs.
Maximum no. of occupants 2
Weight 14,140 lbs.
Overall height 6 ft. 6 in.
Overall length 17 ft. 10 in.
Overall width 5 ft. 9 in.
Wheel base 73 in.
Wheel track 59 in.
Ground Clearance 6 in.
Power source Kubota WG750 or D905
System voltage 12VDC
Maximum Hyd. Pressure 4400 psi
Controls Electric Proportional
Tires 10x16.5 8 ply lug tread
