AB46 Work Platform
2-3

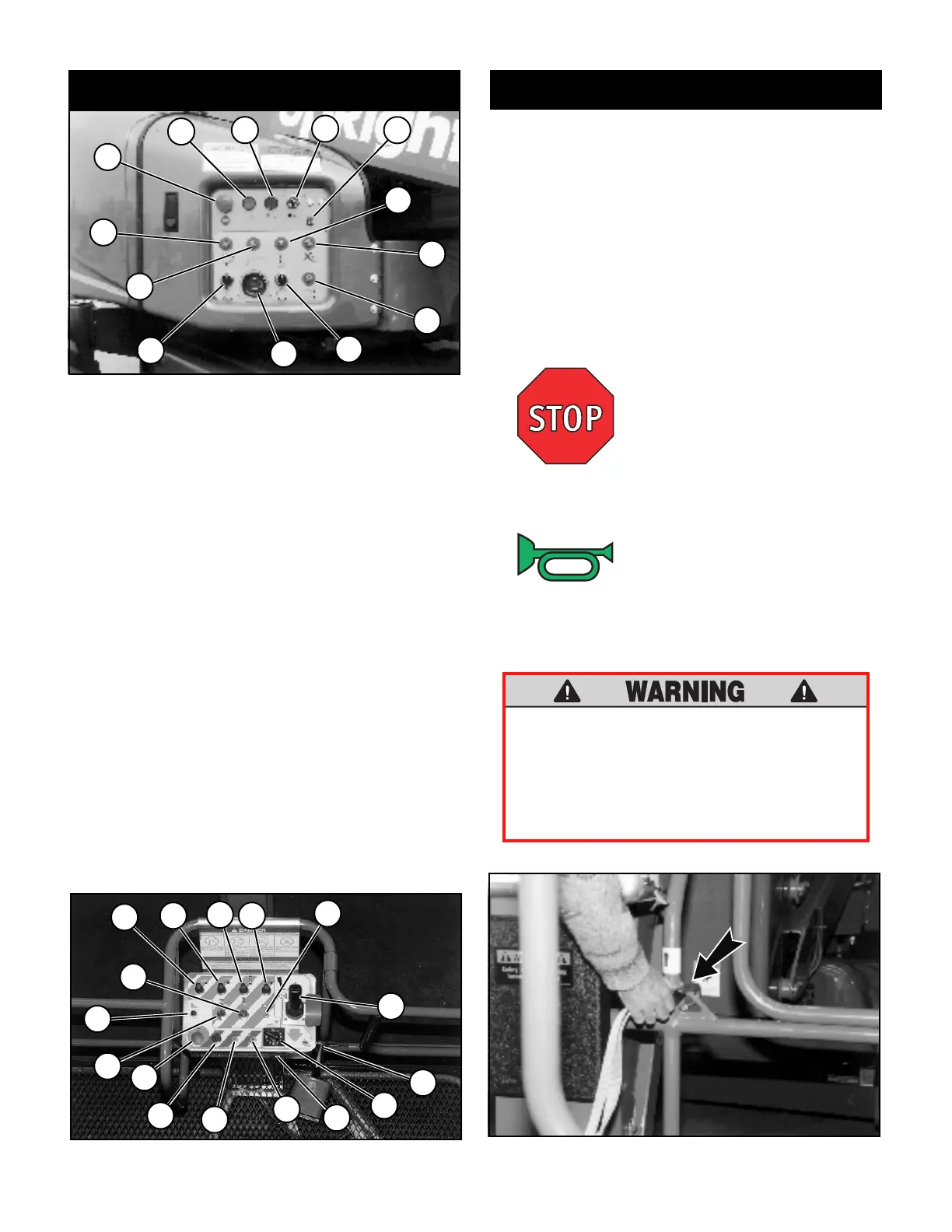

Controls and Indicators
Figure 2-3: Typical Fall Restraint Anchorage
Point
Operation
Before operating work platform insure that:
Pre-operation and safety inspection has been
completed, and any discrepancies have been
corrected.
The operator has been thoroughly trained on
the operation of the machine.
The work area is clear of all obstructions,
holes, drop-offs, or persons in the route of
travel.
The surface is capable of supporting wheel loads.
Refer to figures one and two for control locations.
Emergency Stop
At any time during operation, press the emergency
stop button to stop all functions in an emergency.
Service Horn
At any time during operation, press the service
horn button to sound an audible warning if neces-
sary.
Always wear an approved fall restraint
properly attached to designated platform
anchorage point when driving or elevating
the machine (see figure 2-3).
Attach only one fall restraint to each anchor-
age point.
Figure 2-2: Platform Controls
Figure 2-1: Chassis Controls
Note: The following list corresponds to the
numbered items in figures one and two.
1. Emergency stop.
2. Engine start.
3. Choke / glow plug button.
4. Keyswitch
5. Control fuses.
6. Riser control.
7. Upper boom control.
8. Boom extension control.
9. Jib control.
10.Turret rotation control.
11.Platform rotation control.
12.Platform level control.
13.Hourmeter.
14.Service horn button.
15.Drive control handle.
16.Function speed control.
17.Fuel selector.
18.Foot switch (located on platform floor).
19.Out of level indicator.
16
4
5
17
3
14
1
10
11
19
6
7
8
9
12
15
12
9
8
5
4
3
2
1
6
7
10
13
11
