AB46 Work Platform
2-7

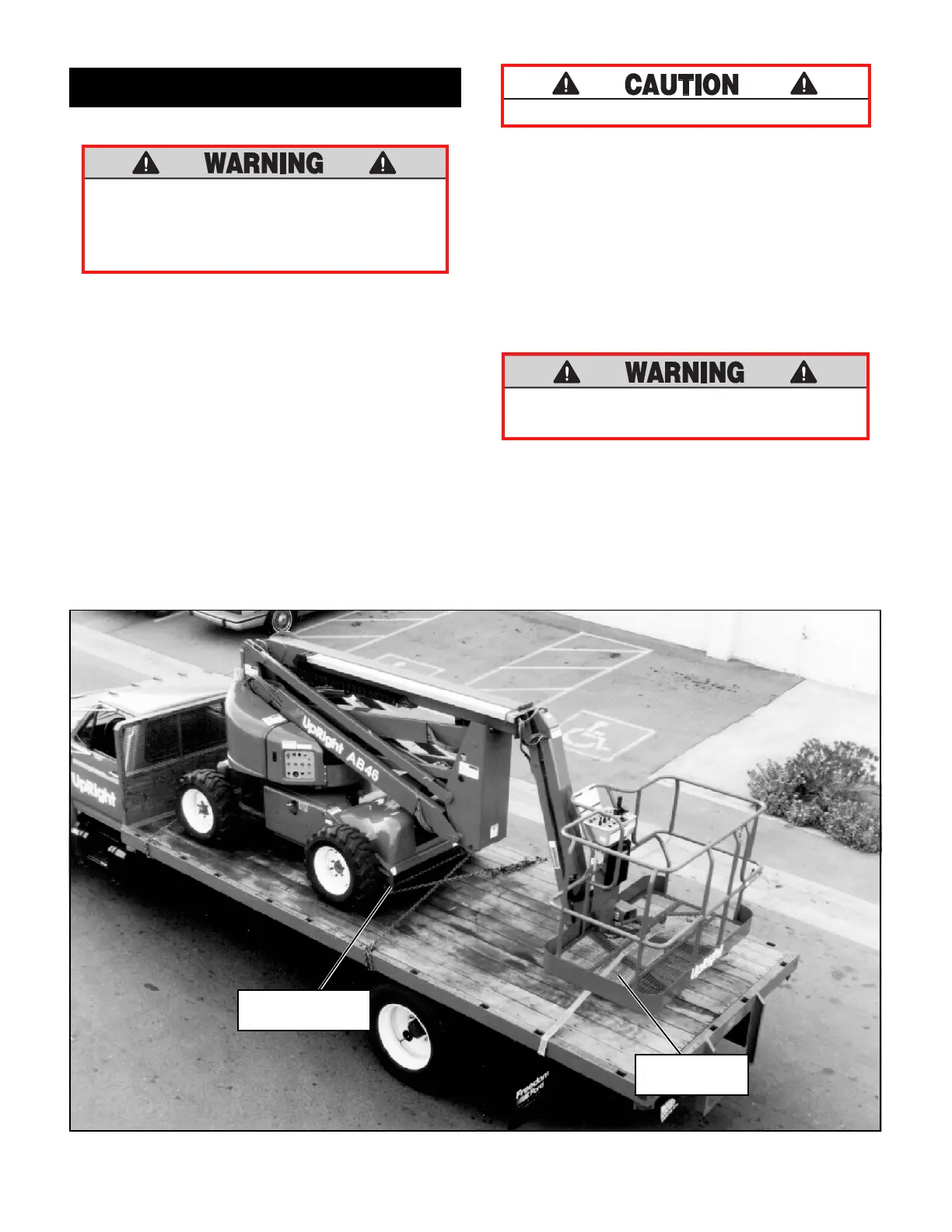

Figure 2-6: Securing the Machine for Transportation
Transportation
BY CRANE
Stand clear of machine when lifting.
Check specifications on back page, insure
that crane and slings are of correct capacity
to lift weight of unit.
1. Insure that boom is fully lowered and retracted.
2. Attach straps to chassis lifting lugs only. Insure
that straps are adjusted properly to keep unit
level when lifting.
BY TRUCK OR TRAILER
1. Insure that boom is fully lowered and retracted.
2. Maneuver the machine onto bed of truck / trailer.
3. When winching, follow instructions for emer-
gency towing. Attach winch cable to front tie
down lugs.
Chassis Tie Down /
Lifting Lug (typ.)
Wooden Block
7.5" x 4" x 28"
Do not winch machine faster than 3 mph.
4. After winching, insure that brakes are set.
5. Secure the machine to the transport vehicle
using chains / straps of adequate load capacity
(refer to specifications, back page) attached to
chassis tie down.
6. Place a wooden block (7.5" x 4" x 28") under
platform support braces as shown.
7. Attach ratchet strap; under platform floor grating,
over support braces. Tighten securely, do not
overtighten.
NEVER elevate the machine while on a
truck or trailer.
