AB46 Work Platform
Maintenance
FUELING
Gasoline
1. Open fill pipe cap located on chassis left side.
2. Fill to capacity with unleaded motor fuel only.
3. Check fuel level by lifting flap located on top of
chassis left side. Fuel tank full capacity is 25
US gallons.
Diesel
1. Open fill pipe cap located on chassis left side.
2. Fill to capacity with diesel motor fuel only, grade
#1-D, or #2-D. Use distillate fuel only, do not
use residual or blend.
3. Check fuel level by lifting flap located on top of
chassis left side. Fuel tank full capacity is 25
US gallons.
HYDRAULIC OIL
1. Check oil level at sight gauge inside engine
compartment right hand side with the platform
fully lowered.
2. If necessary, fill to capacity with clean ISO 46
compatible hydraulic oil.
3. Lift flap located on top of chassis right side.
4. Open filler / breather cap to add hydraulic oil.
5. Replace cap.
LUBRICATION
Refer to service manual for lubrication chart and
guidelines.
BATTERY MAINTENANCE
Hazard of explosive gas mixture. Keep
sparks, flame and smoking materials away
from battery.
Always wear safety glasses when working
with battery.
Battery fluid is highly corrosive. Rinse
away any spilled fluid thoroughly with clean
water.
Always replace battery with UpRight battery
or manufacturer approved replacement.
Check battery fluid level daily, especially if work
platform is being used in a warm, dry climate.
If electrolyte level is lower than 3/8 in. (10 mm)
above plates add distilled water only. DO NOT use
tap water it will shorten battery life.
Keep terminals and top of battery clean.
TIRES
Tire selection can affect the stability of the ma-
chine. Use only tires supplied by UpRight unless
approved by the manufacturer in writing.

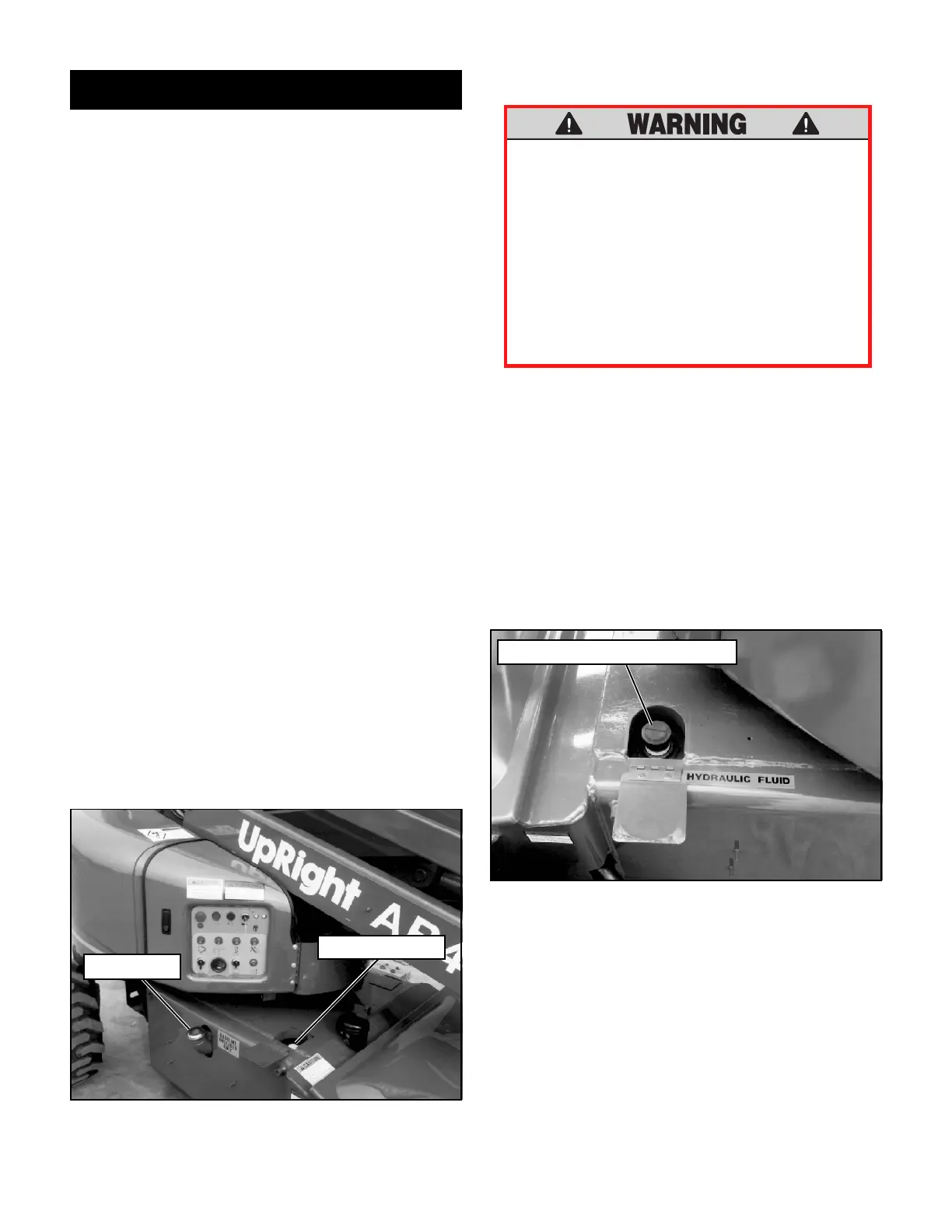

Figure 2-7: Fuel Fill Pipe and Level Gauge
Figure 2-8: Hydraulic Oil Filler / Breather Cap
Hydraulic Oil Filler / Breather Cap
Fuel Level Gauge
Fuel Fill Pipe
