Section
3-5AB46 Work Platform
Maintenance
3.4
3.4 Lubrication
Refer to Table 3-1 for the lubrication intervals and
Figure 3-2 for location of items that require lubrication
service. Refer to the appropriate sections for lubrication
information on the Steering Linkage, Torque hubs,
Hydraulic Oil, Filter, and Engine Oil and Filter.
GREASE FITTINGS
Wipe each grease fitting before and after greasing.
Using multipurpose grease in a grease gun, pump the
grease into the fitting until grease just begins to appear
at the edges of the pivot, wipe off any excess grease.
HYDRAULIC OIL AND FILTER
Fluid Level
With the platform fully lowered, check oil level on sight
gauge. If the oil is NOT in operating range, add hydrau-
lic fluid until oil is visible in operating range on dipstick
or visible in sight gauge. DO NOT fill above operating
range or when the platform is elevated.
Oil and Filter Replacement
1. Operate the platform for 10-15 minutes to bring the
hydraulic oil up to normal operating temperature.
Grease
Oil (open gear lube)

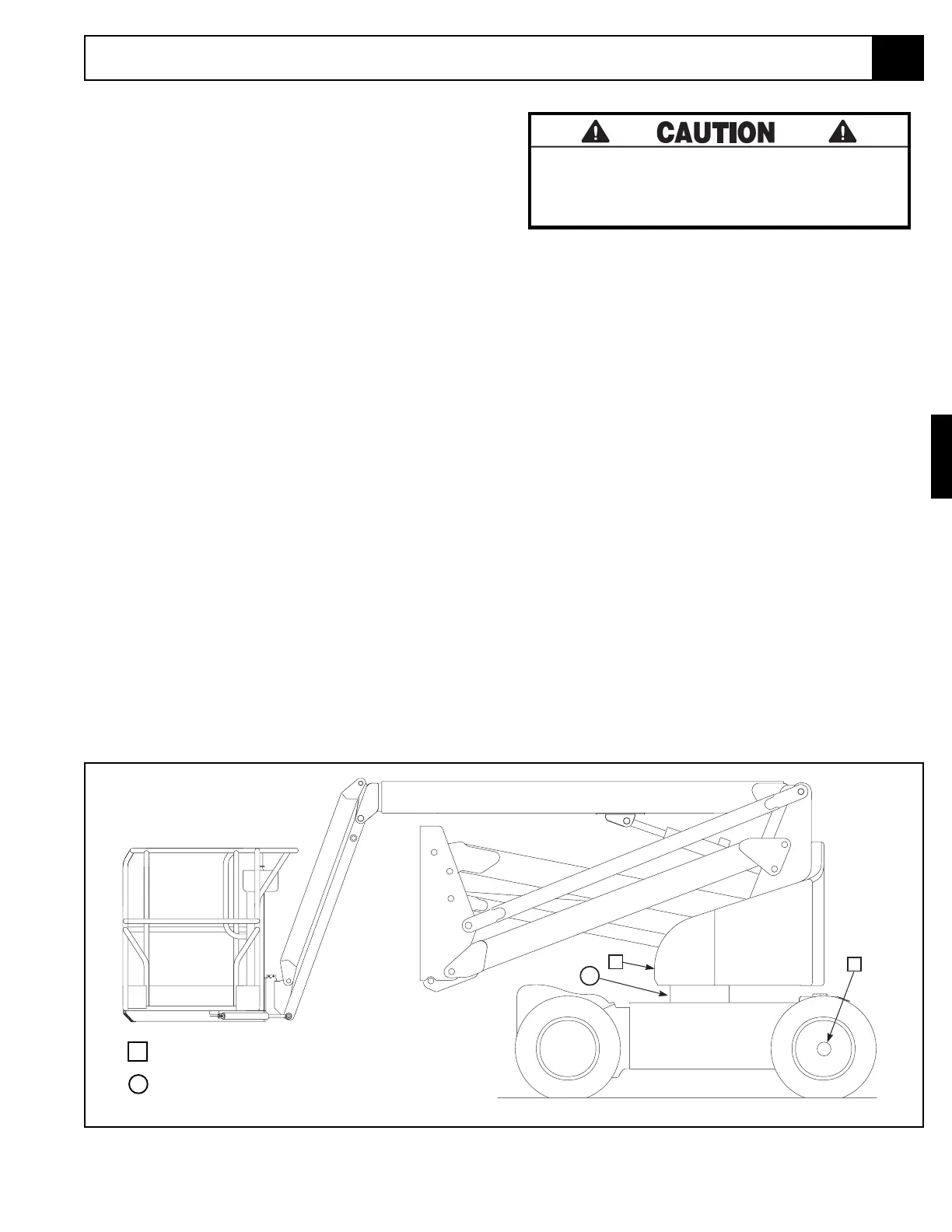

Figure 3-2: Lubrication Chart
The hydraulic oil may be hot enough to
cause burns. Wear safety gloves and safety
glasses when handling hot oil.
2. Provide a suitable container to catch the drained
oil.
3. Remove the drain plug and allow all oil to drain into
the container. Be sure to dispose of oil properly.
4. Reinstall the drain plug.
5. Remove filter element from filter head (located
beside valve block).
6. Apply a thin film of clean hydraulic oil (ISO No. 46)
to the gasket of the replacement filter.
7. Thread replacement filter onto the filter head until
the gasket makes contact then rotate 3/4 of a turn
further.
8. Fill the hydraulic oil tank to operating level on sight
gauge with ISO #46 hydraulic oil.
NOTE: For service Information on the engine refer
to your engine manual (located in platform manual
box or available from UpRight Inc.).
