52 “Translation of the original instruction”
Wan
13.Remove the positioning fasteners on the arm
length pin (label # 4).
CAUTION: Do not remove the outer opening ring.
14.Use a soft metal punch to remove the pin and
place it aside.
15.Carefully lift the connecting rod assembly away
from the machine and place it on the device
structure that can support it.
16.Mark and disconnect the harness on the lifting
cylinder block.
17.Mark and disconnect the hydraulic hoses on the
lifting hydraulic cylinder. Plug the hose and cover
the joint with the cover.
18.Remove the hose clamp and hose from the trim
arm 4 (label# 6).

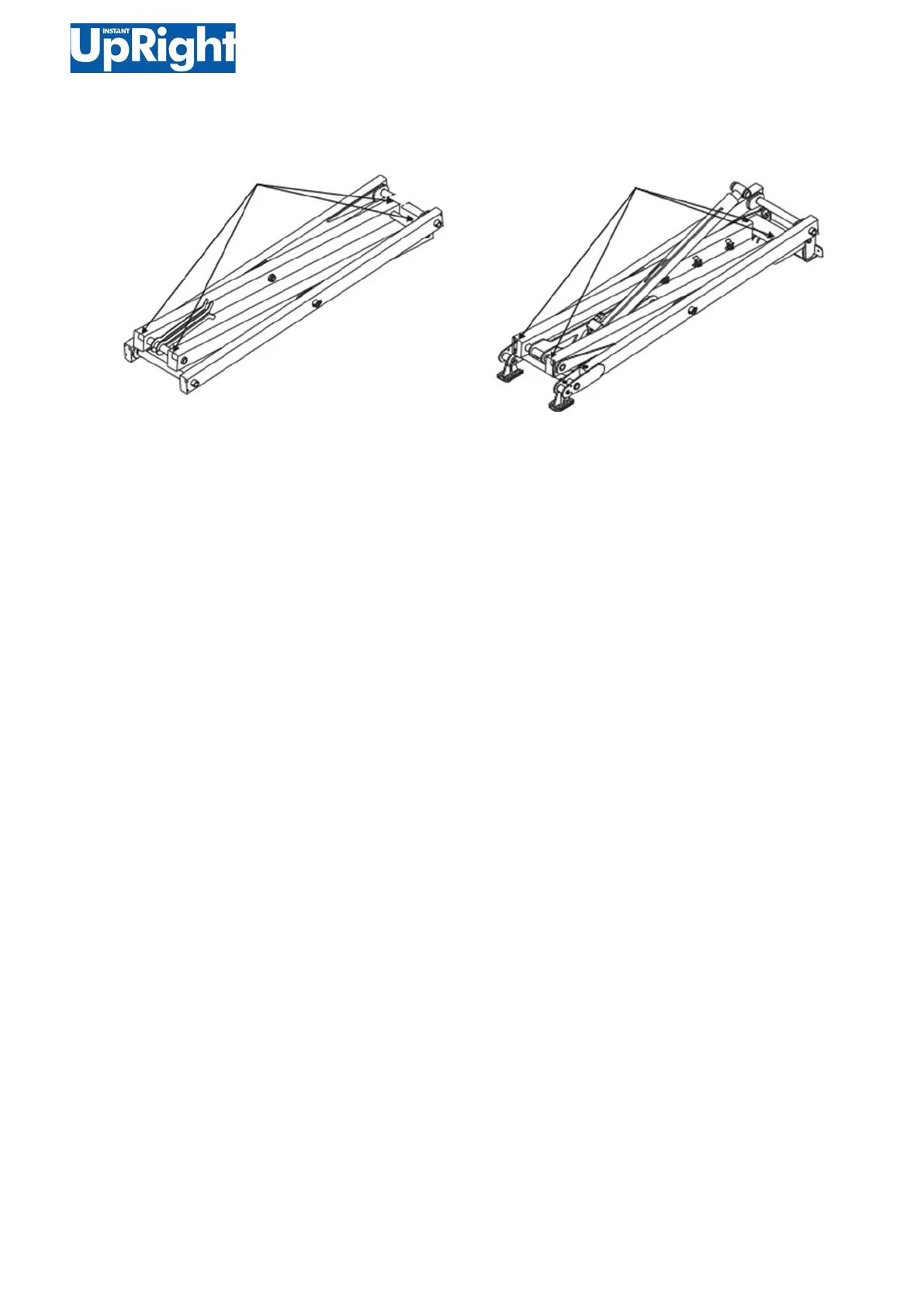

19.Use the aerial lifting device to connect the 4
hook chain to the end of the 4 arm in the shearing
arm. Tension the chain, but do not apply lifting
pressure.
Warning! The risk of injury. When removing the
connecting rod assembly from the machine, if the
support is improper, the connecting rod assembly
will lose balance and fall.
20.Carefully lift the connecting rod assembly away from
the machine and place it on the device structure that
can support it.
24.Remove the pin fasteners on the lower arm (label #
7).
CAUTION: Do not remove the outer opening ring.
25.Use a soft metal punch to remove the pin and place
it aside.
26.Move the link mechanism toward the non-steering
end of the machine until the chassis slider leaves the
slide.
Carefully lift the connecting rod assembly away from
the machine and place it on the device structure that
can support it.
