US Cutter MH-721 - Adding the Center Crossbeam; Connecting Left Side Assembly

5
Needed For This
Step
Assembled right side (roller arm, column,
foot)
I(x1) - Center Crossbeam
A(x2) - Short Screw
F(x2) - Screw Sleeve
E(x2) - Screw Sleeve Cap

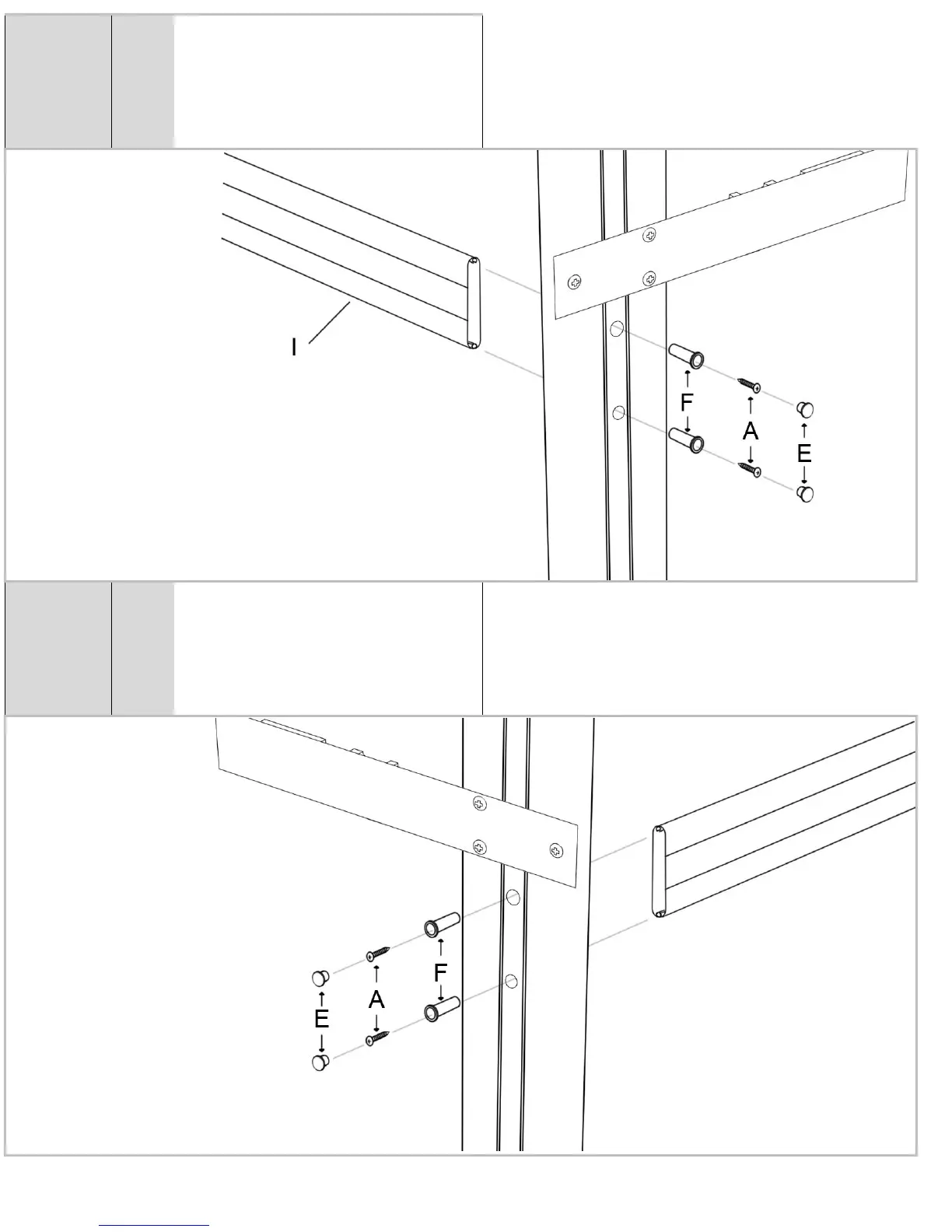

Adding the Center Crossbeam
to the right side
(Some larger models will
have more than one Center
Crossbeam. If your model has
2 Crossbeams, repeat this step,
attaching both to the right side)
6
Needed For This
Step
Assembled right side (roller arm, column,
foot) with Center Crossbeam
A(x2) - Short Screw
F(x2) - Screw Sleeve
E(x2) - Screw Sleeve Cap
Adding the Left Side to the
completed right side
(Some larger models will
have more than one Center
Crossbeam. If your model has
2 Crossbeams, repeat this
step, attaching the left side
to both)
1
