USAutomatic SENTRY 300 S - Push to Open Installation

10

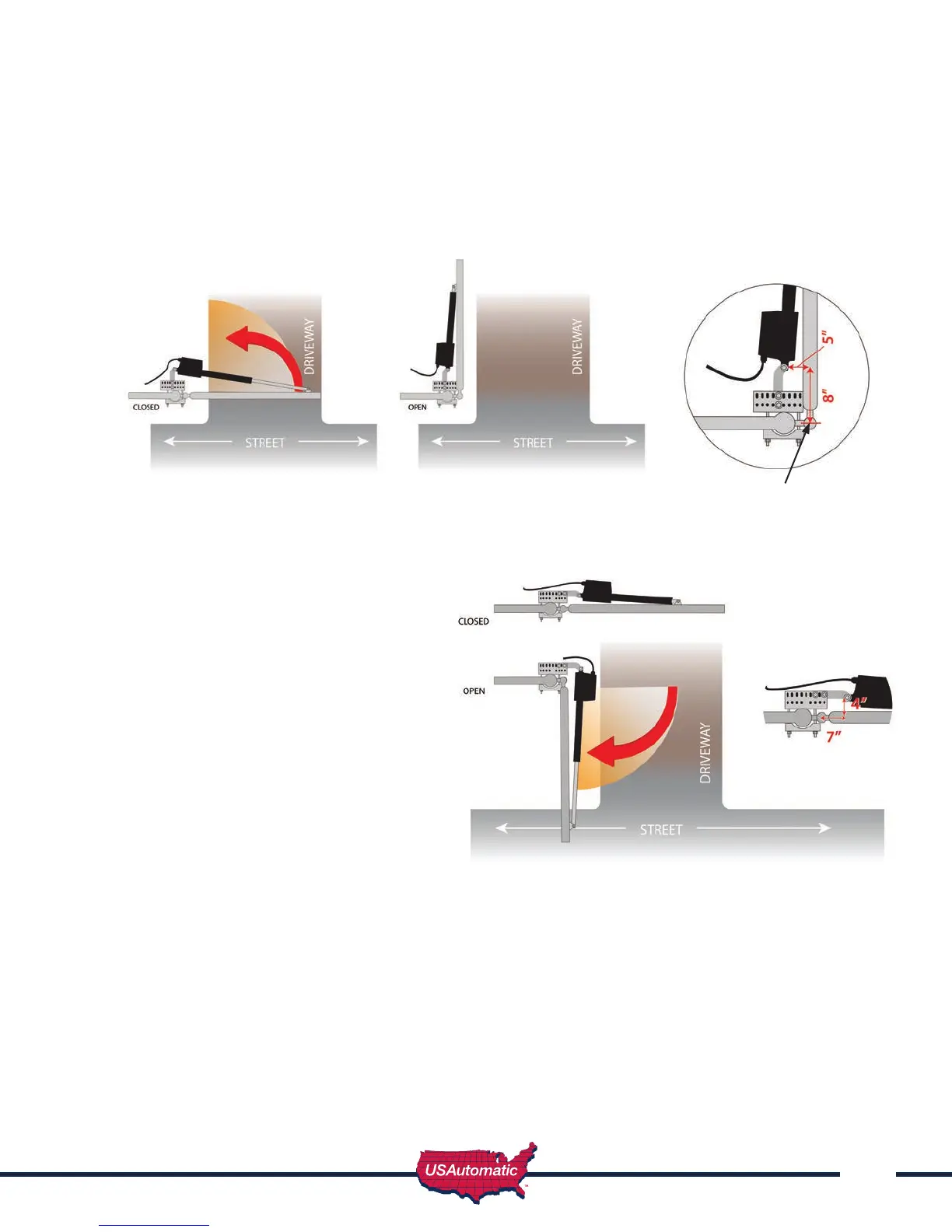

Pull to Open Installation
Thisinstallationmethodisthemostcommonwherethegateswingsintotheproperty/driveway.
Nomatterwhichwayyoudecidetoinstalltheactuatorbracketanduniversalactuatorbracketthe
pivotpointbelowmustbelocatedinapproximatelythispositionforapulltoopeninstallation.
Push to Open Installation
Thisinstallationmethodiscommon
wherethedrivewayslopesupentering
thepropertyandgatemustswing
outtoavoidinterference.Thistypeof
installationplacestheactuatorbracket
andlinearactuatorintothedrivearea
slightly.Anotherinstallationmethod
wouldbetoinstallasaPulltoOpen
andplacelinearactuatoronoutside
ofproperty.
Pushtoopeninstallationcanbe
achievedbyinstallinguniversalactuator
bracketandactuatorbracketasshownin
gurebelow.Dimensionsforthisinstall
methodare7”and4”fromhingecenter.
Universalactuatorbracketholepatternallowsfortheactuatorbrackettobeinstalledasshowninthis
locationonly.Establishenoughoffsetintherearactuatorpivotpointtoallowthegatetoclosefrom
theopenposition.
IMPORTANT: If Installation is Push to Open, control switch #2 “operating direction reverse”
must be turned “ON”.
NOTE: Pull to Open & Push to Open Dimensions are measured from the gate hinge center
(pivot point).
GateHingeCenter
(pivot point)
