Sentry 300 D Gate 2 Installation PN#020325
Universal Actuator
Bracket
Part#610400
1 per
Square Post Flush
Mount Bracket
Part#610402
1 per
Round Post Flush
Mount Bracket
Part#610404
1 per
Actuator Bracket
Part#610406
1 per
Gate Bracket
Part#610105
1 per
Gate Support
Bracket
Part#610120
2 per
Bronze Bushing
Part#610530
2 per
Manual release pin
Part#610534
1 per
Manual release clip
Part#610535
1 per
50 Ft 5 Conductor
Extension Cable
Part#630035
1 per
Junction Box
Part#630045
1 per
Wire Nut
Part#620320
4 per
Wire Nut
Part#620310
6 per
3/8 x 2.5”
Shoulder Bolt
Part#610512
3 per
3/8 x 8”
Carriage Bolt
Part#610510
2 per
1/4 x 20 x 3 1/2”
Tap Bolt
Part#610522
2 per
1/4 x 20 x 2 1/2”
Tap Bolt
Part#610520
2 per
#8 x 3/4 Self tap
hex screw
Part#610615
2 per
3/8 x 16 nylon lock nut
Part#610518
5 per
1/4 x 20 nylon lock nut
Part#610526
2 per
3/8 USS at washer
Part#610514
6 per
3/8 SAE at washer
Part#610516
2 per
1/4 SAE at washer
Part#610524
4 per
Nylon washer
Part#610528
2 per

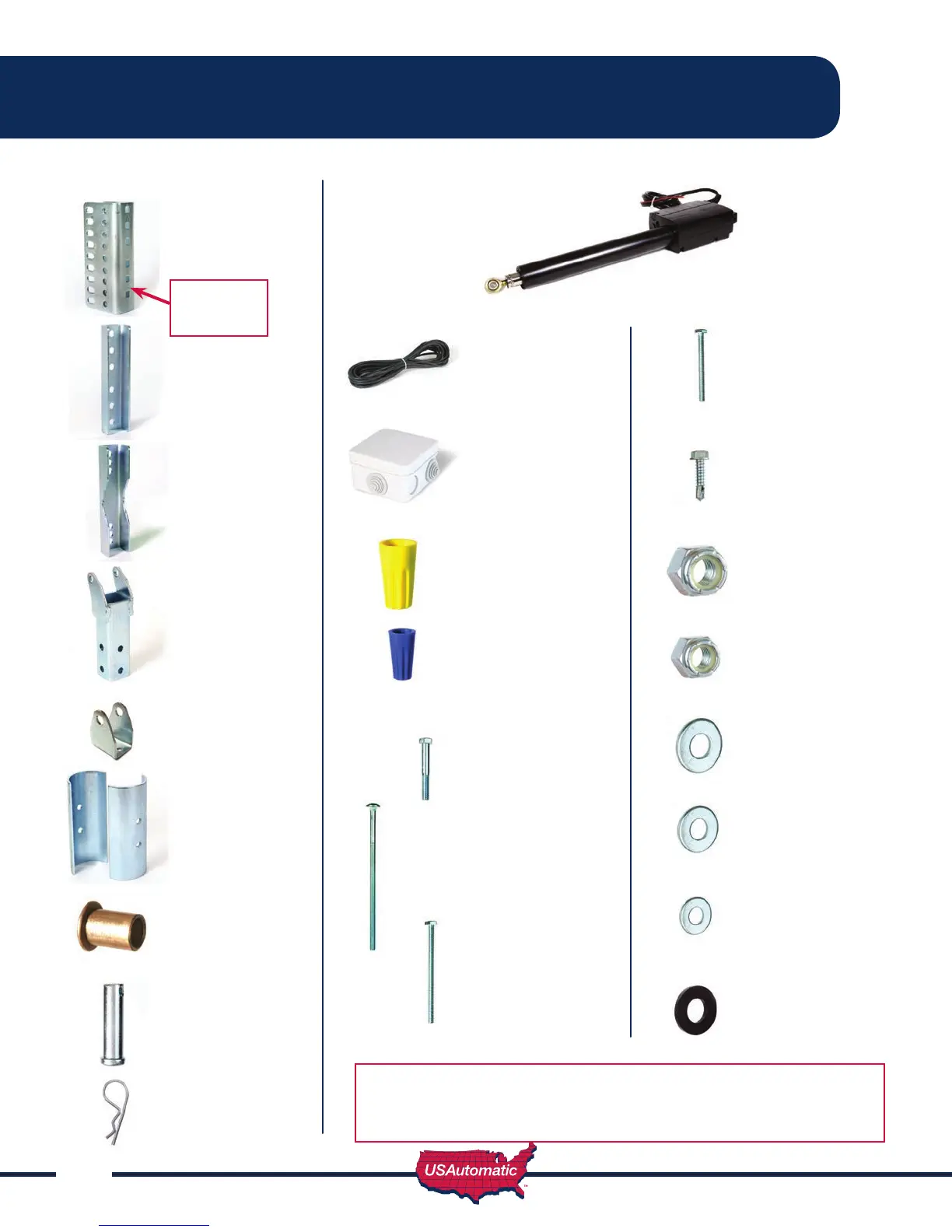

PARTS INVENTORY
Linear Actuator
Part#510300
1 per
NOTE: It is strongly recommended that the extension
cable provided be installed in conduit to help
protect cable from being damaged.
NOTE:
Arrow installs
toward drive.
