V2 AXIL User Manual

ENGLISH

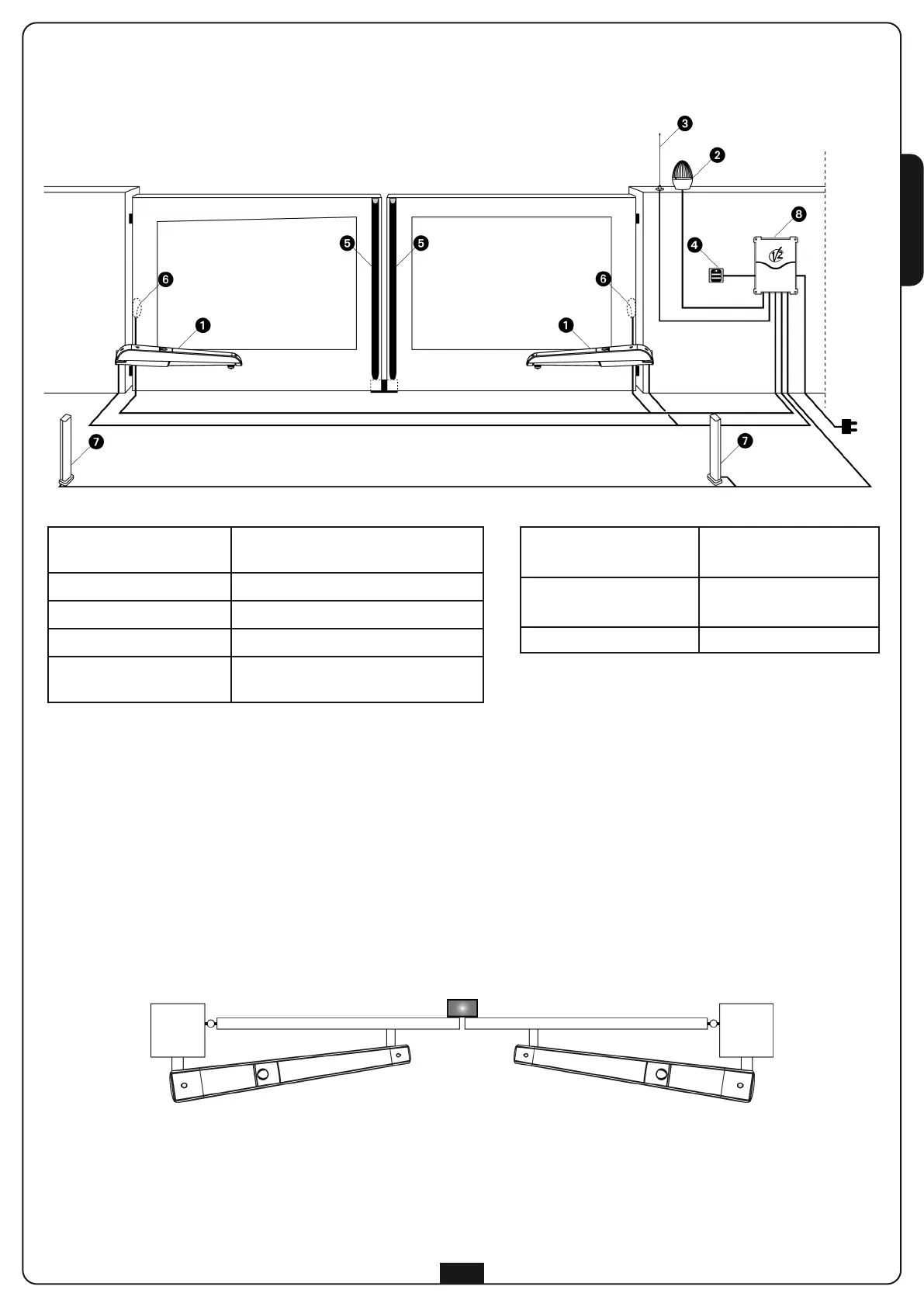

INSTALLATION LAYOUT
 AXIL actuator
- cable 4 x 0,75 mm
2
(120V/230V)
- cable 3 x 1,5 mm
2
(24V)
 Blinker
cable 2 x 1,5 mm
2
 Aerial
cable RG-58
 Key or digital selector
cable 3 x 0,5 mm
2
 Safety edge
(EN 12978)
- optical type
- resistive type
 Internal photocells
cable 4 x 0,5 mm
2
(RX)
cable 2 x 0,5 mm
2
(TX)
 External photocells
cable 4 x 0,5 mm
2
(RX)
cable 2 x 0,5 mm
2
(TX)
 Control unit
cable 3 x 1,5 mm
2
PREPARATORY STEPS
The new series of actuadors AXIL, has been devised to serve gates up to 300 Kg with leaf up to 2,8 meters wide.
Before proceeding with the installation, please make sure that your gate opens and closes freely, and that:
• Hinges and pins are in optimum condition and properly greased.
• No obstacles are within the moving area.
• There is no friction with the ground or between the leaves.
• Your gate is equipped with a central latch.
