ENGLISH
20

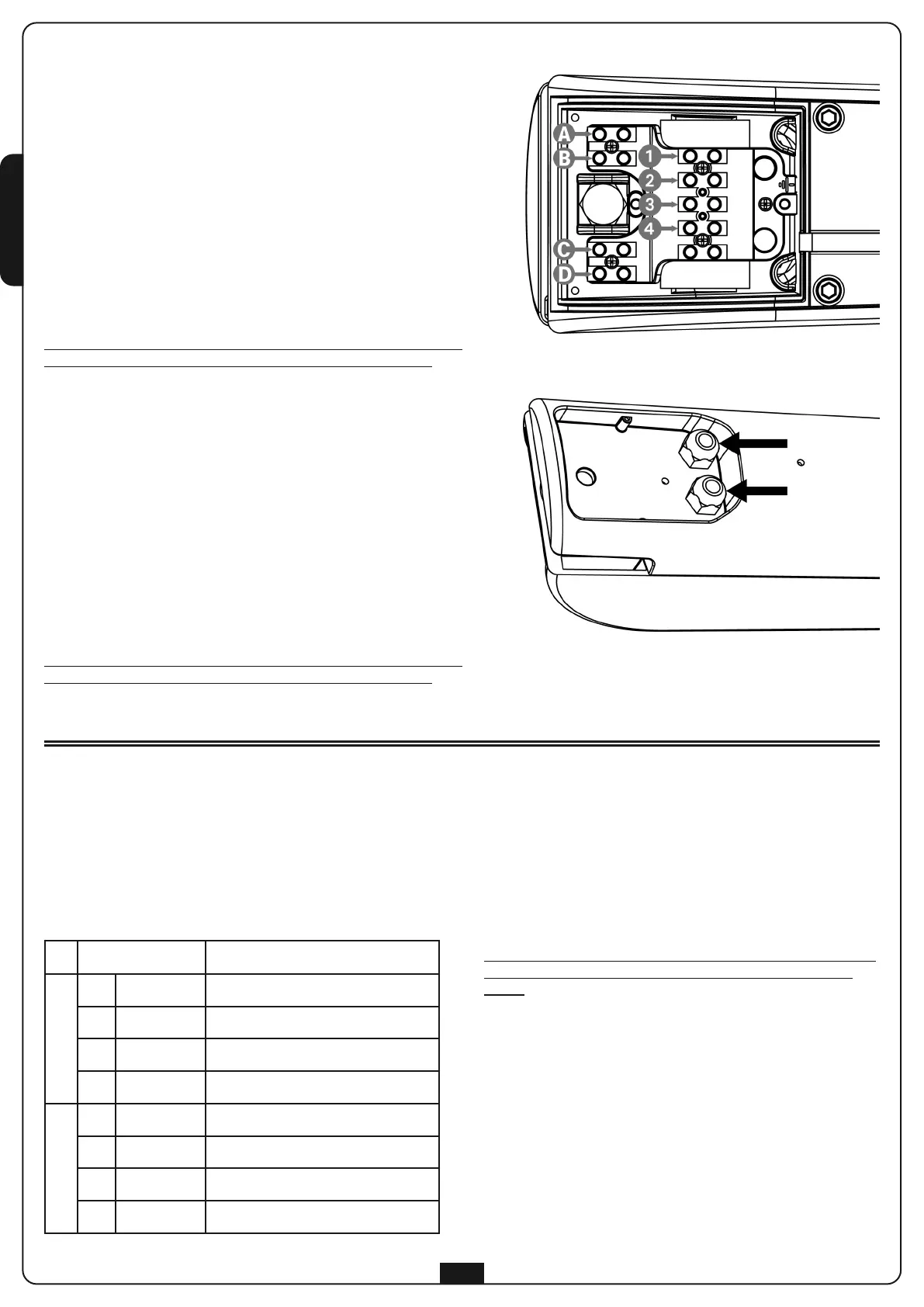

ELECTRICAL CONNECTIONS
Models 230V and 120V
Earth-fault protection
Opening
Common
Closing
m A
TTENTION:
• Always connect the ground cable as stipulated by
enforced norms (EN 60335-1, EN 60204-1).
• For the connection only use cables H05RN-F
model 4G0, 75 or 4G1 with ø external 10 mm maximum
Finish the electrical connections closing the rear space of the
motor with the plastic cover and locking the cable press.
Models 24V
Earth-fault protection
+
-
not used
m ATTENTION:
• Always connect the ground cable as stipulated by
enforced norms (EN 60335-1, EN 60204-1).
• For the connection only use cables H05RN-F model 3G1,5
with ø external 10 mm maximum
Finish the electrical connections closing the rear space of the
motor with the plastic cover and locking the cable press.
ENCODER CONNECTION
m ATTENTION:For encoder operation, when in the
closed position, both gate panels must rest against a
mechanical stop.
Hereafter the directions to follow to connect the cables of
the encoder to the control unit:
m ATTENTION: extensions of the cables must be made
only with a 4x0,22 shielded cable with polyethylene
sheath
m ATTENTION: connect the shielding braith sheath to
the common accessories. Check that the ground of the
power supply of the accessories is connected to the
common accessories.
Finish the electrical connections closing the rear space of
the motor with the plastic cover and locking the cable
press.
ENCODER cable CONTROL UNIT
M
O
T
O
R
1
RED + 24 Vdc
BLACK COM (-)
BLUE FCA2
WHITE FCC2
M
O
T
O
R
2
RED + 24 Vdc
BLACK COM (-)
BLUE FCA1
WHITE FCC1
