VAC D500 - Mounting on Control Valves; Rotary Actuator Mounting Methods

21
Mounting on control valves
M10128-01
1
2
3
4
1
1 Washers
2 Screws
3 O-ring
4 Lever

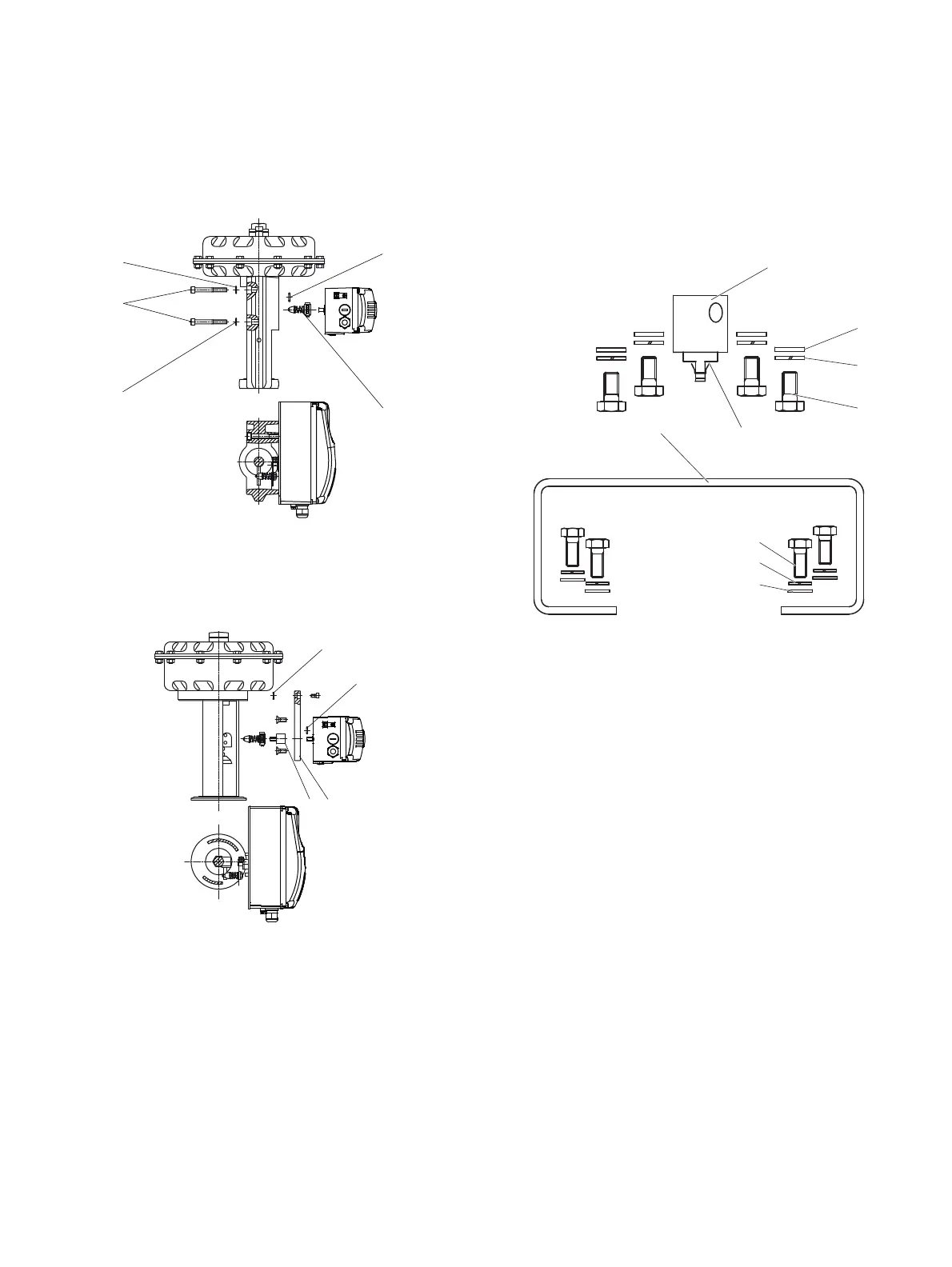

Figure 14: Integral mounting on control valves
M10129-01
1
23
1
1 O-ring
2 Adapter plate
3 Adapter
Figure 15: Integral mounting on control valves with adapter plate
Mounting on rotary actuator
For mounting on part-turn actuators in accordance with
VDI / VDE 3845, the following attachment kit is available:
M10130-01
1
2
3
4
5
6
7
8
9
Figure 16: Components of attachment kit
• Adapter
1 with spring 5
•
four M6 screws each
4, spring washers 3 and washers 2
to fasten the
attachment bracket 6 to the
positioner
•
four M5 screws
7, Spring washers 8 and washers 9 to
fasten t
he attachment bracket to the actuat
or
Required tools:
•
Wrench, size 8
/ 10
•
Allen key, size 3
