Vacon 100 User Manual

Ethernet installation vacon • 9
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
3

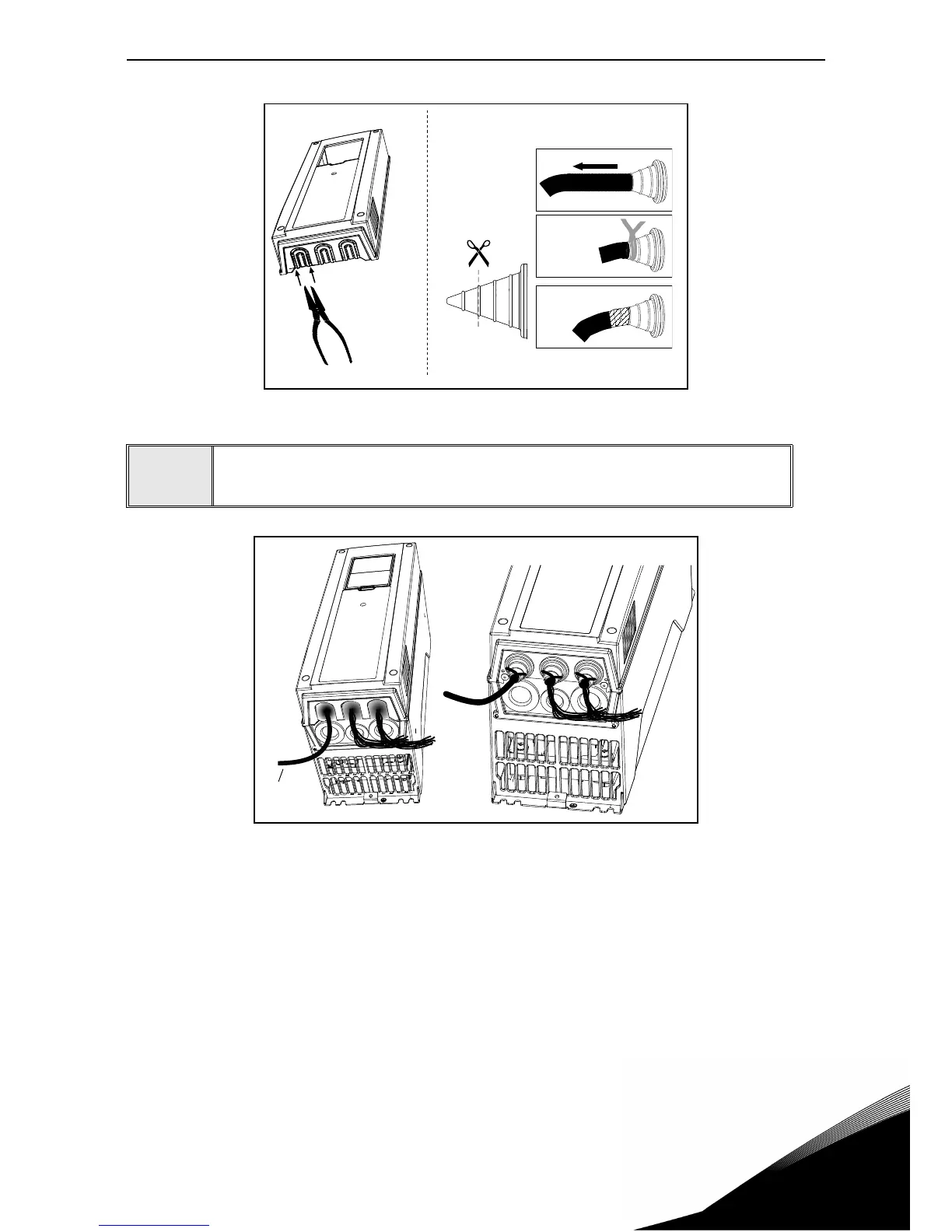

Figure 3. Leading the cables, left: IP21, right: IP54
Figure 4.
5
Remount the AC drive cover. NOTE: When planning the cable runs, remember to
keep the distance between the Ethernet cable and the motor cable at a minimum
of 30 cm.
9068.emf
9056.emf
Ethernet
cable

Vacon 100 Specifications

General

Product type	AC Drive
Enclosure class	IP20
EMC filter	Built-in
Power	0.25 kW - 5.5 kW
Cooling method	Fan
Braking chopper	Optional
