Vacon 100 User Manual

Ethernet installation vacon • 7
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
3
3. ETHERNET INSTALLATION
Figure 1.
1

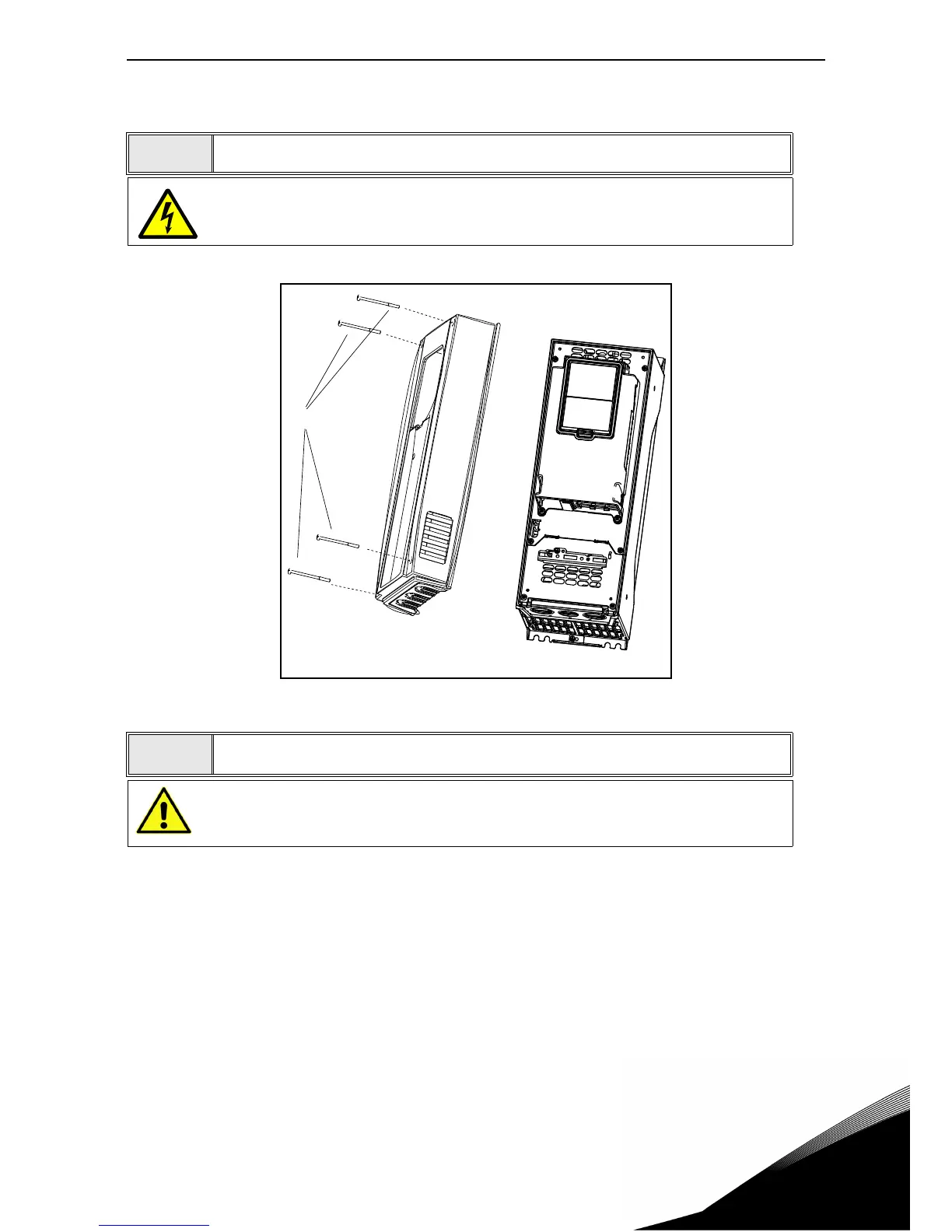

Open the cover of the AC drive.
The relay outputs and other I/O-terminals may have a dangerous control voltage
present even when Vacon 100 is disconnected from mains.
2
Locate the components that you will need on the AC drive to connect and run the
Ethernet cables.
Be sure not to plug the Ethernet cable to the terminal under the keypad! This
might harm your personal computer.
®
M4x55
9174.emf
13006.emf

Vacon 100 Specifications

General

Product type	AC Drive
Enclosure class	IP20
EMC filter	Built-in
Power	0.25 kW - 5.5 kW
Cooling method	Fan
Braking chopper	Optional
