CABLING AND CONNECTIONS vacon • 33
24-hour support +358 (0)201 212 575 • Email: vacon@vacon.com
6

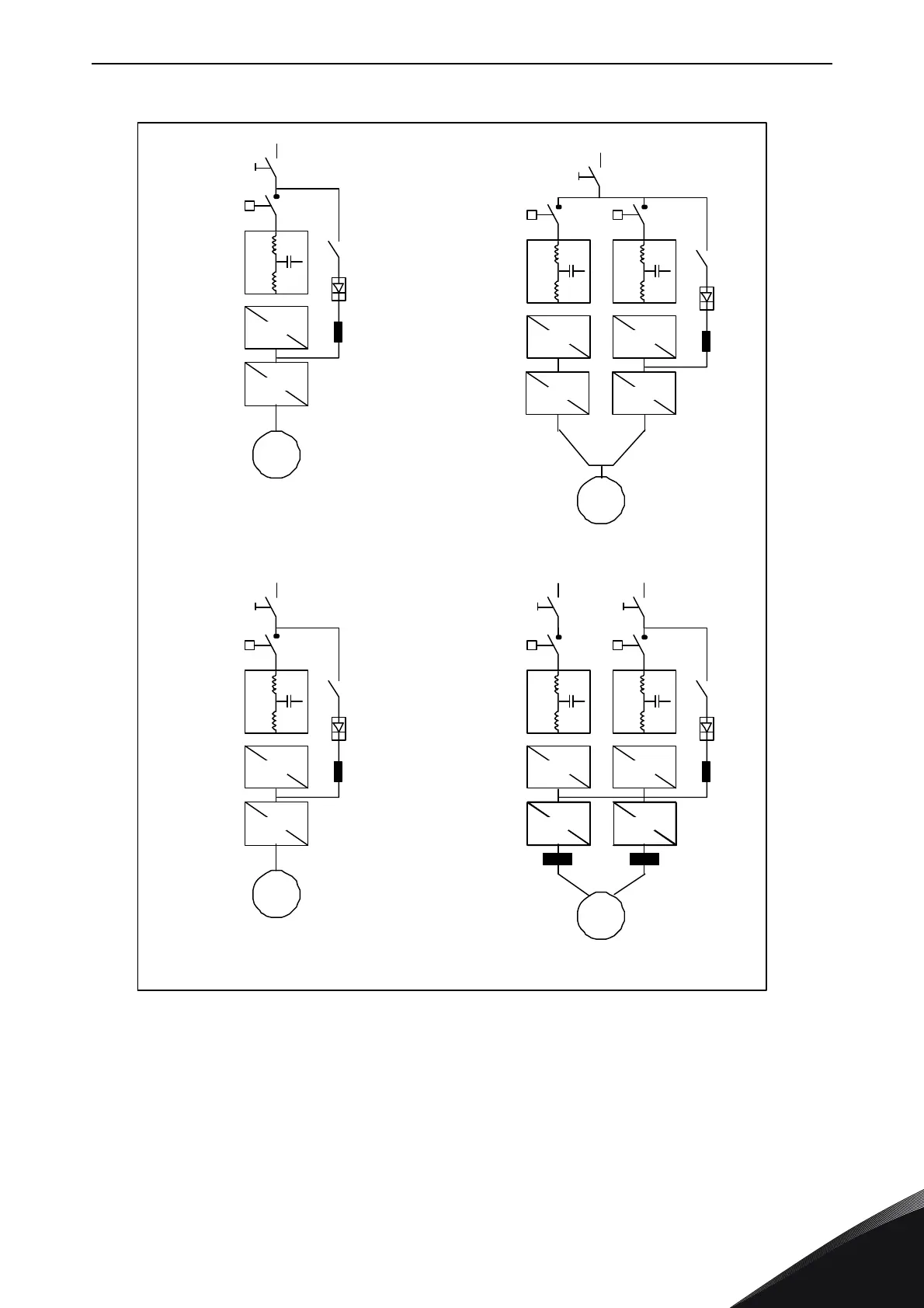

Figure 10. Topology of mechanical sizes NXC low-harmonic drives AF9 – AF14
NOTE! Some options affect the wiring direction and principle for power cables; always check
delivery specific documentation for exact information.
M
INU
AFE
Single
input
Single
output
AF9-10
INU
AFE
Single
input
Single
output
AF12
INU
AFE
M
M
INU
AFE
Single
input
Single
output
AF13
INU
AFE
Double
input
Double
output
AF14
INU
AFE
M
du/dt du/dt
11491_uk
Note!
Min cable
length 5m**
** 5 m is stated for matched power units only. For unmatched power units, a min of 40 m of cable
length is required from each power module if du/dt or sine filters are not used
*** Du/dt filters are integrated by default in all NXC FR14 sizes
***
