5. MOUNTING
5.1 Dimensions
The table below shows the dimensional drawing of the basic cabinet. It is allowed to install NXC
drives side by side. Please note that certain NXC options will further affect the total width or height
of the cabinet. Always refer to the delivery specific information for the exact dimensions.

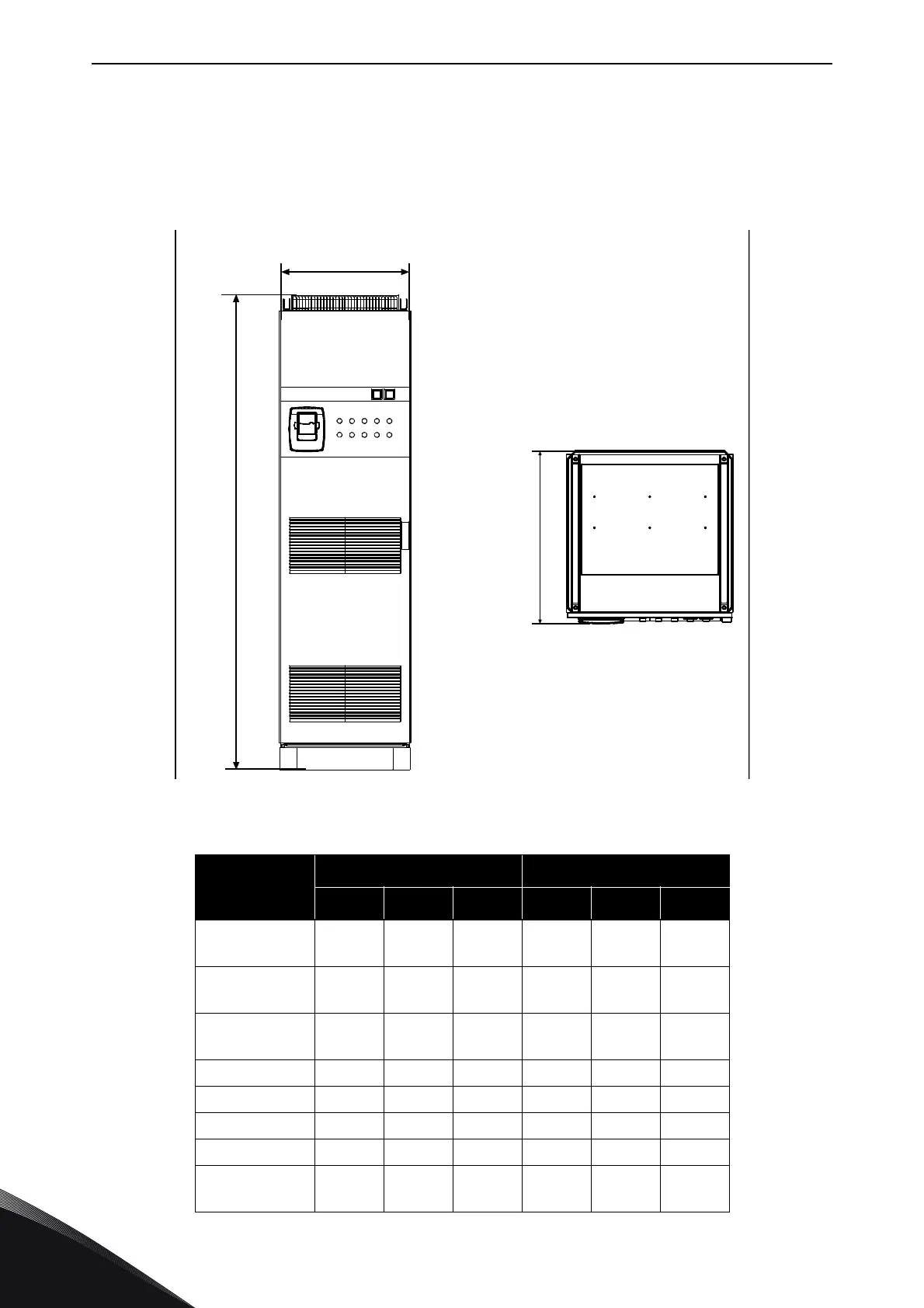

Figure 2. Basic cabinet dimensions
Table 7. NXC 6-pulse drives cabinet dimensions
Type
Dimensions [mm] IP21 Dimensions [mm] IP54
W1 H1 D1 W1 H1 D1
0261—0520 5
0125—0416 6
606** 2275* 605 606** 2400* 605
0650—0730 5
0460—0590 6
806** 2275* 605 806** 2400* 605
0820—1030 5
0650—0820 6
1206** 2275* 605 1206** 2400* 605
1150 5 1406** 2275* 605 1206** 2400* 605
1300—1450 5 1606** 2275* 605 1606 2400 605
0920—1180 6 1406** 2275* 605 1406 2400 605
1500 6 2406 2275* 605 2406** 2400* 605
1770—2150 5
1900—2250 6
2806 2275* 605 2806** 2400* 605
