9.3.7 Expander board menu (M7)
The
Expander board menu makes it possible for the user 1) to see what expander boards are
connected to the control board and 2) to reach and edit the parameters associated with the
expander board.
Enter the following menu level (G#) with the
Menu button right . At this level, you can browse
through slots (see page 69) A to E with the
Browser buttons to see what expander boards are
connected. On the lowermost line of the display you also see the number of parameters associated
with the board. You can view and edit the parameter values in the same way as described in
Chapter 9.3.2. See Table 35 and Figure 68.
Expander board parameters

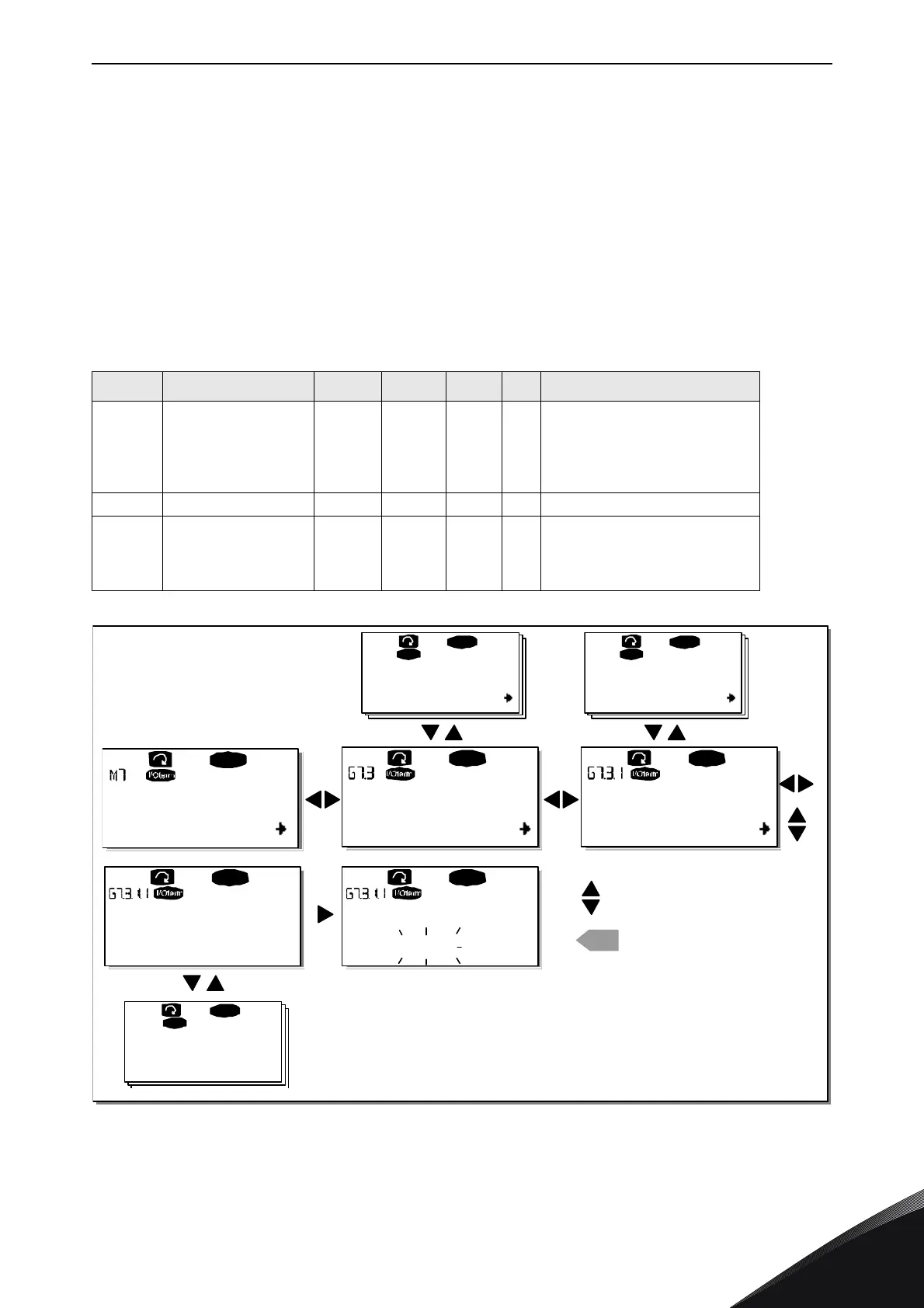

Figure 68. Expander board information menu
Table 35. Expander board parameters (board OPT-A1)
Code Parameter Min Max Default Cust Selections
P7.1.1.1 AI1 mode 1 5 3
1 = 0…20 mA
2 = 4…20 mA
3 = 0…10 V
4 = 2…10 V
5 = –10…+10 V
P7.1.1.2 AI2 mode 1 5 1 See P7.1.1.1
P7.1.1.3 AO1 mode 1 4 1
1 = 0…20 mA
2 = 4…20 mA
3 = 0…10 V
4 = 2…10 V
