vacon • 12 General information
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
1.9 Option board related parameters
Some of the input and output functions of certain option boards are controlled with associated
parameters. The parameters are used to set the signal ranges for analogue inputs and outputs as
well as values for different encoder functions.
The board-related parameters can be edited in the Expander Board Menu (M7) of the control
keypad.
Enter the following menu level (G#) with the Menu button right. At this level, you can browse through
slots A to E with the Browser buttons to see what expander boards are connected. On the lowermost
line of the display you also see the number of parameters associated with the board. Edit the
parameter value as shown below. For more information on the keypad operation, see VACON
®
NXS/
P User Manual. See Figure 9.

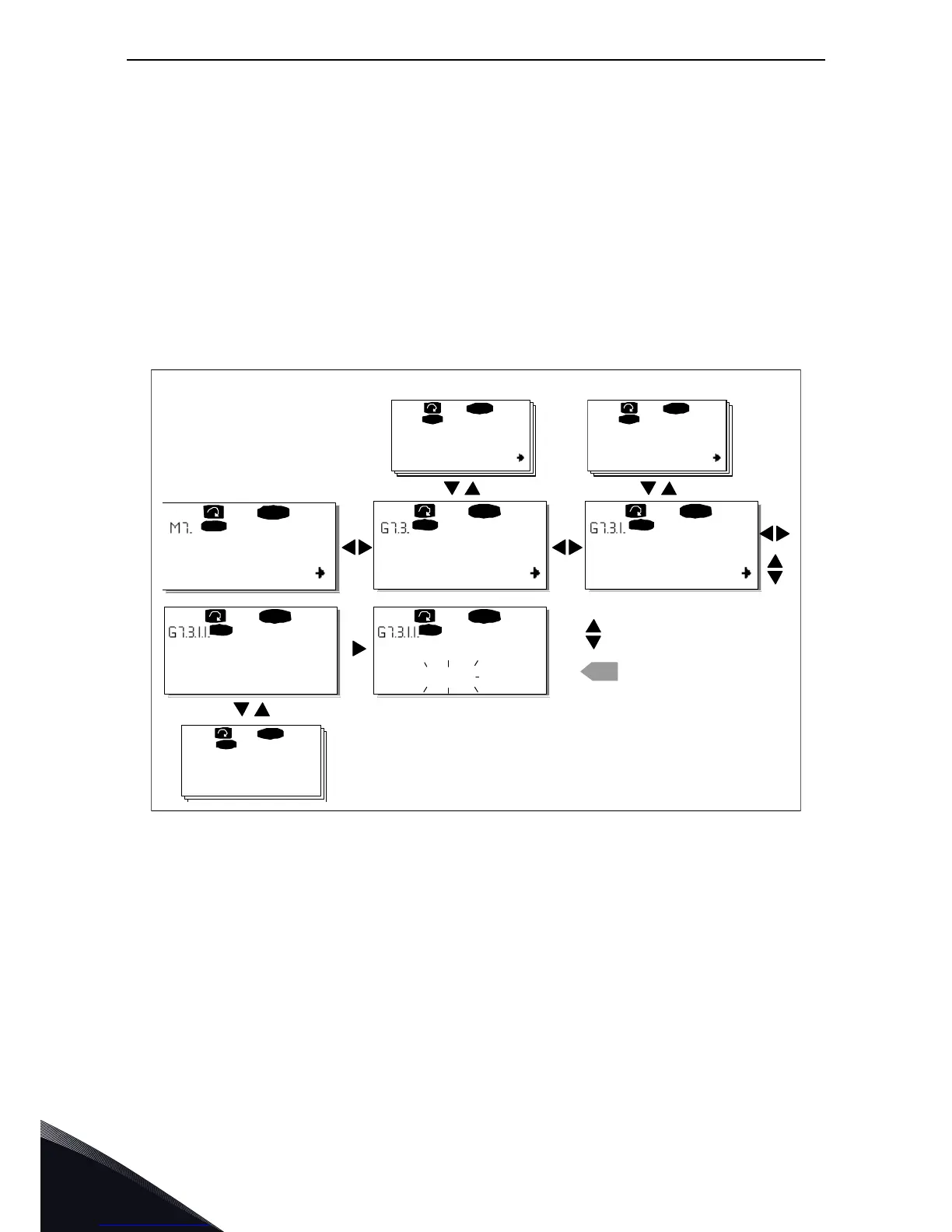

Figure 9. Board parameter value editing
NOTE: Fieldbus boards (OPTC_) also have fieldbus-related parameters. These boards are, however,
described in the separate fieldbus board manuals (see http://drives.danfoss.com/knowledge-
center/technical-documentation/).
