3
vacon • 42 Descriptions of VACON® option boards
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
OPTA8 parameters

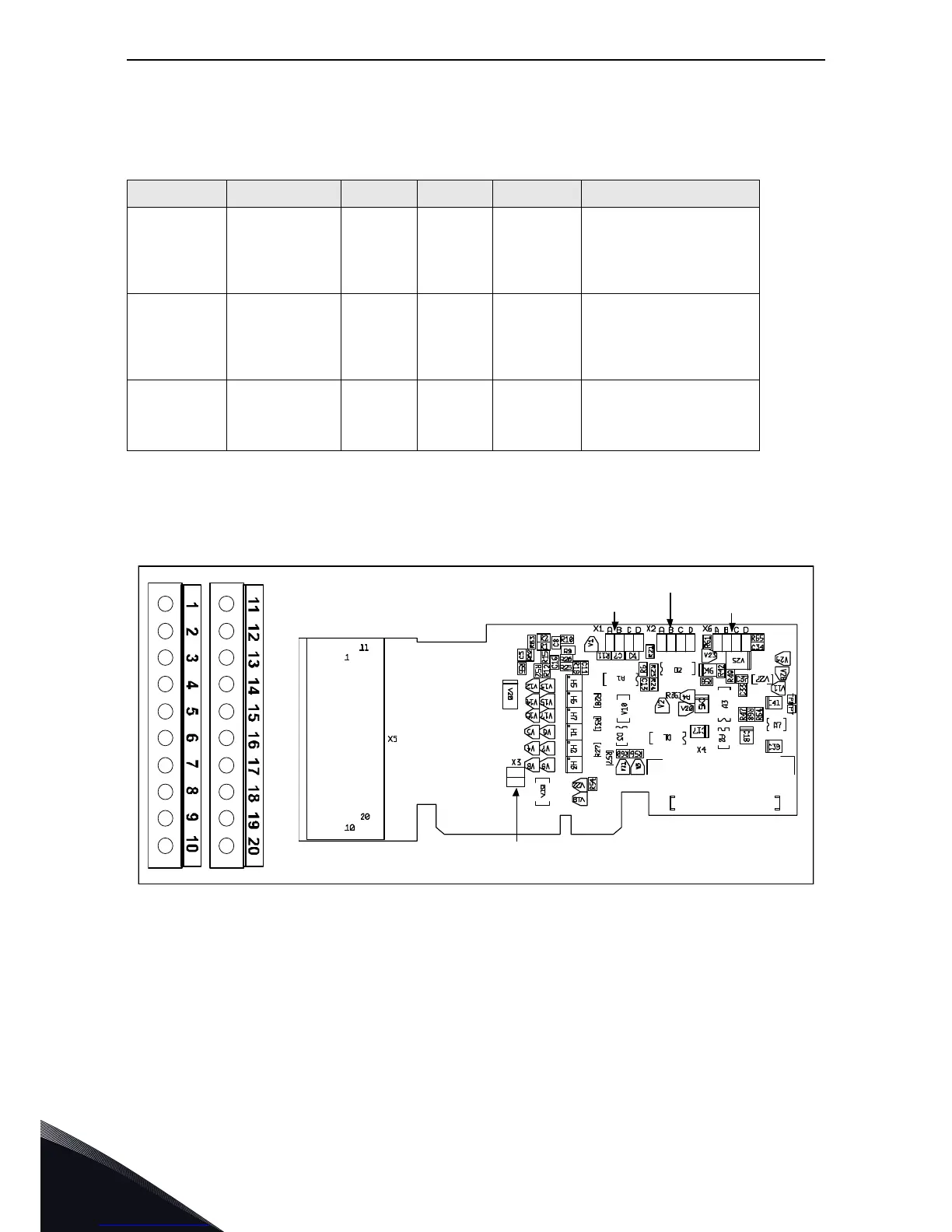

3.1.8 OPTA9
Table 16. OPTA8 board-related parameters
Number Parameter Min Max Default Note
1AI1 mode153
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
2AI2 mode151
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
3AO1 mode14 1
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
Description:
VACON
®
NX basic I/O board similar to the OPTA1 except that the I/O termi-
nals are bigger (for 2.5mm
2
wires; M3 screws).
Allowed slots: A
Type ID: 16697
Terminals: Two terminal blocks; Screw terminals (M3); Coding in terminals #1 and #12.
Jumpers: 4; X1, X2, X3 and X6 (see page 20)
Board parameters: Yes (see page 21)
Jumper X1
Jumper X2
Jumper X6
Jumper X3
7264.emf
