Vacon OPTA2 - Board Slots on the Control Board of VACON NXL

General information vacon • 3
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
1
1.2 Board Slots on the control board of VACON
®
NXL

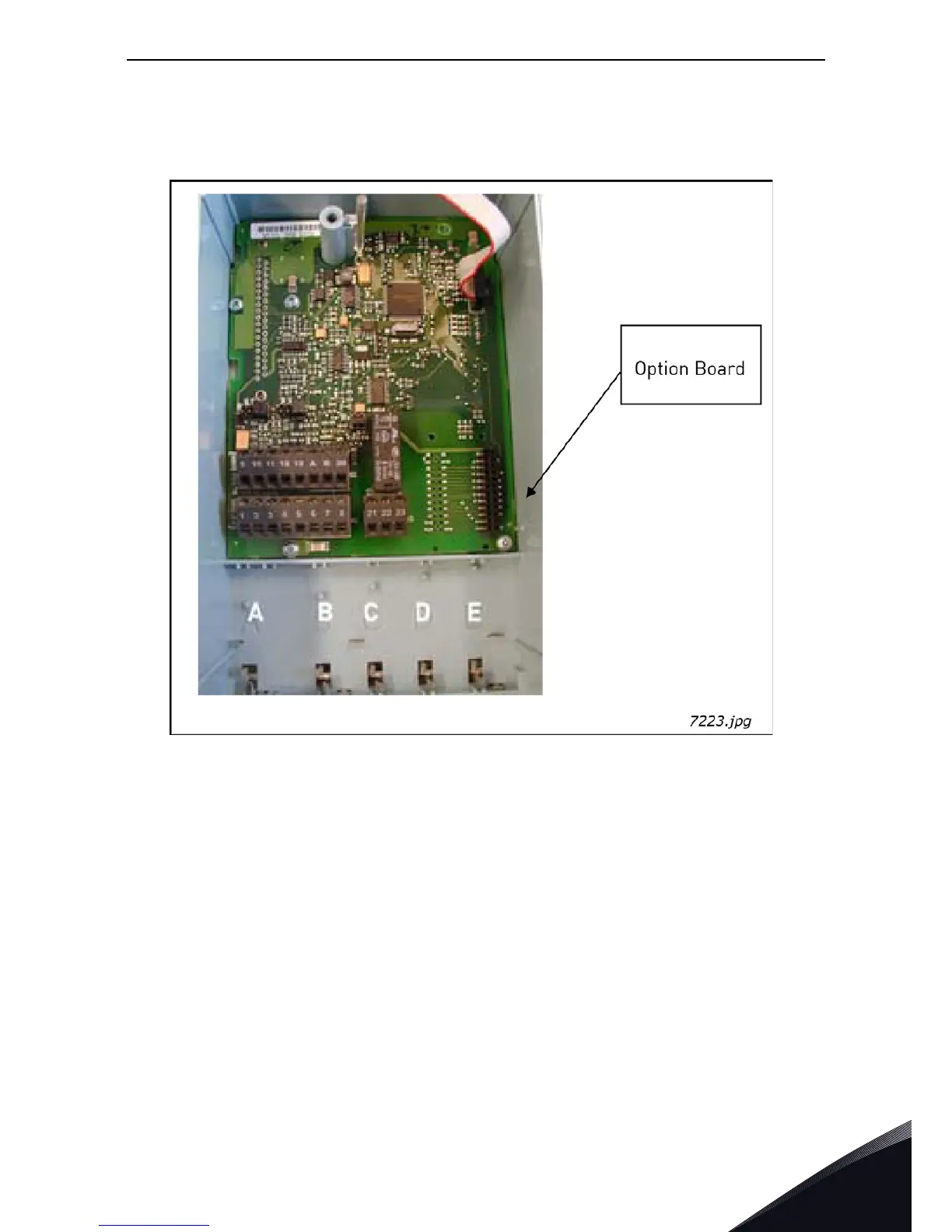

Figure 2. Board slots on control board of VACON
®
NXL.
The control board of NXL includes fixed standard I/O and one place for option boards (see NXL User
Manual of NXL). The most typical option board for NXL, OPT-AA, is specified in the NXL
User Manual.
