Descriptions of VACON® option boards vacon • 49
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3

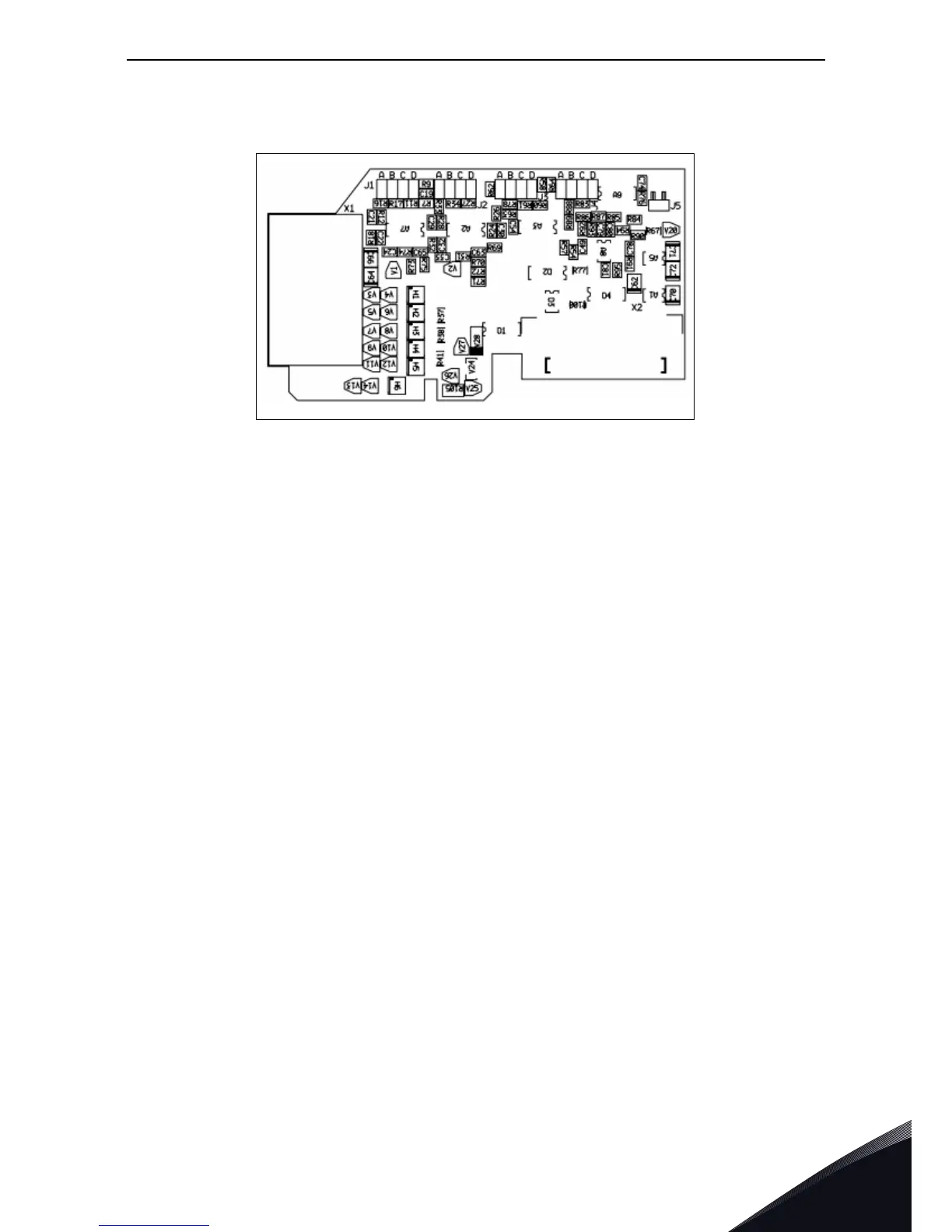

3.1.11 OPTAN
Description:
Standard I/O board for VACON
®
NXP with 6 galvanically isolated digital inputs
and two analogue inputs/outputs. The Analogue channels are programma-
ble:
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
Allowed slots: A
Type ID: 16718
Terminals: Two terminal blocks (coded = mounting of blocks in wrong order prevented,
terminals #1 and #12);
Jumpers: J1, J2, J3, J4
Board parameters: Yes (see page 51)
