Vacon OPTA2 User Manual

Descriptions of VACON® option boards vacon • 21
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
OPTA1 parameters
3.1.2 OPTA2
Table 6. OPTA1 board-related parameters
Number Parameter Min Max Default Note
1 AI1 mode 1 5 3
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
2 AI2 mode 1 5 1
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V
5 = -10...+10V
3AO1 mode 141
1 = 0...20mA
2 = 4...20mA
3 = 0...10V
4 = 2...10V

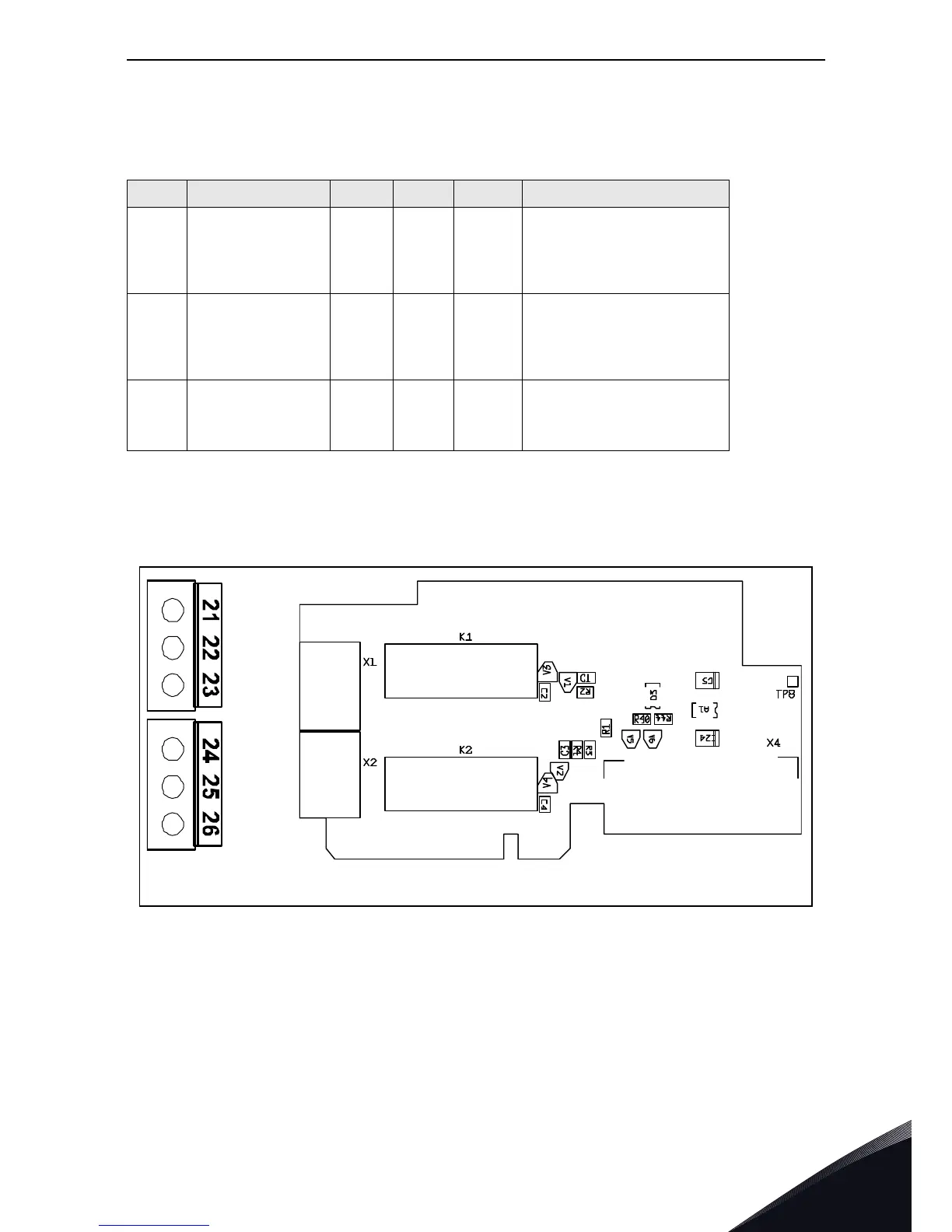

Description:
Standard VACON
®
NX AC drive relay board with two relay outputs
Allowed slots: B
Type ID: 16690
Terminals: Two terminal blocks; Screw terminals (M3); No coding
Jumpers: None
Board parameters: None
7244.emf
