Vaillant ecoTEC plus 412 - Installing the Deflector Set

20 Air/flue pipe installation manual 8000026412_01

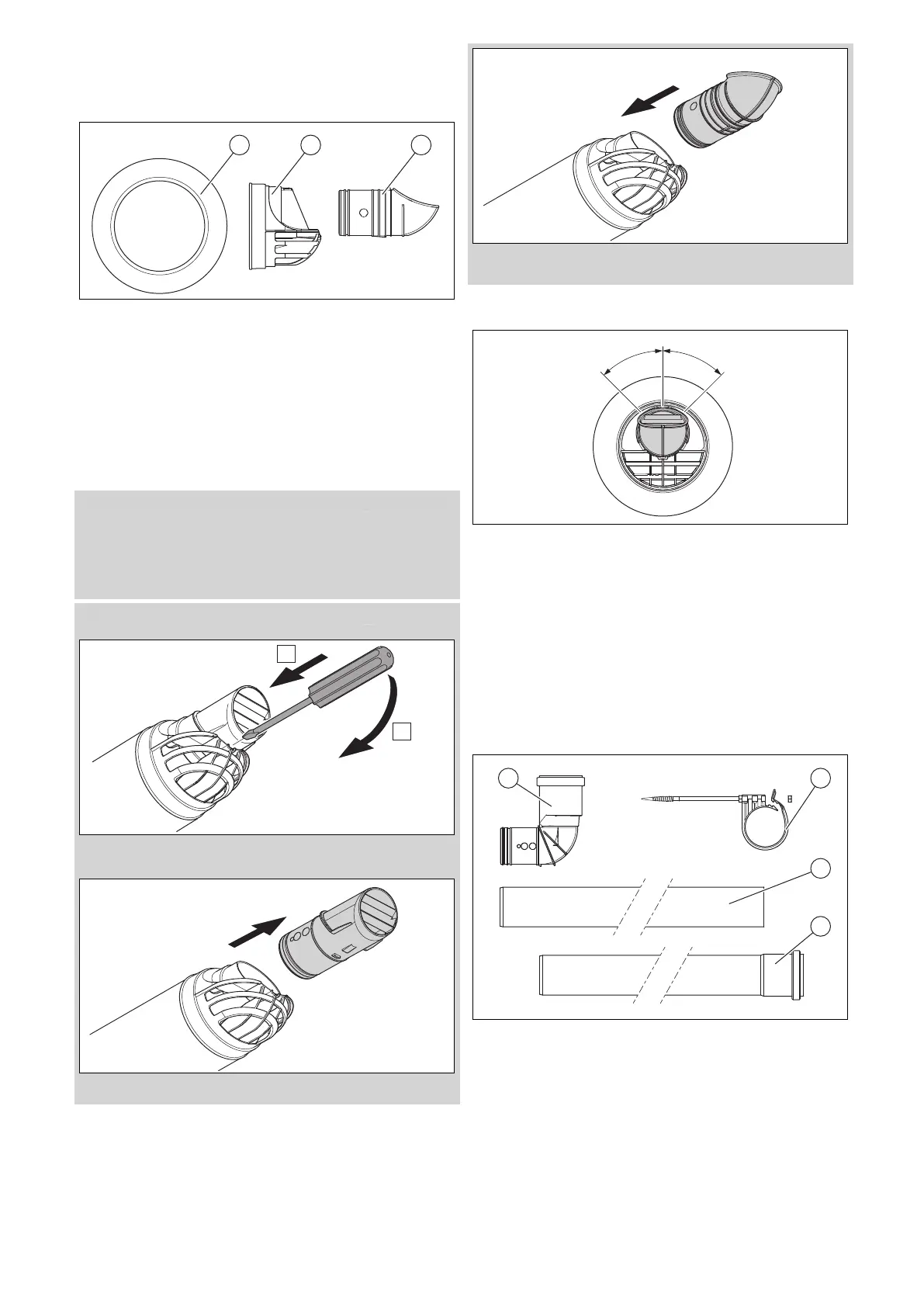

5.6.2 Deflector set – 0020219533 / ...34 (not for
0010035512)
5.6.2.1 Scope of delivery
321
1 Collar
2 Terminal piece
3 Deflector
– Deflector set, DN 60, PP, black (article number
0020219533)
– Deflector set, DN 60, PP, white (article number
0020219534)
5.6.2.2 Installing the deflector set
Condition: Replacing the deflector set (change of colour)
▶ In the event of a change of colour, replace the deflector
set, including the collar (→ Section 5.6.1.2).
▶ Install the deflector, instead of the end pipe, on the ter-
minal piece.
Condition: Replacing the end pipe only
A
B
▶ Release the catch between the terminal piece and the
end pipe.
▶ Pull the end pipe from the terminal piece.
▶ Slide the deflector onto the terminal piece until you hear
the deflector click into place.
5.6.2.3 Adjusting the deflector
45°
45°
▶ Set the terminal to the required position.
– The flue gas stream is directed upwards at an angle
of approx. 45° when the deflector is set in the centre
position.
– If necessary, the deflector terminal can be rotated 45°
anti-clockwise or clockwise. These setting options
mean that the flue system can be further optimised.
5.6.3 Variable terminal set (VTK) – 0020219529
/...30
5.6.3.1 Scope of delivery
1 2
3
4
1 87° elbow (2 x)
2 Pipe clamps (3 x)
3 Extension (1 m) without
sleeve
4 Extension (1 m) with
sleeve
– Variable terminal set, black, article number 0020219529
– Variable terminal set, white, article number 0020219530
