Vaillant ecoTEC plus 412 - Installing the Ridge Tile Terminal

8000026412_01 Air/flue pipe installation manual 41

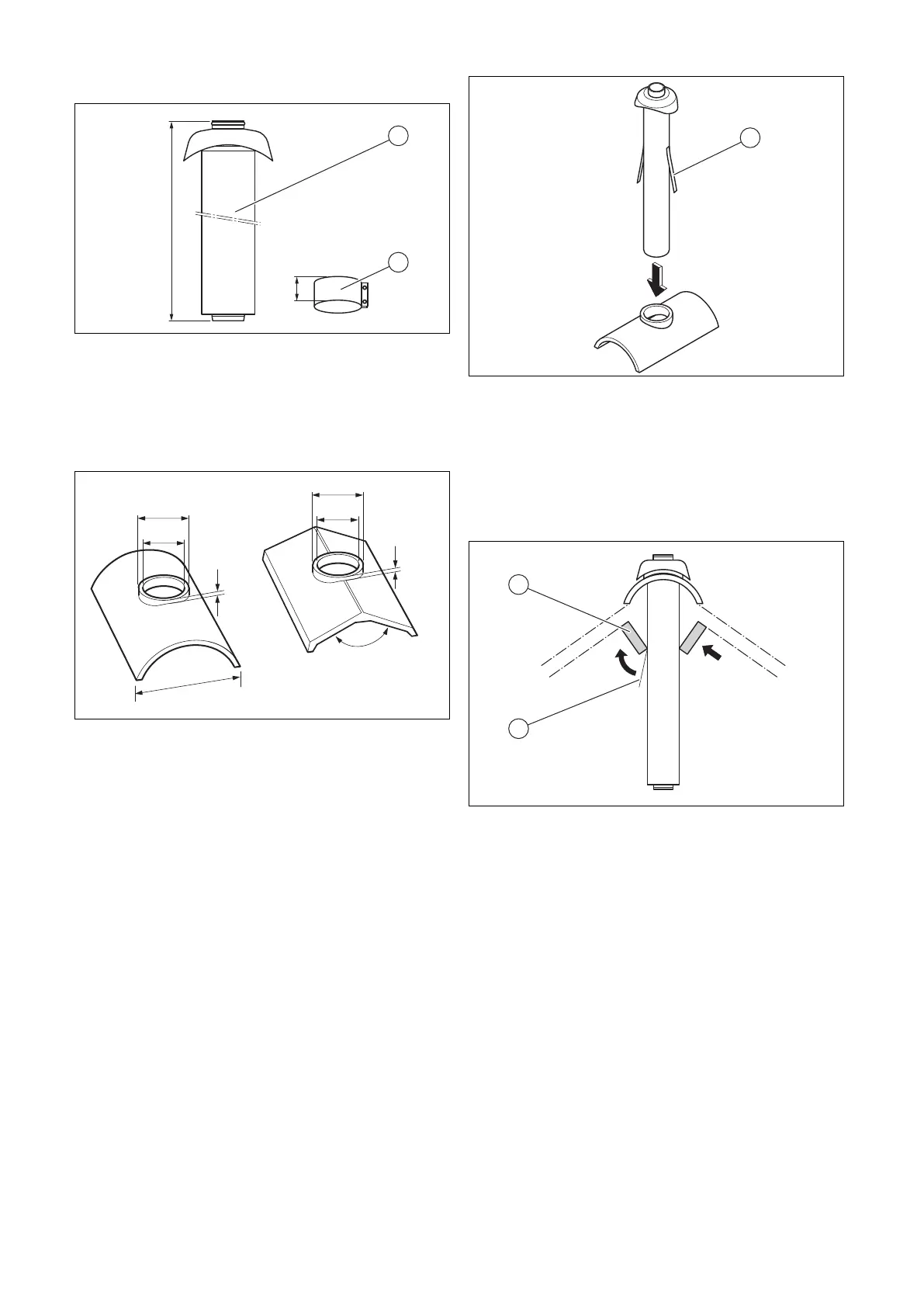

5.16.3 Ridge tiles for roof duct, 60/100 mm diameter
5.16.3.1 Scope of delivery – 303982 (black)
48
760
2
1
1 Ridge tile terminal,
black
2 48 mm air pipe clamp
5.16.3.2 Ridge roof duct
According to the specifications from the tile manufacturer, a
suitable ridge tile must be installed.
130
133
130
103
103
≥25
≥20
≤125°
Suitable ridge tiles are manufactured by:
Repco Roof Tiles Limited
49 Maurice Gaymer Road
Attleborough
Norfolk, NR17 2QZ
enquiries@repcorooftiles.co.uk
Tel: +44 (0) 808 1333001
5.16.3.3 Installing the ridge tile terminal
1
1. Install the ridge tile in accordance with the specifica-
tions from the tile manufacturer.
2. Insert the ridge tile terminal into the ridge tile.
3. Align the ridge tile terminal in such a way that the two
fixing tabs (1) are at a right angle to the course of the
ridging. This ensures that the combustion air can be
extracted from between the ridge tile and the air hood
above the ridge tile.
1
2
4. Bend the two fixing tabs
(2) on one bar (1).
5. Use nails or screws to secure the fixing tabs.
6. Install the boiler (→ Installation instructions for the boil-
er).
7. Install the extensions. (→ Section 5.19.2)
8. Install the elbows (→ Section 5.19.4).
9. Connect all of the pipe joints with air pipe clamps.
(→ Section 5.19.5)
10. Connect the ridge tile terminal and the boiler to exten-
sions and elbows.
