Vaillant ecoTEC plus 412 - Horizontal Wall;Roof Duct - 0010039324 - 0010039327 - 60;100 MM Diameter

28 Air/flue pipe installation manual 8000026412_01

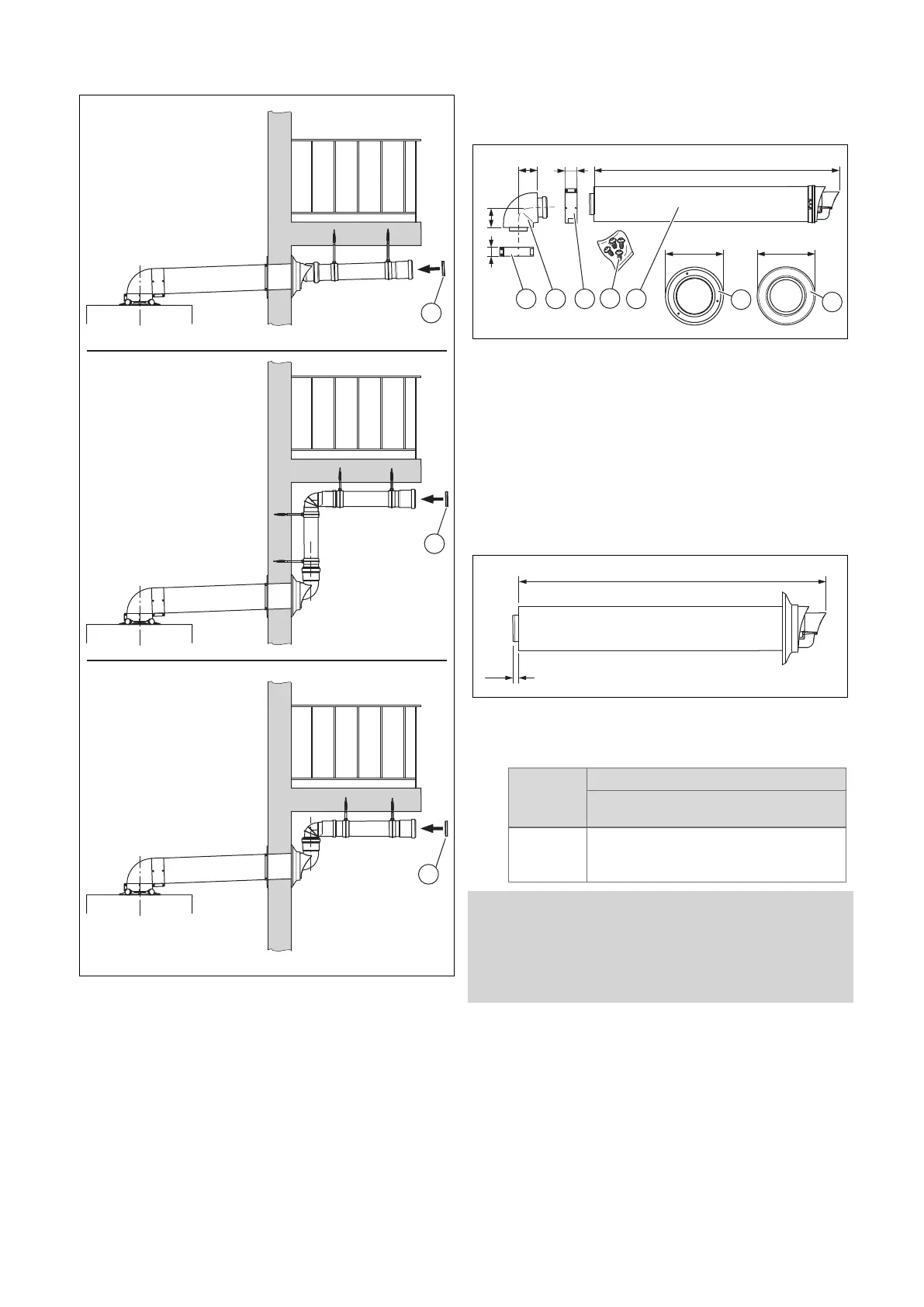

5.9.6 Installing the variable terminal set below the
balcony
1
1
1
1. When installing with an offset: Install the variable ter-
minal (→ Section 5.9.5.3).
2. Secure the extensions with the pipe clamps below the
balcony or on the wall (→ Section 5.9.5.4).
3. Install the bird-guard grille (1) from the elbow of the
VTK set in the sleeve for the last extension.
5.10 Horizontal wall/roof duct – 0010039324 –
0010039327 – 60/100 mm diameter
5.10.1 Scope of delivery
Ø165
65
A
Ø165
65
30
40
1
2
3567
4
A 0010039324: 777 mm
0010039327: 1857 mm
1 Collar (outside) 100 dia-
meter
2 Collar (inside) 100 dia-
meter
3 Horizontal wall duct
4 Locking screws
5 40 mm clamp
6 87° elbow
7 30 mm clamp
5.10.2 Shortening the air/flue pipe
1. Determine the clearance to the external wall.
(→ Section 5.1.2.2)
C
15
2. Shorten the flue pipe and the air pipe by the same
amount when they are assembled.
– Length C ≥ 237 mm
Length Article number
0010039324
0010039327
C Clearance to the outside of external wall A
(→ Section 5.1.2.2)
+ 22 mm
Condition: Additional extensions and elbows required
▶ Install the extensions. (→ Section 5.19.2)
– All of the sleeves for the flue pipe must point towards
the terminal.
▶ Install the elbows (→ Section 5.19.3).
