22 Air/flue pipe installation manual 8000026412_01

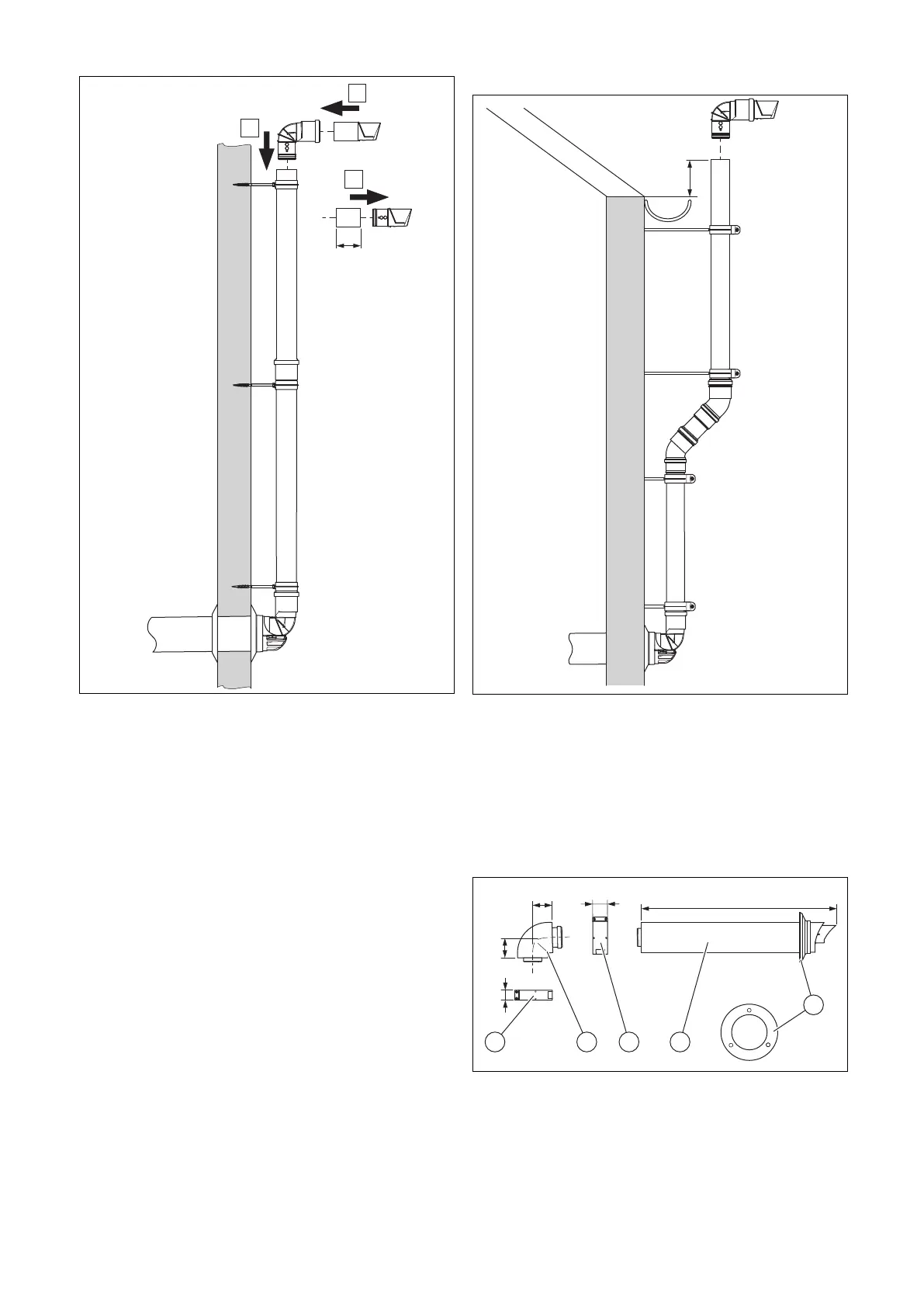

5.6.3.4 Installing the end pipe
A
B
C
50 mm
1. Install the second 87° elbow into the last extension
(step A).
2. To secure the end pipe, place a 50 mm extension
piece over the end pipe (step B).
3. Insert the end pipe securely into the 87° elbow (step
C).
5.6.3.5 Routing extensions for the variable terminal
set around eaves
min. 100 mm
When installing the variable terminal set around eaves, ad-
ditional M8 threaded rods are required for the pipe clamps.
The threaded rods are commercially available.
▶ If required, install additional 45° elbows.
5.7 Horizontal wall/roof duct – 303933 –
0010035512 – diameter 60/100 mm
5.7.1 Scope of delivery
754
48
30
65
65
2
3
5
4
1
1 Collar, 100 diameter (2
pcs)
2 Horizontal wall/roof duct
3 48 mm clamp
4 87° elbow
5 30 mm clamp
