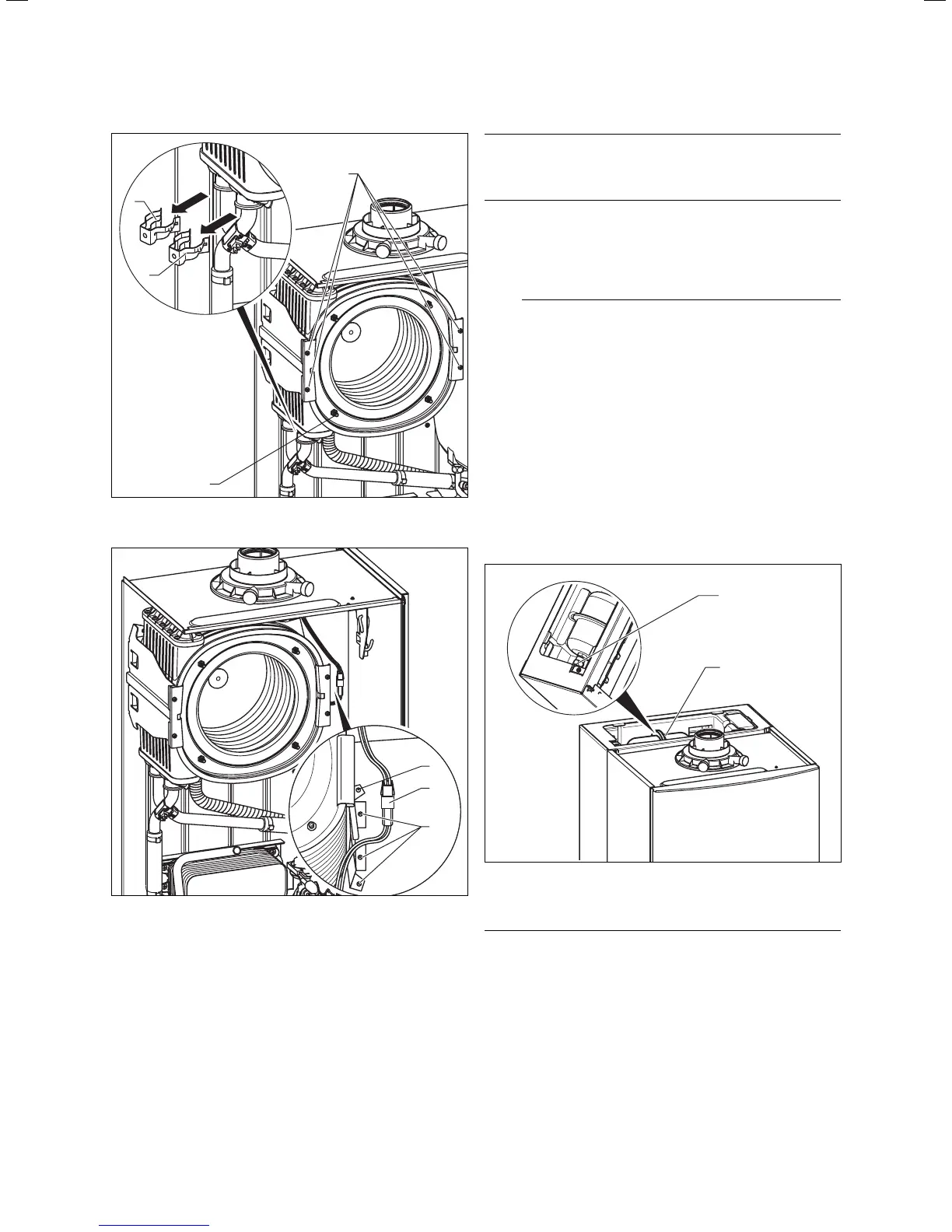

Fig. 9.5 Replacing the primary heat exchanger
3
2
1
Fig. 9.6 Holder for the primary heat-exchanger
• Pull the plug connection (2) of the thermal fuse off
the primary heat-exchanger.
• Unscrew the three screws (3) on the holder of the pri-
mary heat-exchanger.
• Turn the holder to the side around the rivet (1), pull
the primary heat exchanger downwards to the right
and remove it from the appliance.
• Mount the new primary heat exchanger
• Fit a new burner door seal kit.
• Fit the burner module.
• Continue to replace in the reverse order.
h
Note
A new burner door seal kit must be fitted every
time the burner door is removed.
a
Caution!
Danger of damage to the primary heat-ex-
changer!
Do not release or tighten the four screws
(Fig. 9.5, Item 4).
Caution!
Insert the „O“-rings for the flow and return
hoses on the primary heat-exchanger using a
suitable lubricant.
Push the flow and return connections up to the
stop in the primary heat-exchanger and make
sure that the seating of the clamps on the flow
and return hoses are correct (see Fig. 9.5).
• Filling and vent the combi boiler as required.
• After completion of the work check the system for gas
leaks and carry out a function test (see Section 7.8).
9.6 Replacing the expansion vessel of the shift
load storage tank
1
2
Fig. 9.7 Replacing the expansion vessel of the shift load stor-
age tank
d
Danger!
Before replacing components ensure that the
safety instructions from Section 9.1 are ob-
served.
• Disconnect the appliance from the mains as described
in Section 9.1, and close the gas isolator valve in the
gas supply pipe.
• Close the cold water inlet stop valve.
• Open a hot water tap in order to release the pressure
on the water circuit. Then close the tap again.
9 Replacing components
